TECHNICAL SPECIFICATIONS:
CertificationsEN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Input voltagePower over Ethernet (POE): 802.3at (class 4) Max power consumption (worst-case): 20.1W (PoE), 15.9W (DC) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU
Wi-Fi antennaDown-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 3.77 dBi in 2.4GHz and 4x4 MIMO with peak antenna gain of 4.55 dBi in 5GHz (of the effective, combined pattern for both antennas in each band)
Connectivity, standardUltra-fast 802.11ax, 4x4:4

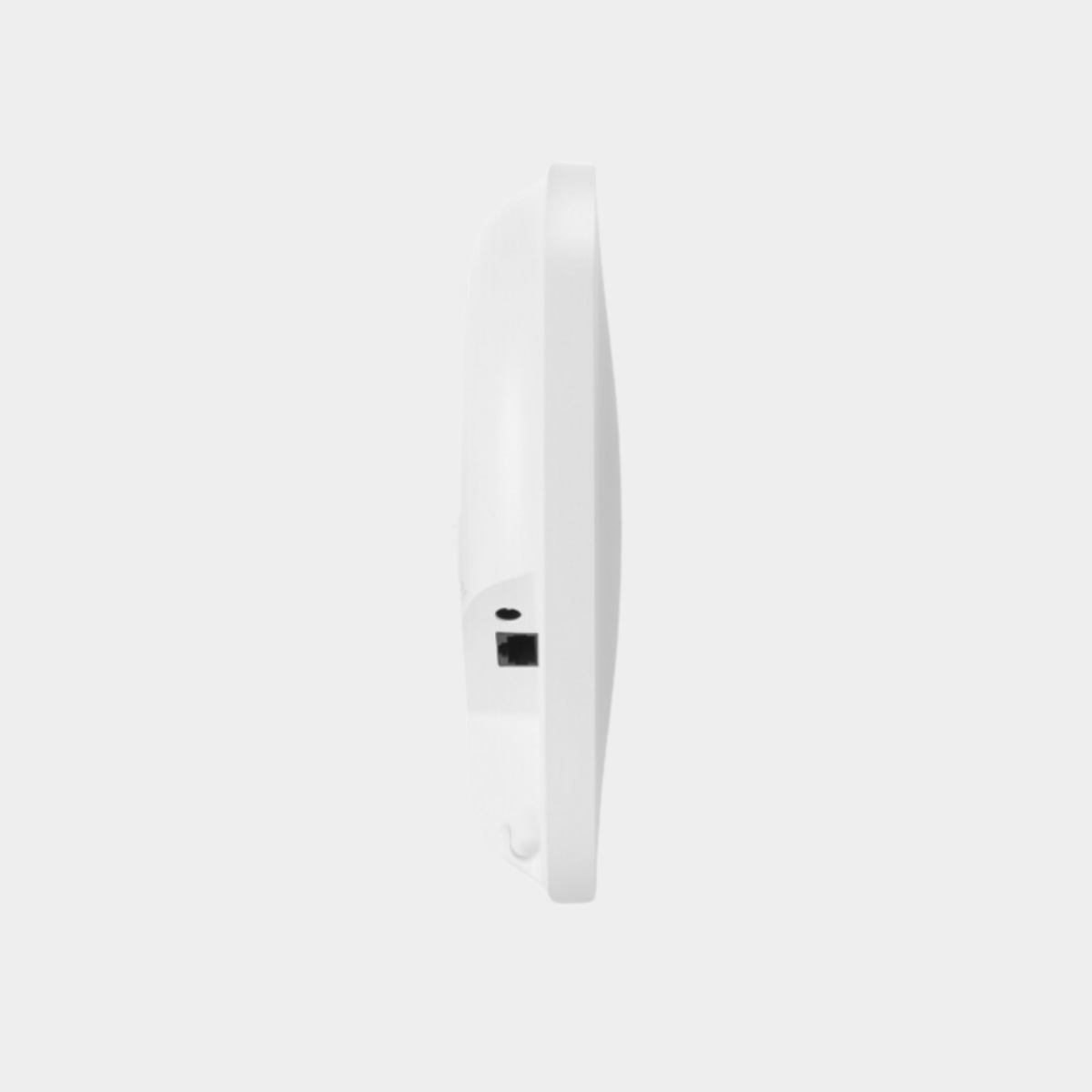

PortsUplink 2.5 Gigabit Ethernet port, with PoE-in support (802.3at) DC power connector (12V) Bluetooth Low Energy (BLE) radio LED status indicators Reset/LED control button Kensington security slot
MountingThe access point ships with a white mount clip that can attach to both walls and ceilings. Mounts that match the design of the APs can be purchased separately
Power consumptionMax power consumption (worst-case): 20.1W (PoE), 15.9W (DC)
Radio coverageDual radio for simultaneous dual-band operation 5 GHz 802.11ax 4x4 MIMO for up to 4.8 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) 2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
Detailed product descriptionPoE Powered with the choice to select an optional power adapter.
Weight1.18 kg (2.6 lb)
Dimensions5.1 x 20.3 cm (2 x 8 x 8 in)
