The MAX HD2 gives you blazing fast connectivity on the road with dual embedded cellular modems and SpeedFusion, plus a built-in 4-port GE switch to reduce clutter in your mobile deployments.

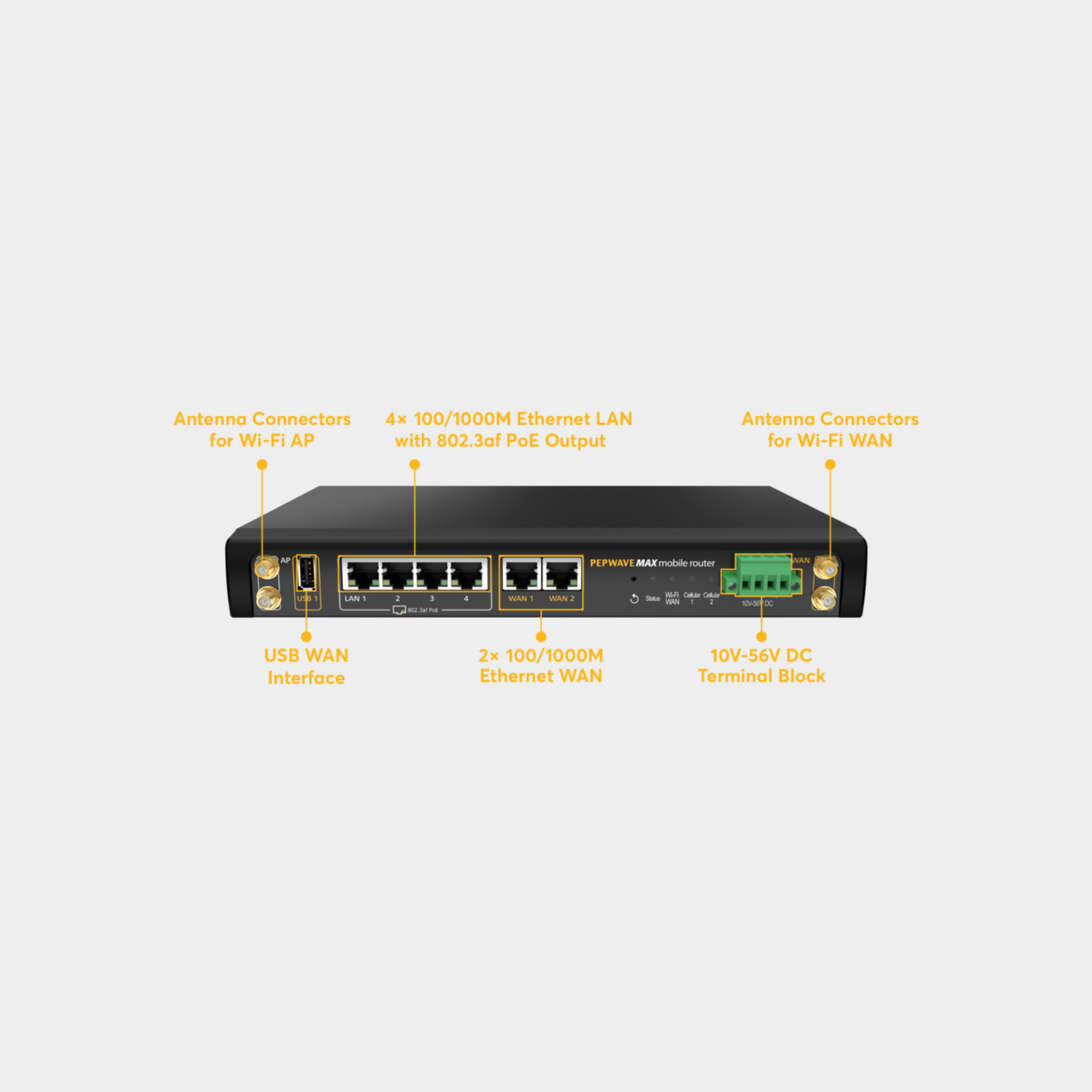

Peplink MAX HD2 LTEA (Global*)Multi-Cellular Bandwidth Bonding Router (6 WAN) SpeedFusion Bandwidth/VPN Bonding1x USB, 2x Ethernet, Wi-Fi WAN1x Embedded 4G LTE-A Pro Modem (Global*) 1x Embedded 4G LTE-A Modem802.11ac Wi-Fi APFull Antenna Set


  • Shock and vibration resistance

  • RF  Port Lightning Immunity
  • Railway Applications

  • Electromagnetic Compatibility

Technical Specification

Product Series Blue Chip
Software Pepwave MAX Firmware
WAN Support for PPPoE, Static IP, DHCP
WAN Link Health Check
Bandwidth Allowance Monitor
USB 3G/4G LTE Modem Support
IPv6 Support
Support for Dynamic DNS services
LAN DHCP Server for LAN Clients
Extended DHCP Option
DHCP Reservation
DNS Proxy for LAN Clients
VLAN on LAN Support
Load Balancing Intelligent Failover
Session Persistence
Per-Service Load Distribution
Multiple Algorithms
Least Used
Lowest Latency
Fastest Response Time
Global Positioning System Integrated GPS
Device Location Map
Location Tracking Data
GPS eXchange Format (GPX)
Up to Seven Days
Fleet Management with InControl 2
Complete VPN Solution
PepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
Site-to-Site VPN
Bandwidth Aggregation
Hot Failover
256-bit AES Encryption
Pre-shared Key Authentication
Dynamic Routing
X.509 Certificate Support
PPTP/L2TP/OpenVPN Server
Local User, LDAP, RADIUS, Active Directory Authentication
IPsec VPN (Network-to-Network)
X.509 Certificate Support
GRE Tunnel (Network-to-Network)
Networking NAT and IP Forwarding
Static Routes
Port Forwarding
Many to One, One to One NAT
NAT Pool
WINS Server
VRRP HA support
Security Stateful Firewall
DoS Prevention
Web Blocking
Advanced QoS User Groups
Bandwidth Reservation
Individual Bandwidth Limit
Application Prioritization
By User Groups
Custom Application QoS
AP Controller AP Controller Support
Wi-Fi Usage Statistics
Captive Portal Support Support for Wired and Wireless LAN Clients
Support RADIUS Authentication
Time and Usage Quotas on Open Access Mode
Built-in Customizable Splash Page
Device Management Web Administrative Interface
Command Line Interface
InControl Cloud Management
Email Notification
Active Client and Session Lists
Bandwidth Usage Statistics
Syslog Service
SNMP v1, v2c and v3
Package Content MAX HD2
12V3A Power Supply (ACW-602)
4x 5dBi Wi-Fi Antennas (ACW-341)
1x GPS Active Antenna (ACW-232)
4x 2dBi 4G LTE Antennas (4G LTE)
4x Magnetic RP-SMA Adaptor (ACW-800)
1 Pair of Mounting Brackets (ACW-721)
