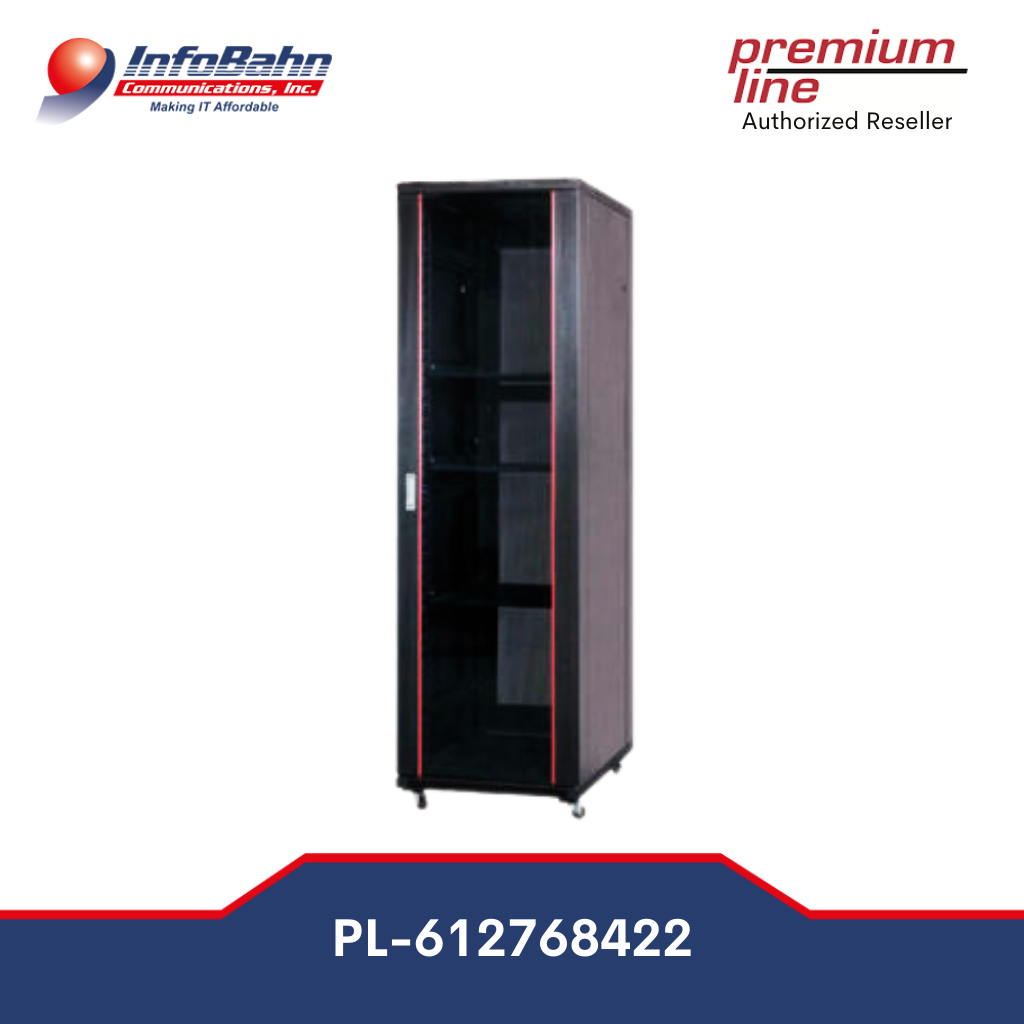

Features

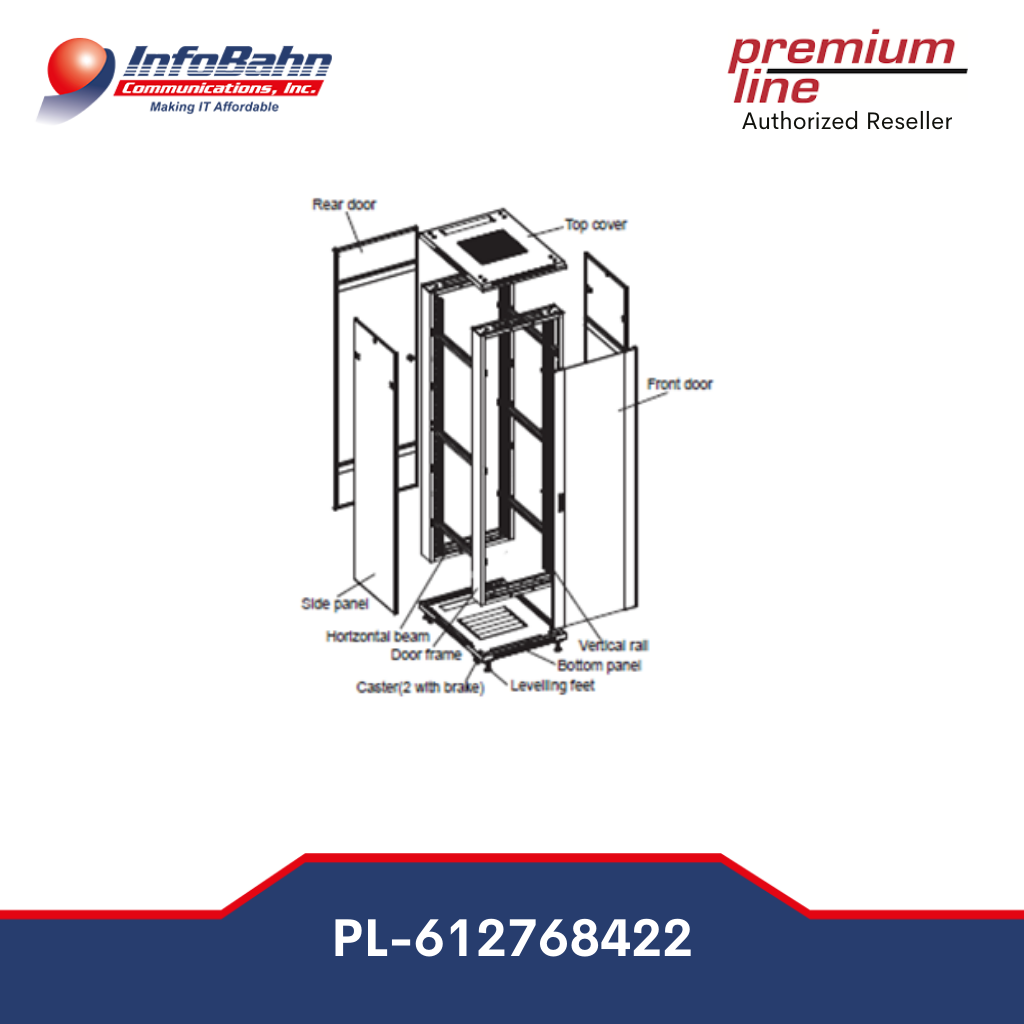

- connected by four corner to ensure the stability
- cable entry from the top cover and bottom panel
- removable side doors for easy installation and maintenance
- 4 pcs of M12 adjustable feet and 4 pcs of 2″ heavy duty castors included
- 40 sets M6 cage nuts included (below 32U 20 sets)
- 1 pair of vertical cable management included for 800mm depth cabinet
- up to 800 kgs static loading capacity with adjustable feet toughened glass or perforated front door is available upon request, with metallic rear door or perforated door, or perforated front door with dual perforated door
- optional Fan unit (4 fans and 2m single inputt power cord for 800mm depth cabinet and above)
- standard “S” type vertical rail (“L” type vertical rail on request)
Standard
- Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491.Part1, Part7, DIN4144
Material
|
|
|
|
|
|
| art NO. | Capacity | Width | Depth | Height | BU Packing Dimension |
| (U) | (mm) | (mm) | (mm) | W*D*H (cm) | |
| 612x6618z | 18 | 600 | 600 | 988 | 615*615*998 |
| 612x6622z | 22 | 600 | 600 | 1166 | 615*615*1176 |
| 612x6627z | 27 | 600 | 600 | 1388 | 615*615*1398 |
| 612x6632z | 32 | 600 | 600 | 1610 | 615*615*1620 |
| 612x6637z | 37 | 600 | 600 | 1833 | 615*615*1843 |
| 612x6642z | 42 | 600 | 600 | 2055 | 615*615*2065 |
| 612x6647z | 47 | 600 | 600 | 2277 | 615*615*2287 |

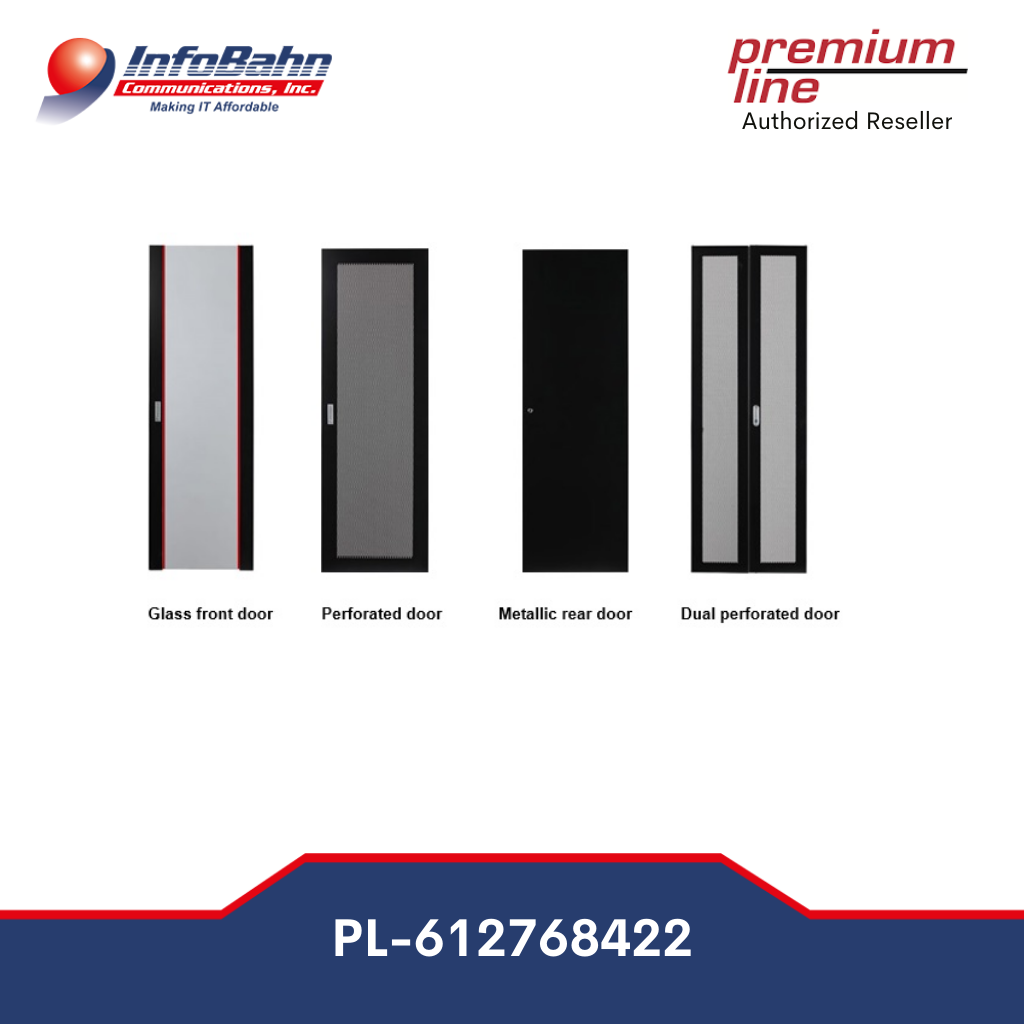

for doors material substitute “x” in PN:
1 = perforated front door + metallic rear door
2 = glass front door + metallic rear door
6 = glass front door + perforated rear door
7 = perforated front door + perforated rear door
9 = dual perforated front door + dual perforated rear door
0 = perforated front door + dual perforated rear door
for color substitute “z” in PN: 2 = black 5 = grey (RAL7035)
Warranty
7-Day Replacement Warranty
The unit is eligible for a one-time, same-item replacement within seven (7) days from the date of receipt or delivery, subject to the following conditions:
✓ The item must be in its original, unused condition.
✓ All original packaging and accessories must be included.
✓ A valid proof of purchase (receipt) is required.
Note: Physical damage or customer-induced damage is not covered.
