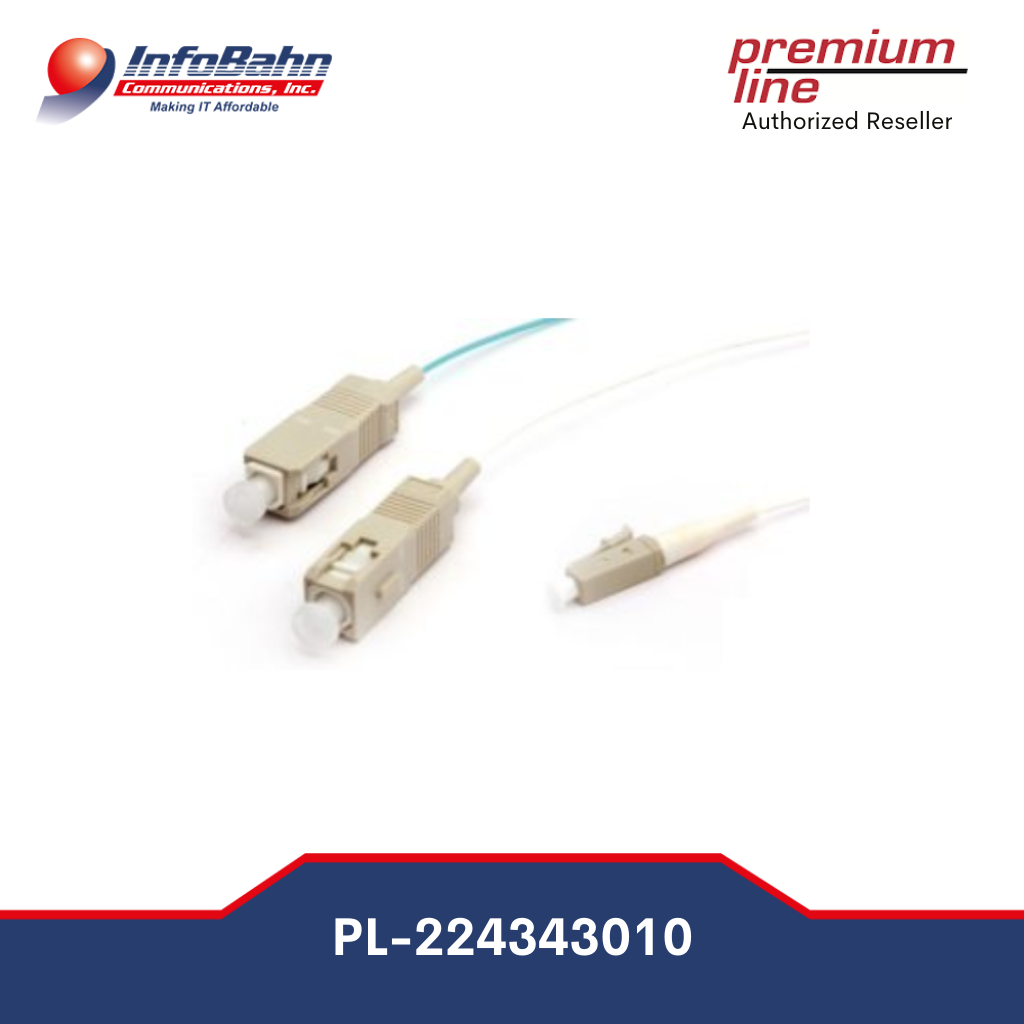

Fiber optic patch cords are suited for equipment jumper cable, cross connects, and work area connections.
All patch cords are 100% factory tested to ensure performance to ANSI/TIA 568-D.3, ISO 11801:2002 and EN 50173-1 standards. With complete connector range of SC, ST, LC, FC, and also the different mode of fiber cables, consists of various combination for all-field applications.
Features
- Meets with TIA/EIA-568-B.3 and ISO/IEC 11801 specifications for insertion loss
- ITU-T G.651 compliant
- Provide total immunity to electrical interference
- Ultra polished connectors
- Low insertion loss, high return loss
- OM1 62.5/125um in white color, OM2 50/125um in orange color, OM3 in aqua, OM4 in purple, OM5 in lime green
- RoHS compliant
Applications
- Telecom network
- CATV
- FTTH
- End equipment
- Local Area Network
- Test equipment
Typical Performance
| Connector Type | ST/UPC | LC/UPC | SC/UPC | FC/UPC | MTRJ/UPC |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥40dB | ≥40dB | ≥40dB | ≥40dB | ≥40dB |
| Interchange Capability (1000 times) | <0.1dB | <0.1dB | <0.1dB | <0.1dB | <0.1dB |
| Impact
1.5mm drop, 8 times |
<0.1dB | <0.1dB | <0.1dB | <0.1dB | <0.1dB |
| Working Temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
Ordering Information

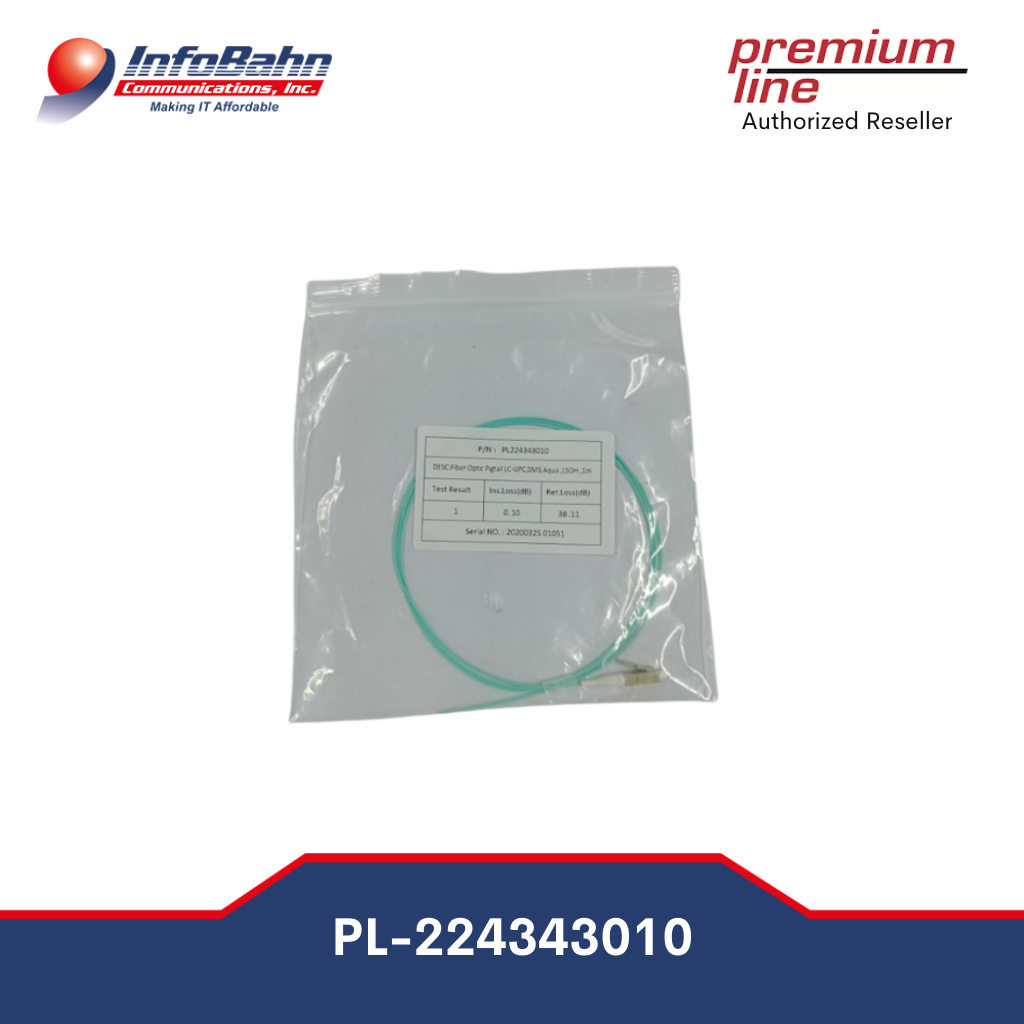

| Part No. | 22uxy3zzz |

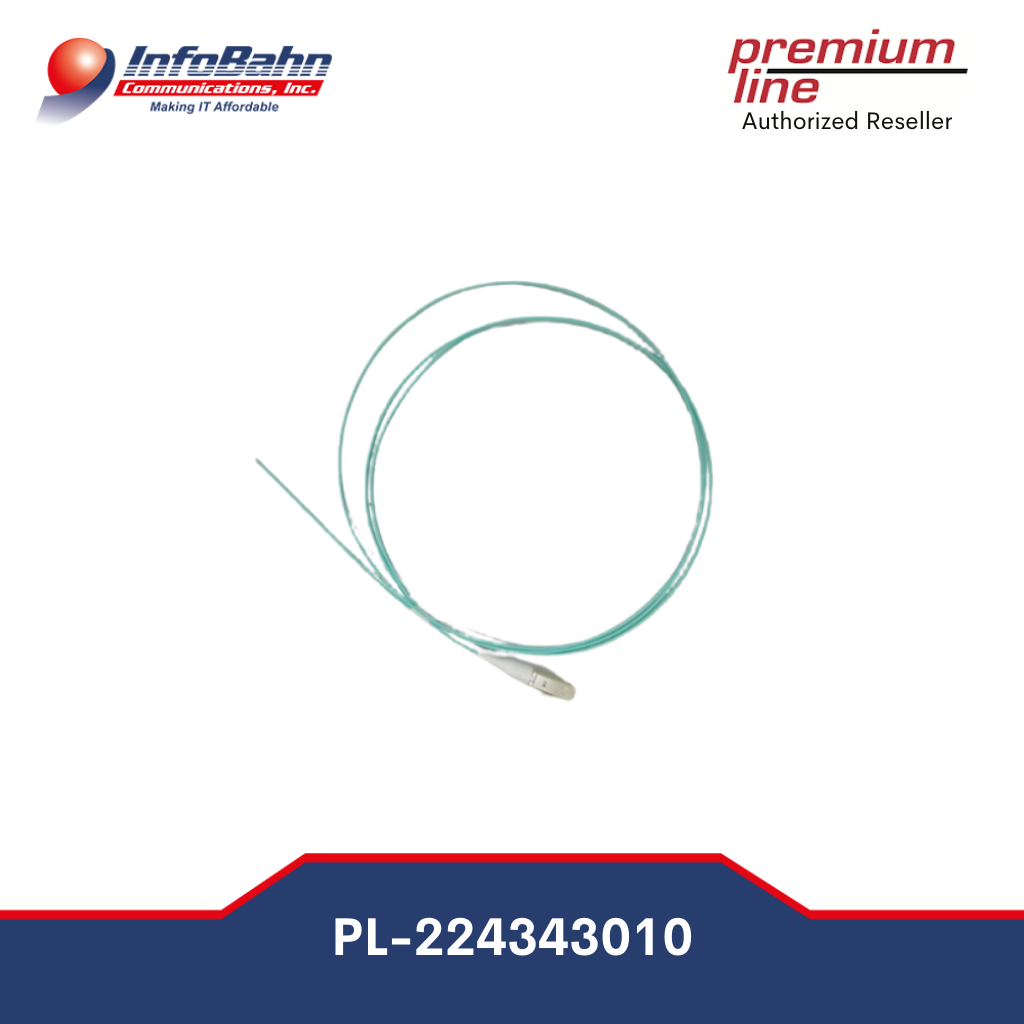

| Description | Premium Line fiber optic pigtail, MM, 900µm, UPC connector |
| u, fiber mode | 1: OM1 62.5/125 2: OM2 50/125um 4: OM3 50/125um 9: OM4 50/125um 8: OM5 50/125um |
| x, O.D & sheath | 1: 0.9mm PVC 3: 0.9mm LSOH |
| y, connector type | 1: SC 2: ST 3: FC 4: LC |
| zzz, length | 010: 1M 020: 2M 030: 3M |
Warranty
7-Day Replacement Warranty
The unit is eligible for a one-time, same-item replacement within seven (7) days from the date of receipt or delivery, subject to the following conditions:
✓ The item must be in its original, unused condition.
✓ All original packaging and accessories must be included.
✓ A valid proof of purchase (receipt) is required.
Note: Physical damage or customer-induced damage is not covered.
