Fiber optic patch cords are suited for equipment jumper cable, cross connects, and work area connections.
All patch cords are 100% factory tested to ensure performance to ANSI/TIA 568-D.3, ISO 11801:2002 and EN 50173-1 standards. With complete connector range of SC, ST, LC, FC, and also the different mode of fiber cables, consists of various combination for all-field applications
FEATURES:
- Meets with TIA/EIA-568-C.3 and ISO/IEC 11801 specifications for insertion loss and return loss
- Environmentally stable in optical performance
- Provide total immunity to electrical interference
- RoHS compliant
APPLICATIONS:
- Telecom network
- CATV
- FTTx
- End equipment
- Local Area Network
- Test equipment
TYPICAL PERFORMANCE:
| Connector Type | ST | LC | SC | FC | |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | |
| Return Loss | UPC | ≥50dB | ≥50dB | ≥50dB | ≥50dB |
| APC | ≥60dB | ≥60dB | ≥60dB | ≥60dB | |
| Interchange capability (1000 times) | <0.1dB | <0.1dB | <0.1dB | <0.1dB | |
| Impact
1.5mm drop, 8 times |
<0.1dB | <0.1dB | <0.1dB | <0.1dB | |
| Working temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | |
ORDERING INFORMATION:
| Part No. | 22vwxyzzz |

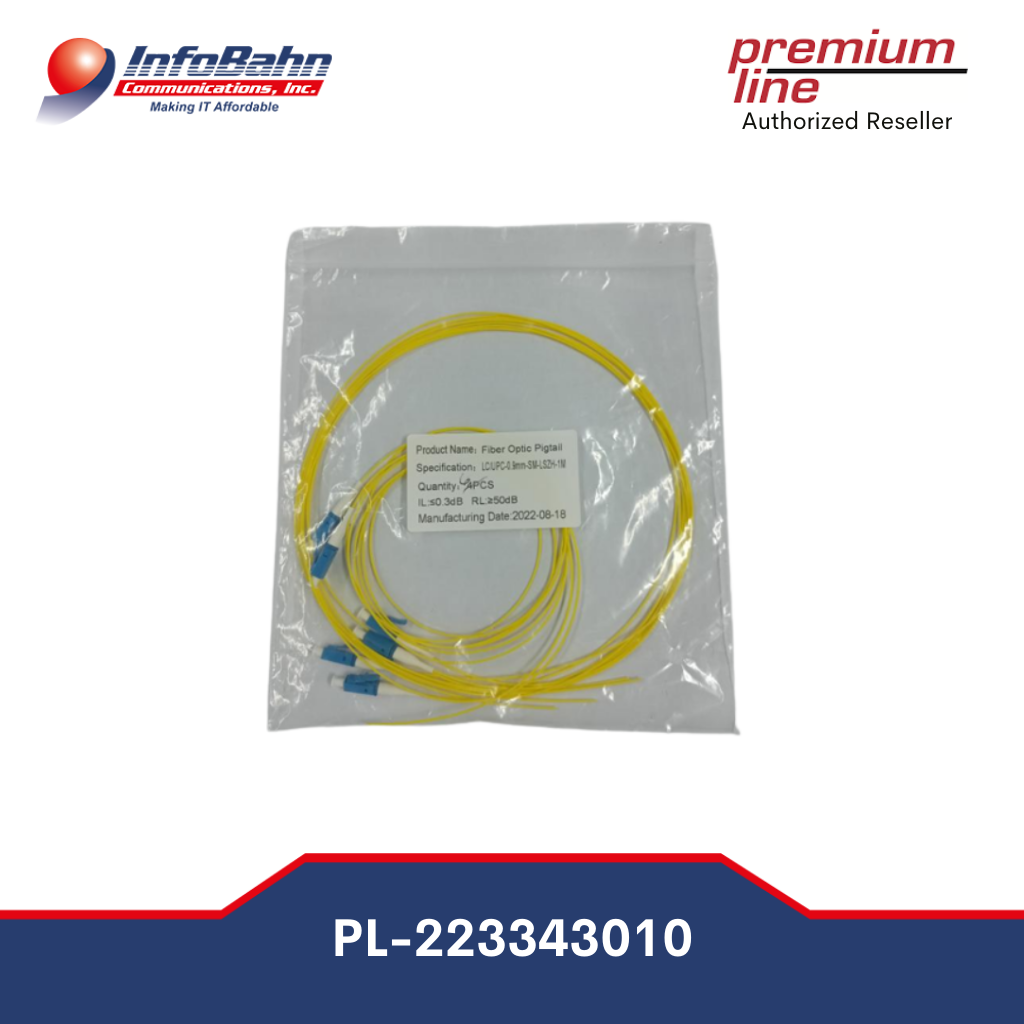

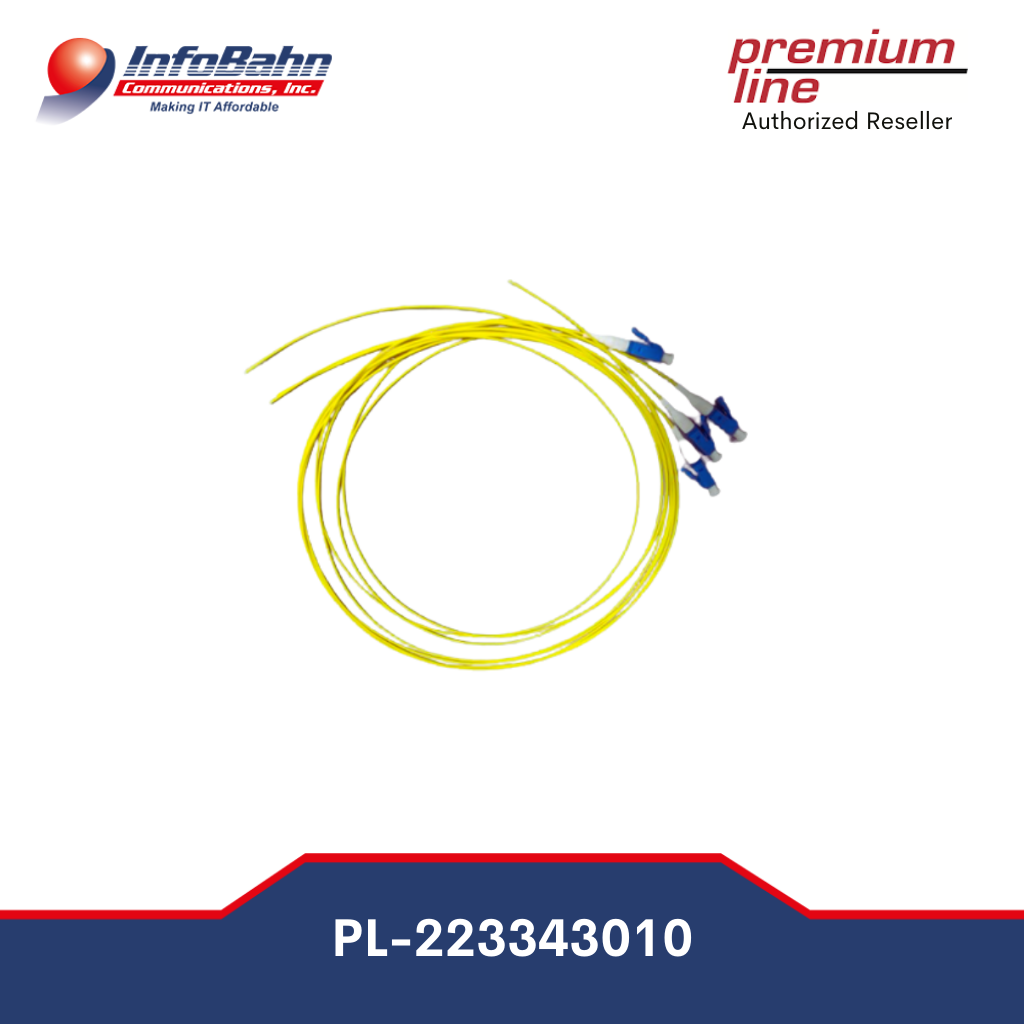

| Description: | Premium Line fiber optical pigtail, SM 9/125um, simplex |
| v, mode | 3: G652D 6: G657A2 |
| w, O.D.& Sheath | 1: 0.9mm PVC 3: 0.9mm LSOH |

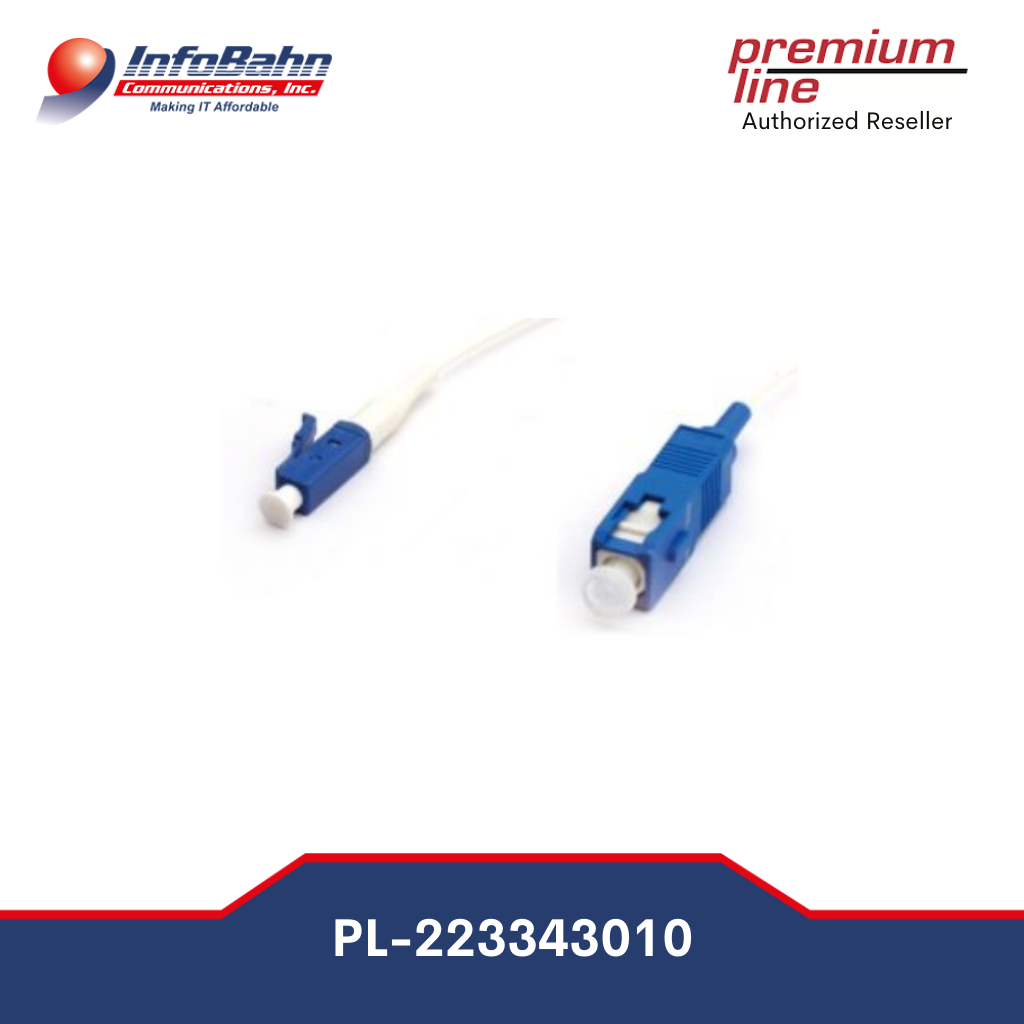

| x, connector type | 1: SC 2: ST 3: FC 4: LC |
| y, mode | 3: UPC 5: APC |
| zzz, length | 010: 1M 020: 2M 030: 3M |
Warranty
7-Day Replacement Warranty
The unit is eligible for a one-time, same-item replacement within seven (7) days from the date of receipt or delivery, subject to the following conditions:
✓ The item must be in its original, unused condition.
✓ All original packaging and accessories must be included.
✓ A valid proof of purchase (receipt) is required.
Note: Physical damage or customer-induced damage is not covered.
