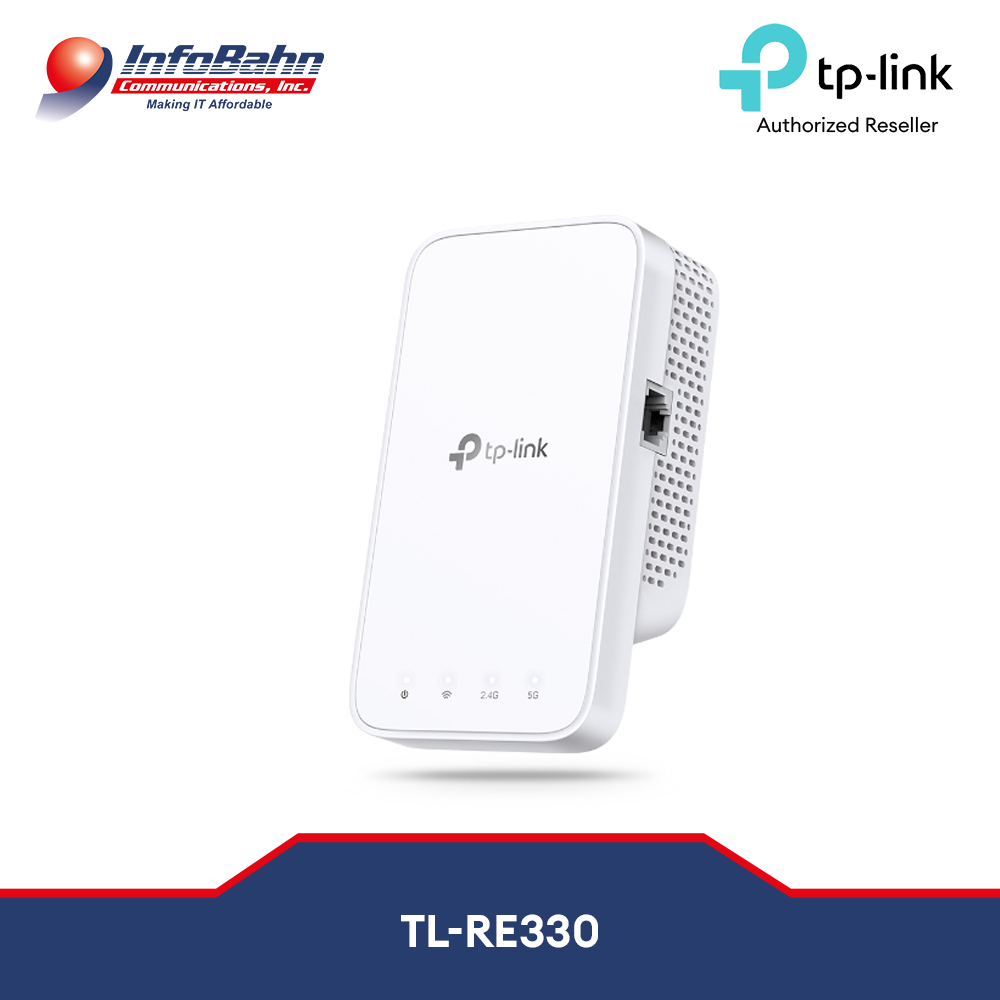

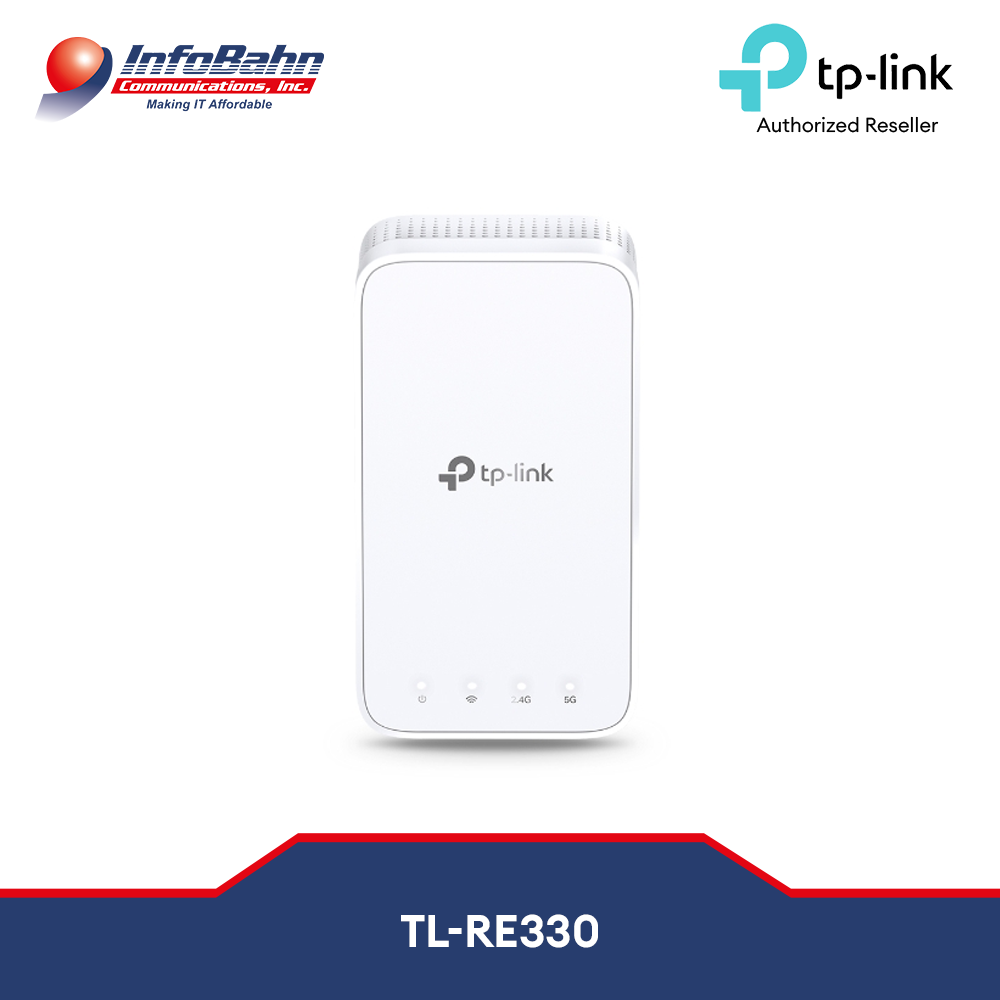

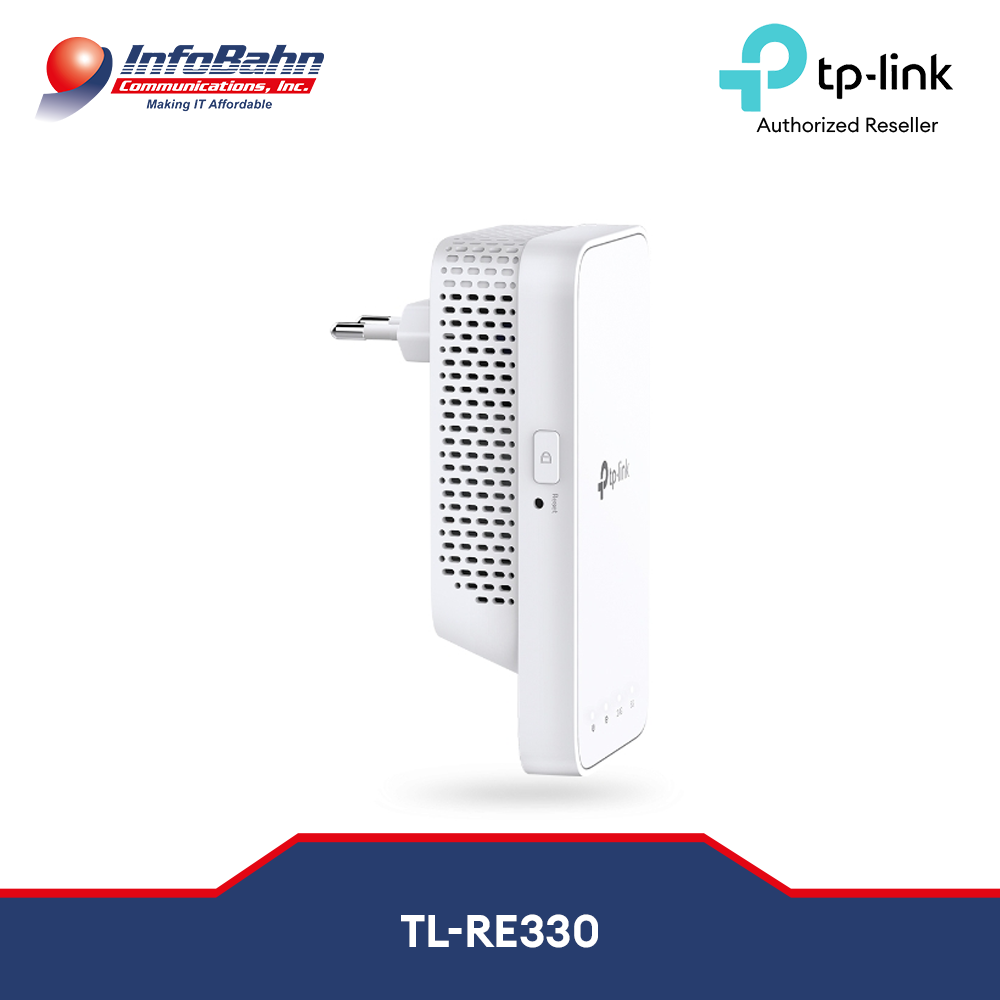

TP-link AC1200 Mesh Wi-Fi Extender Wifi Repeater [RE330] TP LINK TPLINK Infobahn

Technical Specifications:

WIRELESS

Working Modes Range Extender/Access Point

HARDWARE FEATURES

Standards and Protocols IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Interface 1 x 10/100M Ethernet Port (RJ45)

Ports 1 x 10/100Mbps Ethernet Port (RJ45)

Button WPS Button, Reset Button

Input Power 100-240V~50/60Hz

Power Consumption 9.5W

Dimensions ( W x D x H ) 2.7×1.4×4.9 in. (69.5×35.0×124.1 mm)

Antenna 2 Internal Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency 2.4GHz & 5GHz(11ac)

Signal Rate 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz

Reception Sensitivity 5 GHz:

11a 6Mbps: -94dBm, 11a 54Mbps: -77dBm

11ac HT20 MCS0: -94dBm, 11ac HT20 MCS8: -71dBm

11ac HT40 MCS0: -92dBm, 11ac HT40 MCS9: -66dBm

11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm

2.4 GHz:

11g 54Mbps: -78dBm, 11n HT20 MCS7: -76dBm

11n HT40 MCS7: -74dBm

Wireless Modes Range Extender/Access Point

Wireless Functions Enable/Disable Wireless Radio, Wireless Statistics

Wireless Security 64/128-bit WEP, WPA-PSK/WPA2-PSK encryptions

Transmission Power 2.4 GHz ≤20dBm, 5 GHz ≤30dBm

OTHERS

Certification FCC, RoHS

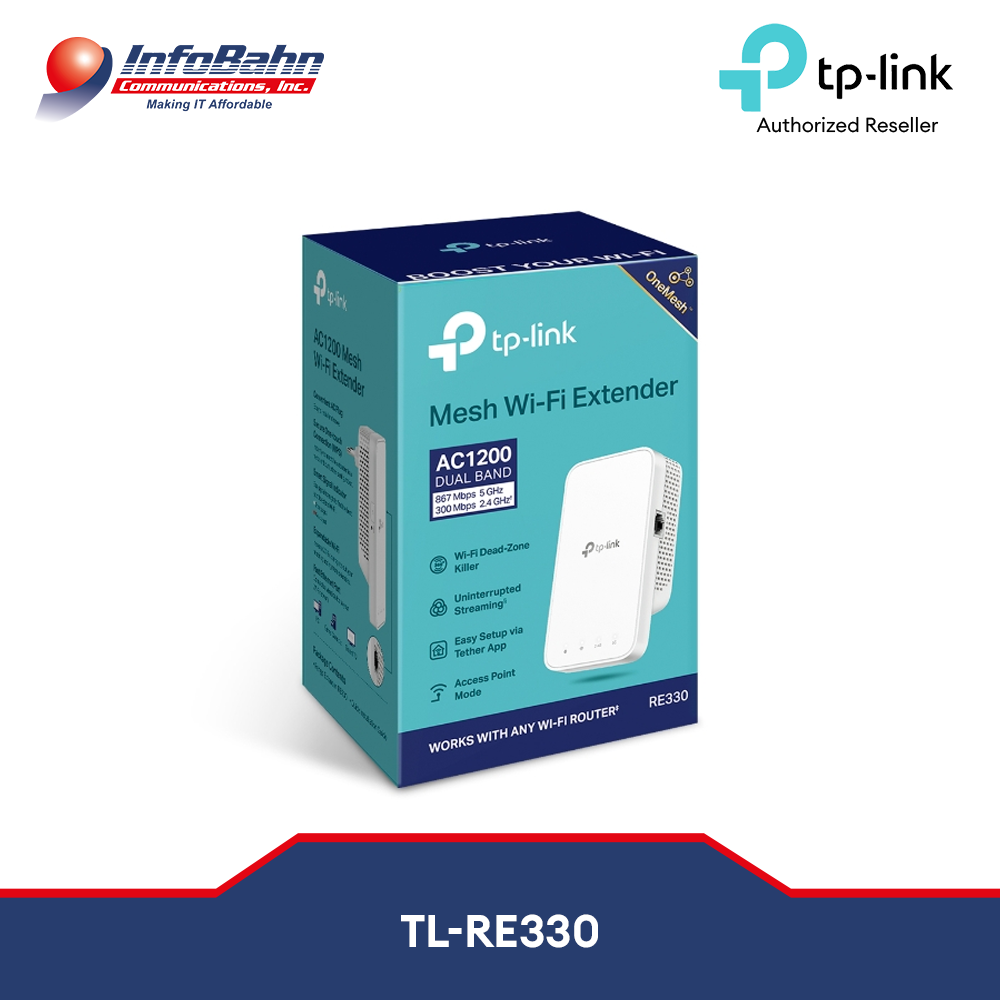

Package Contents Wi-Fi Range Extender RE330

Quick Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
