Why you need a Mesh WiFi Extender?
Boost Whole Home WiFi with Your Existing Router

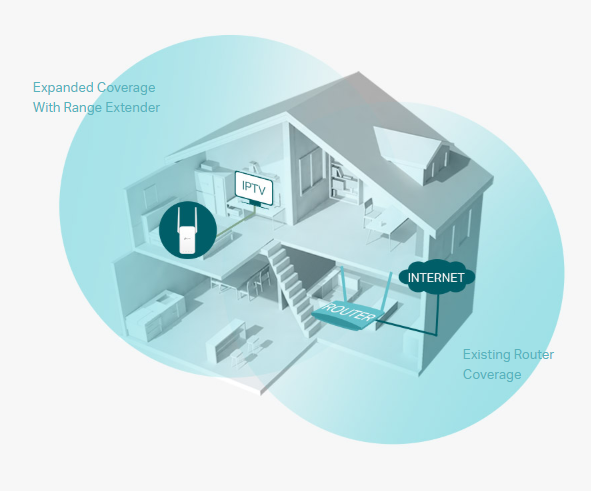

A single router has limited WiFi coverage and always causes WiFi dead zones. RE215 wirelessly connects to your existing router and expands its WiFi signal into areas it can’t reach on its own. Enjoy your stable network experience wherever you’re at your home.
WiFi keeps Strongest for Unlimited Moving

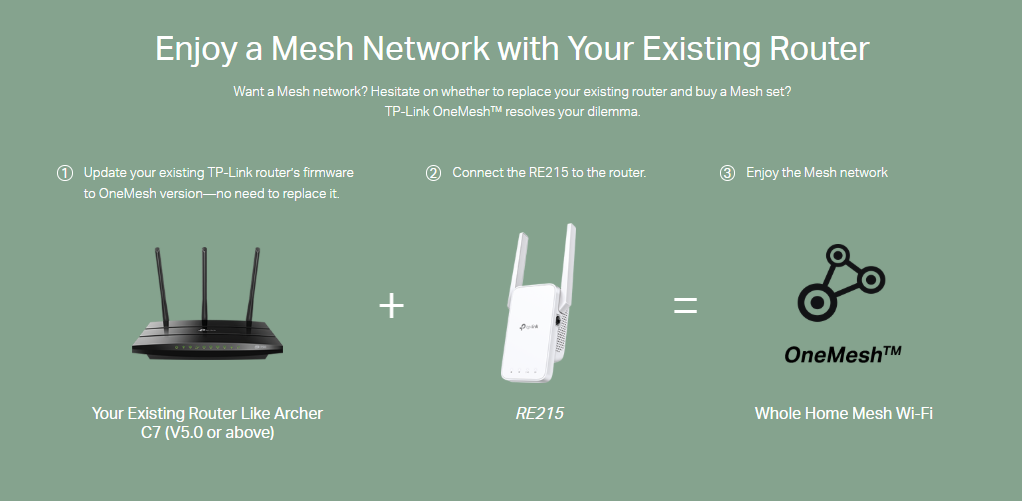

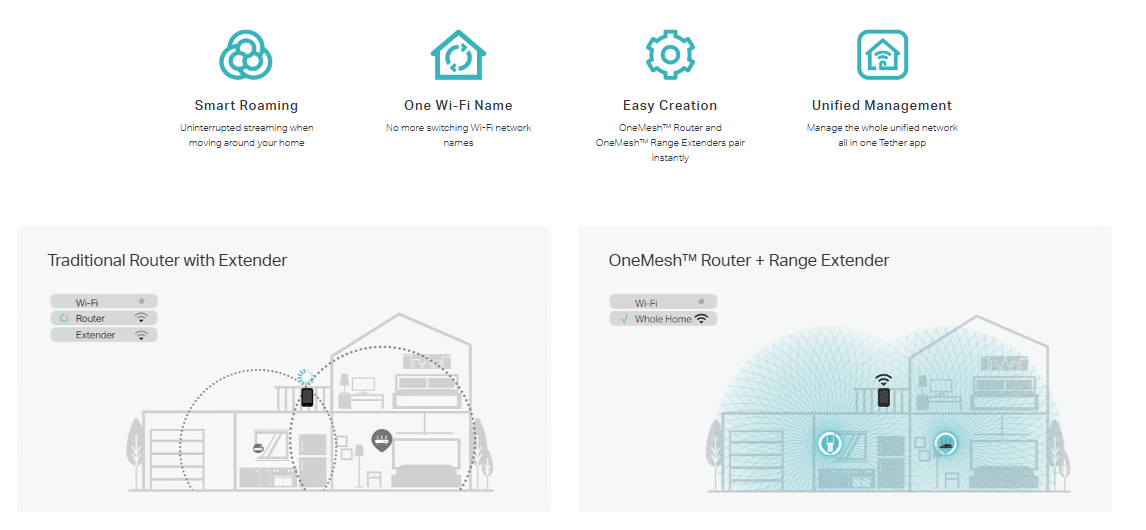

With TP-Link Mesh Technology, it’s easy to form a Mesh network with a single WiFi name for seamless whole-home coverage. Just connect RE215 to a OneMesh™ router. Always enjoy the strongest WiFi when you’re walking around and no need searching around for a stable connection.
Faster Dual Band WiFi Up to 750 Mbps

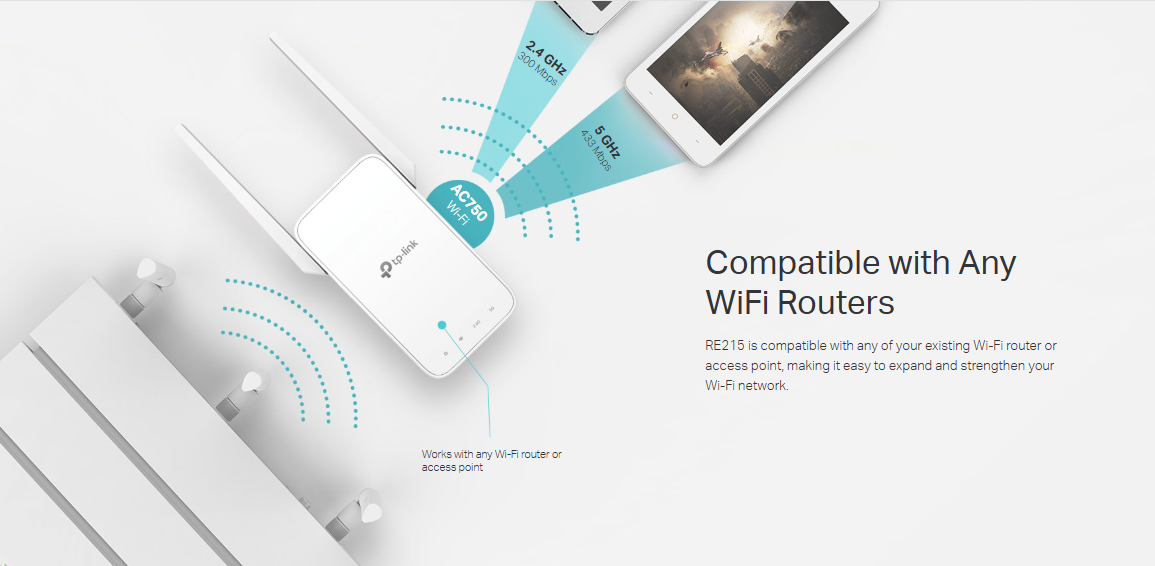

The RE215 delivers dual band (2.4GHz and 5GHz) to transmit WiFi signal, doubling the performance of single band. It enables you to keep more devices connected at the same time with its 2.4GHz 300 Mbps and 5GHz 433 Mbps dual bands, meeting all your different networking needs.
TECHNICAL SPECIFCATIONS:
WIRELESS
Working Modes
Range Extender/Access Point
HARDWARE FEATURES
Interface

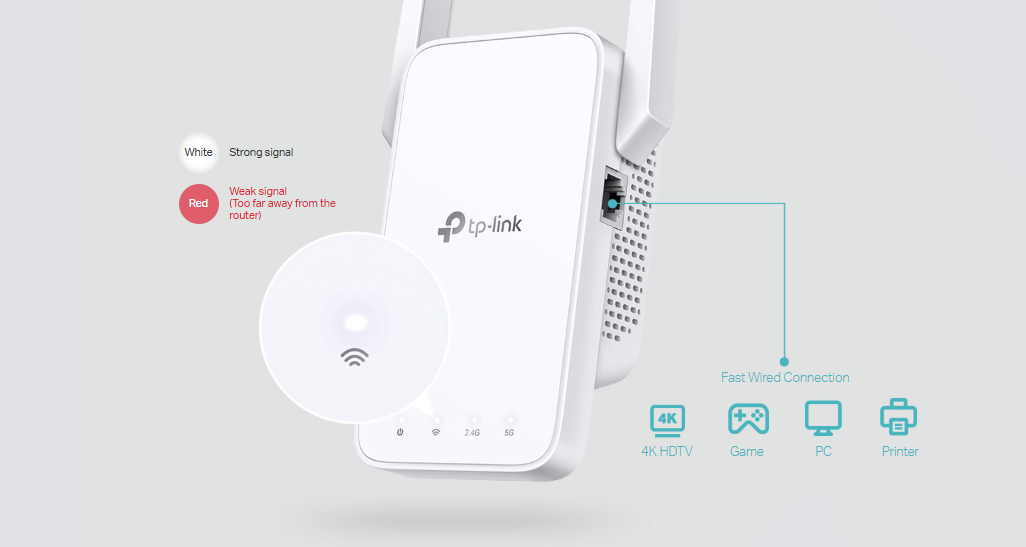

1 x 10/100Mbps Ethernet Port (RJ45)
Button
WPS Button, Reset Button
Input Power
100-240V~50/60Hz
Max. Power Consumption
9.5W（max power consumption）
Dimensions ( W x D x H )
3.5×1.4×4.9 in. (89×35.0×124.1 mm)
Antenna
2 External Antennas
WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency
2.4GHz & 5GHz(11ac)
Signal Rate
5 GHz:Up to 433 Mbps
2.4 GHz:Up to 300 Mpbs
Working Modes
Range Extender/Access Point
Reception Sensitivity
5 GHz:
11a 6Mbps: -94dBm, 11a 54Mbps: -77dBm
11ac HT20 MCS0: -94dBm, 11ac HT20 MCS8: -71dBm
11ac HT40 MCS0: -92dBm, 11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm
2.4 GHz:
11g 54Mbps: -78dBm, 11n HT20 MCS7: -76dBm
11n HT40 MCS7: -74dBm
Wireless Modes
Wireless Functions
Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security
64/128-bit WEP, WPA/WPA2-PSK/WPA2-PSK2 encryptions
Transmission Power
2.4 GHz ≤20dBm, 5 GHz ≤30dBm
OTHERS
Certification
CE, RoHS
Package Content
Wi-Fi Range Extender RE215
Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
