- Fast WiFi 6 - Break the gigabit barrier with speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
- Dual Band Wireless - 2.4 GHz and 5 GHz bands for flexible connectivity.

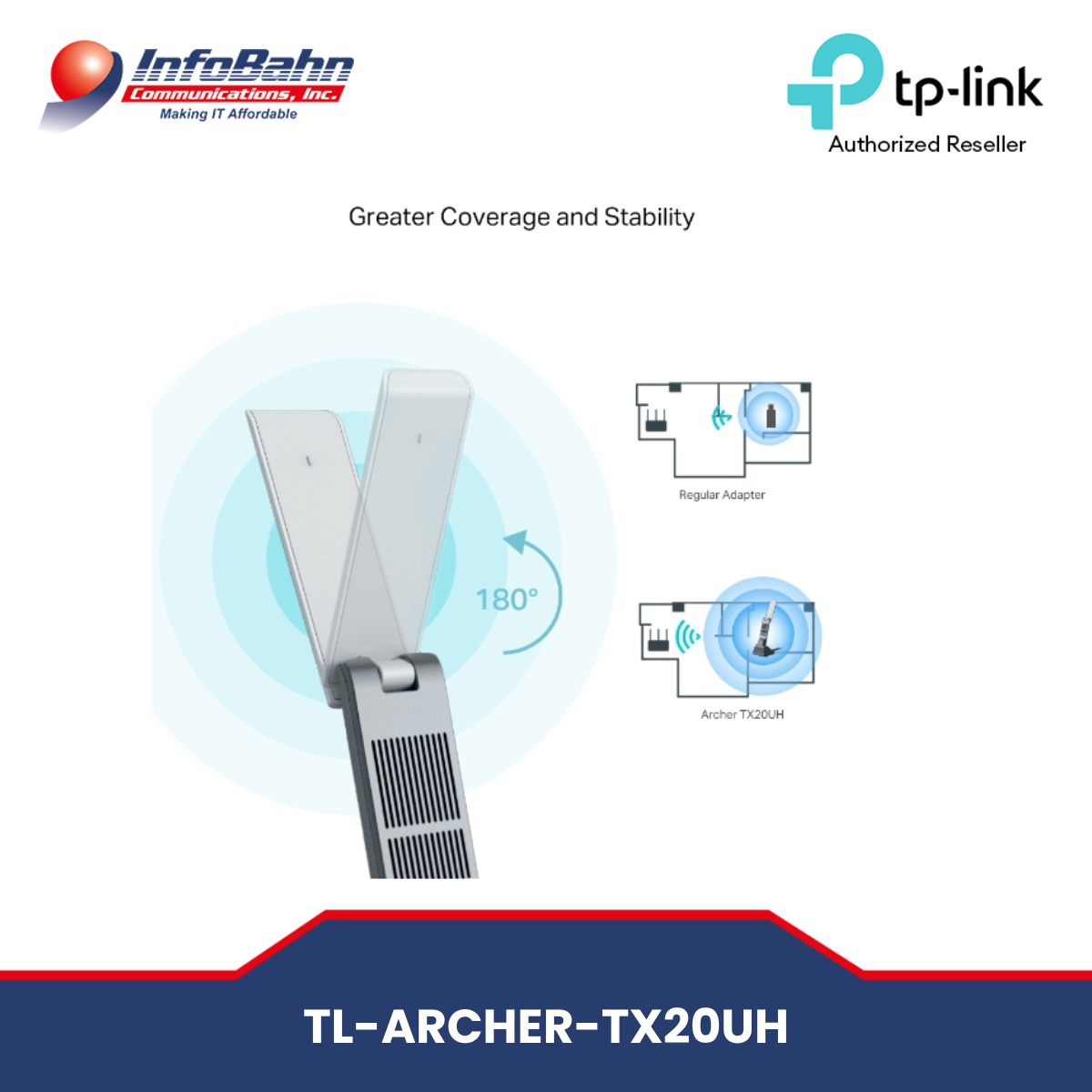

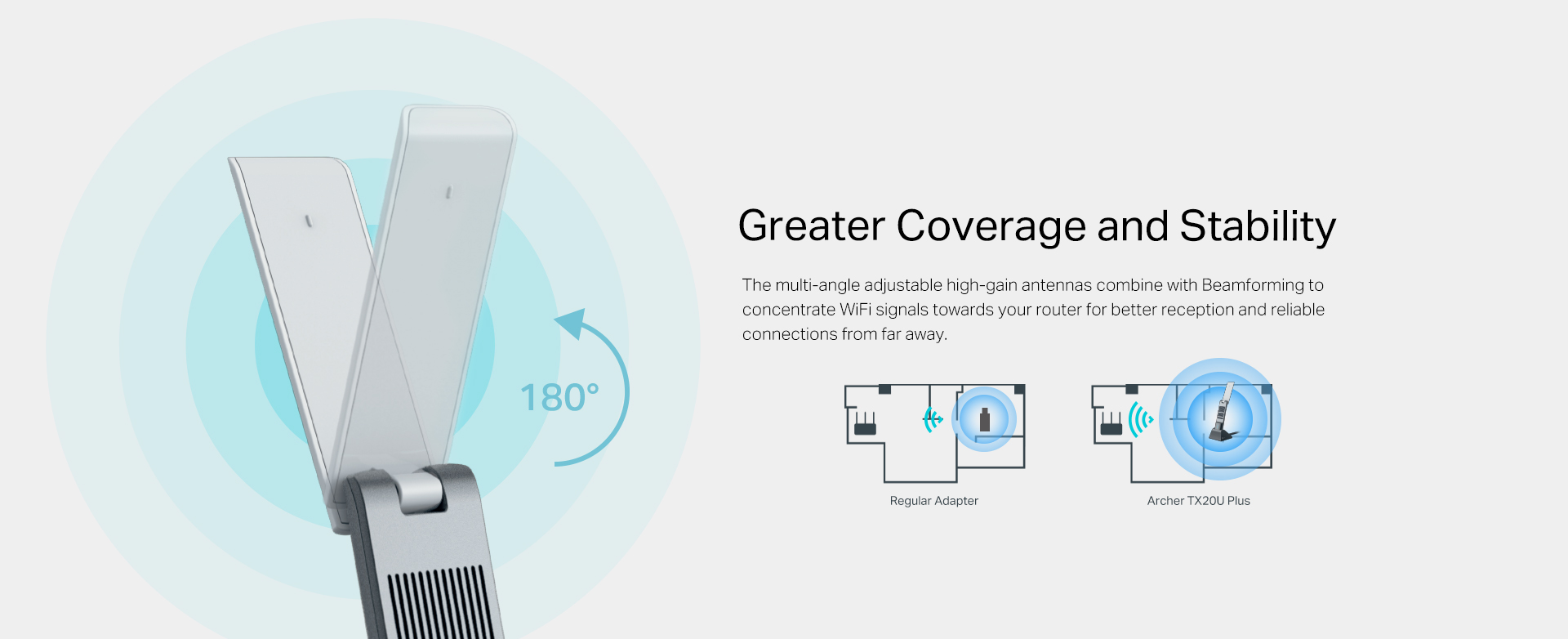

- Broader Coverage - Connect to your WiFi from wherever in your home with high-gain antennas and Beamforming.

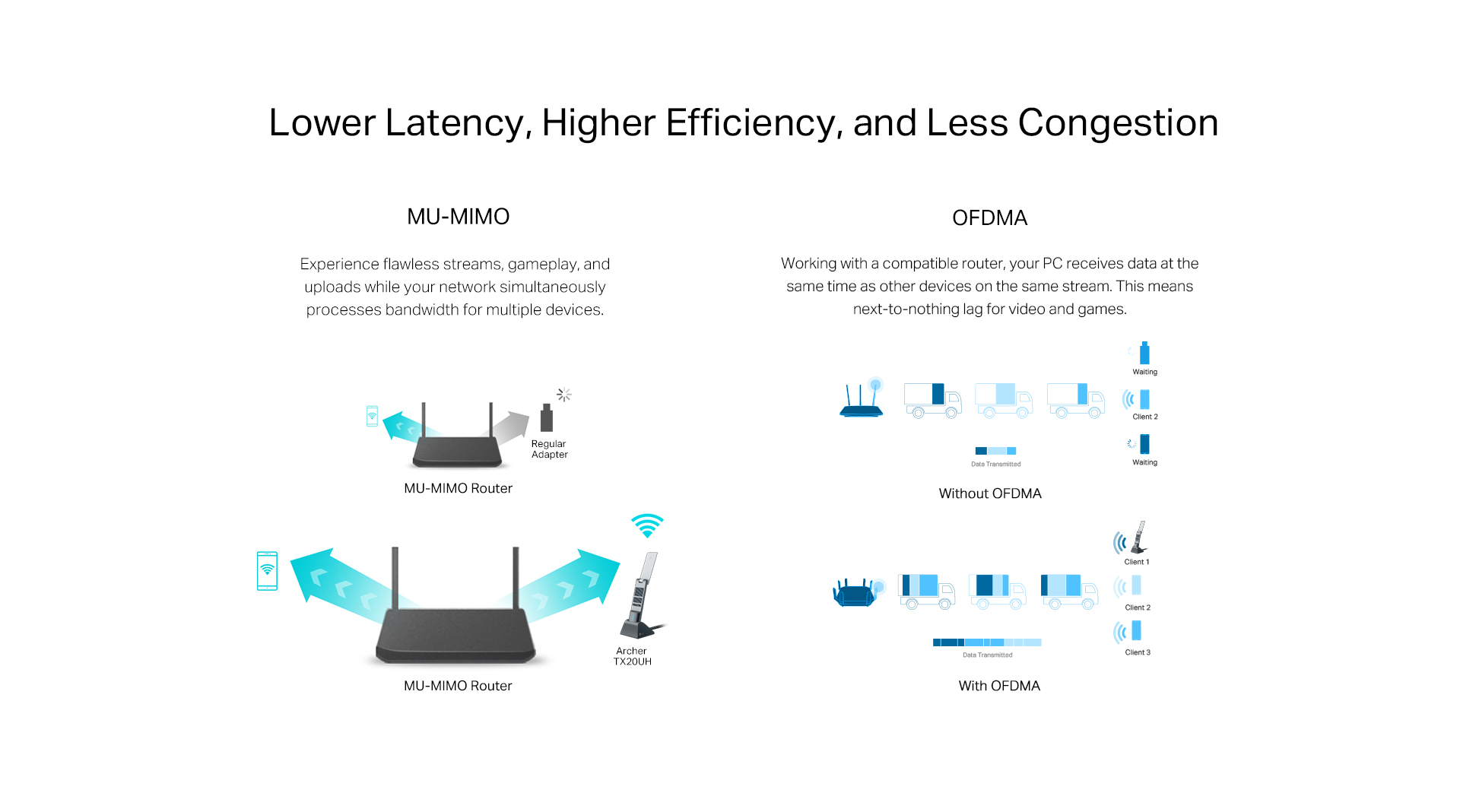

- Lower Latency Gameplay - OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC.
- Improved Security - WPA3 provides the latest security enhancements for personal password protection.
-
SuperSpeed USB 3.0 - Up to 10x faster transfer speeds than USB 2.0
Technical Specifications
LED Status Dimensions ( W x D x H ) 30.5 × 14.8 × 111.7 mm (1.2 × 0.58 × 4.4 in) Antenna 2× High-Gain Dual-Band Antennas Wireless Standards IEEE 802.11a/b/g/n/ac/ax Signal Rate 5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)Wireless Modes Infrastructure mode Wireless Security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK Transmission Power 5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP)

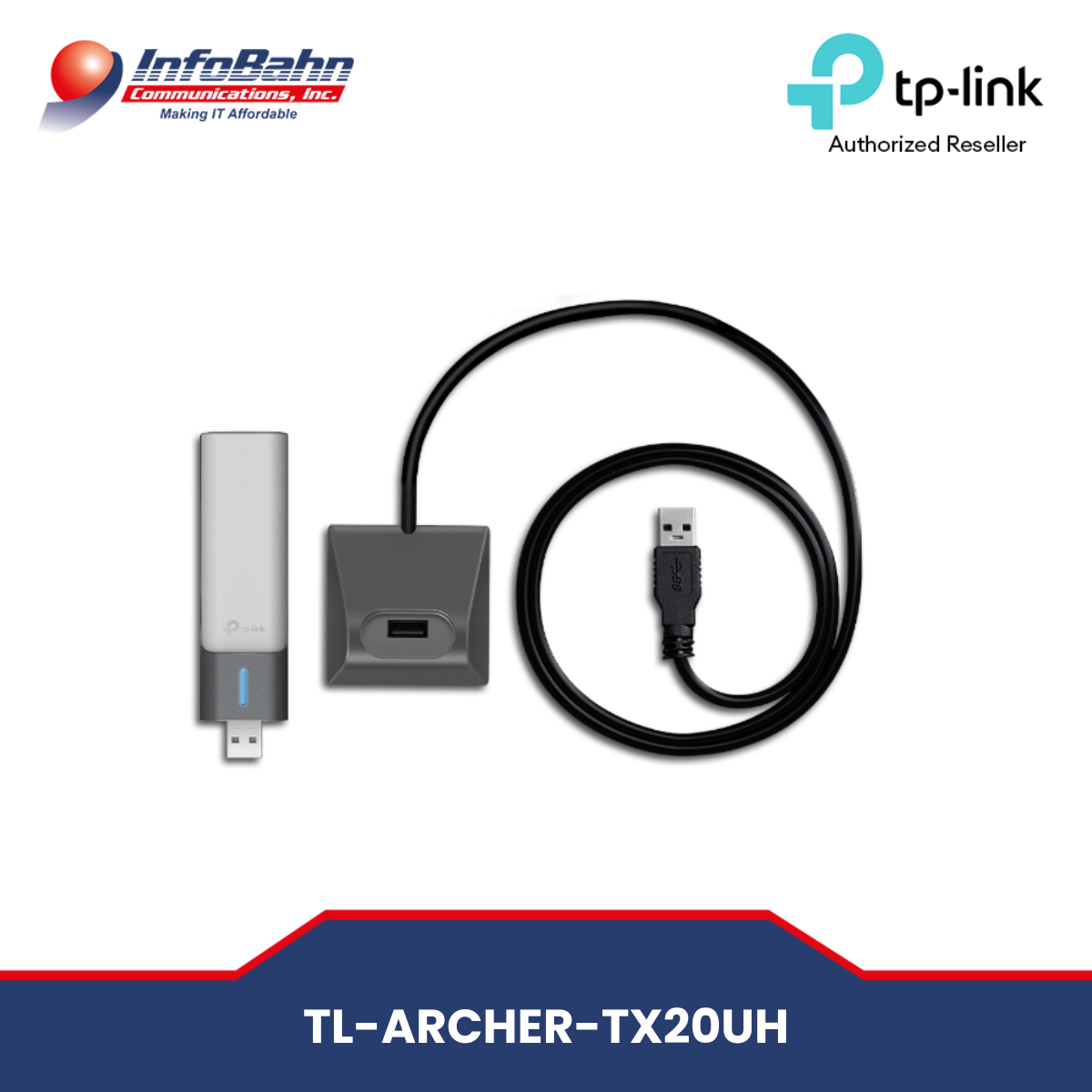

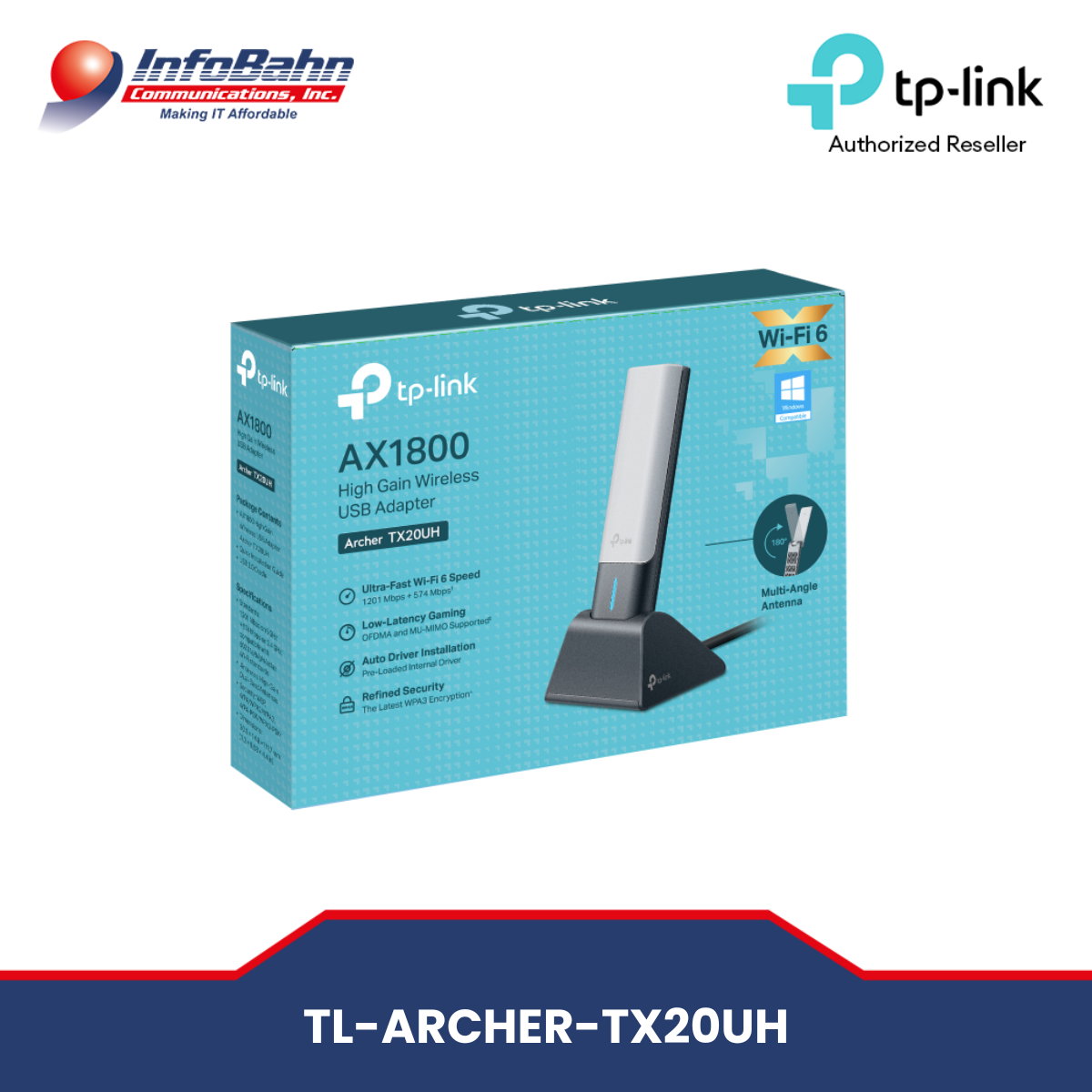

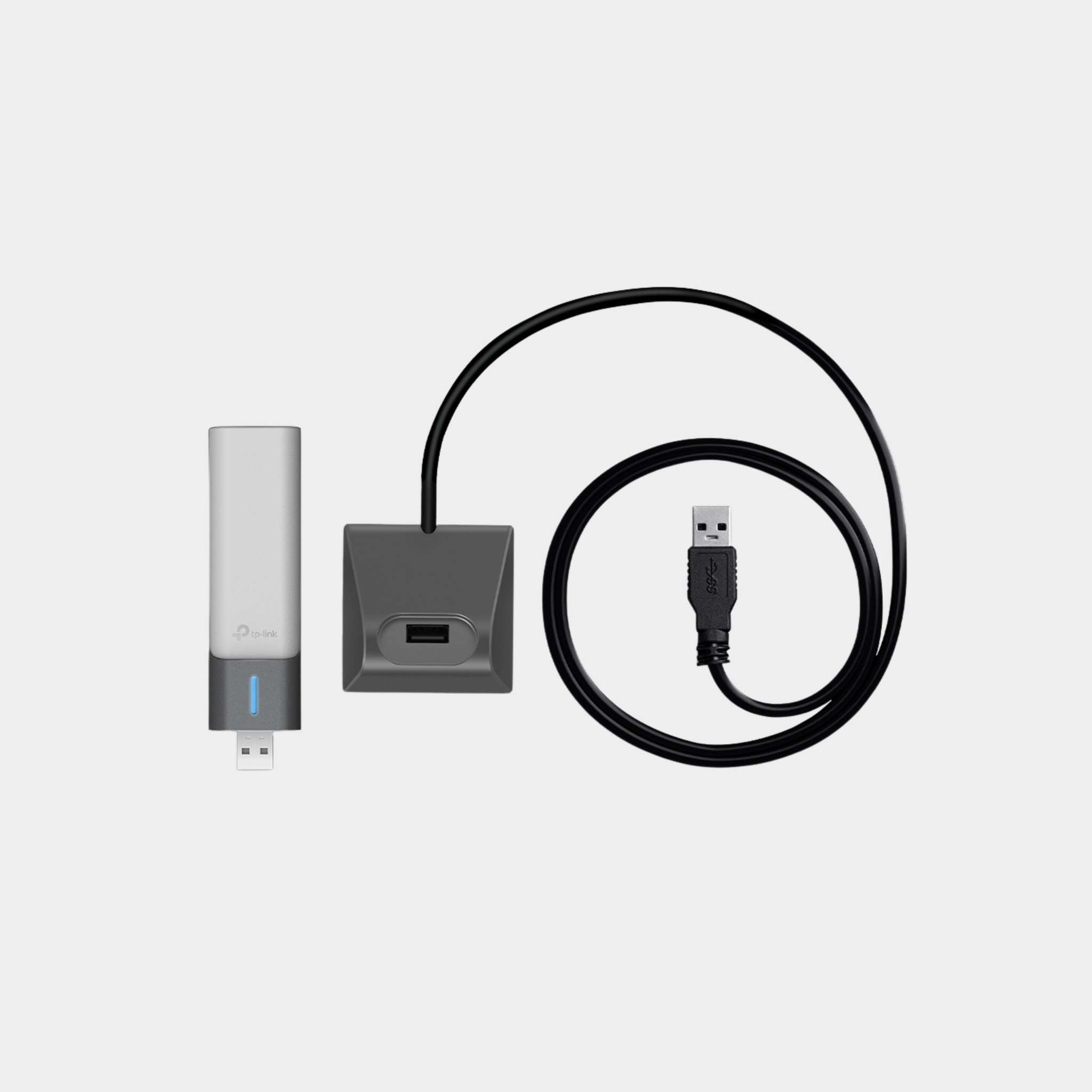

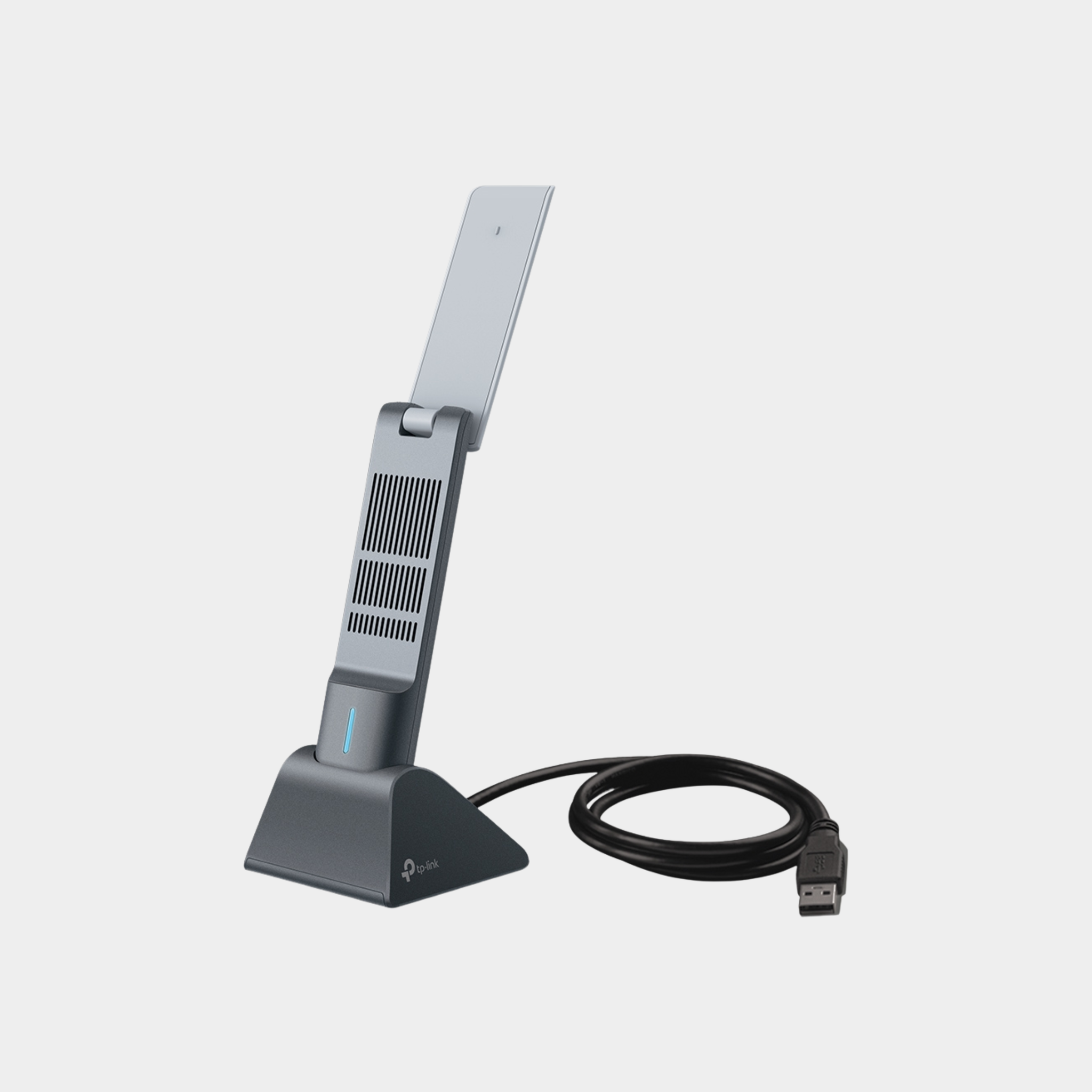

2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP)Certification FCC, CE, RoHS Package Content AX1800 High Gain Wireless USB Adapter Archer TX20UH
Quick Installation Guide

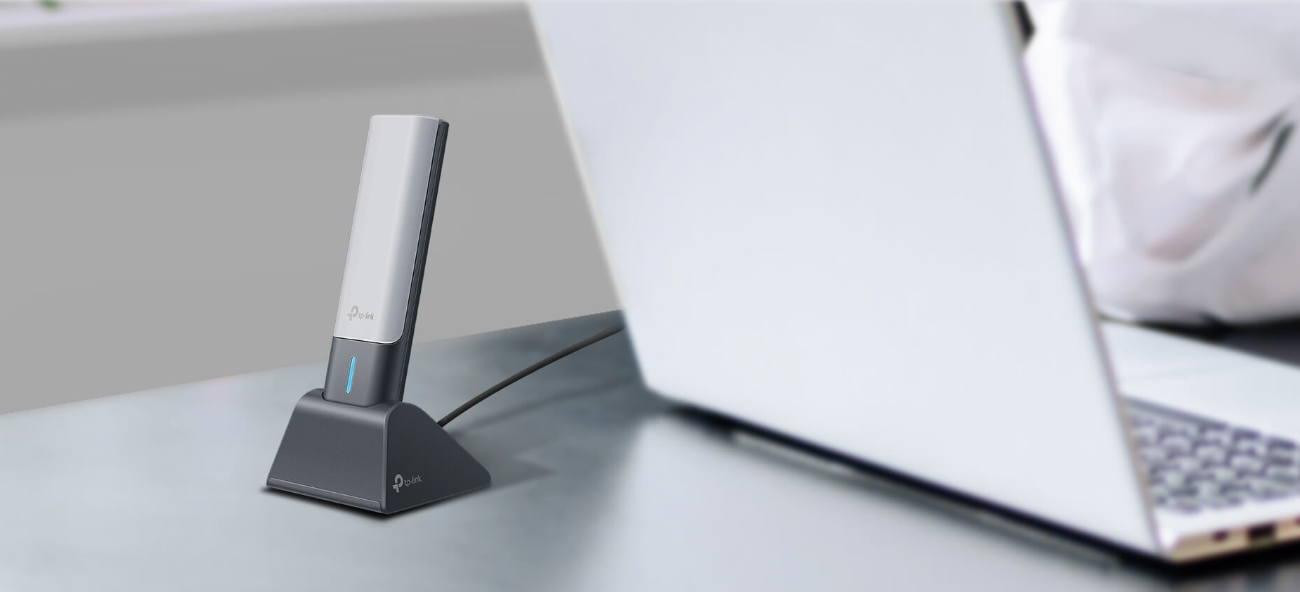

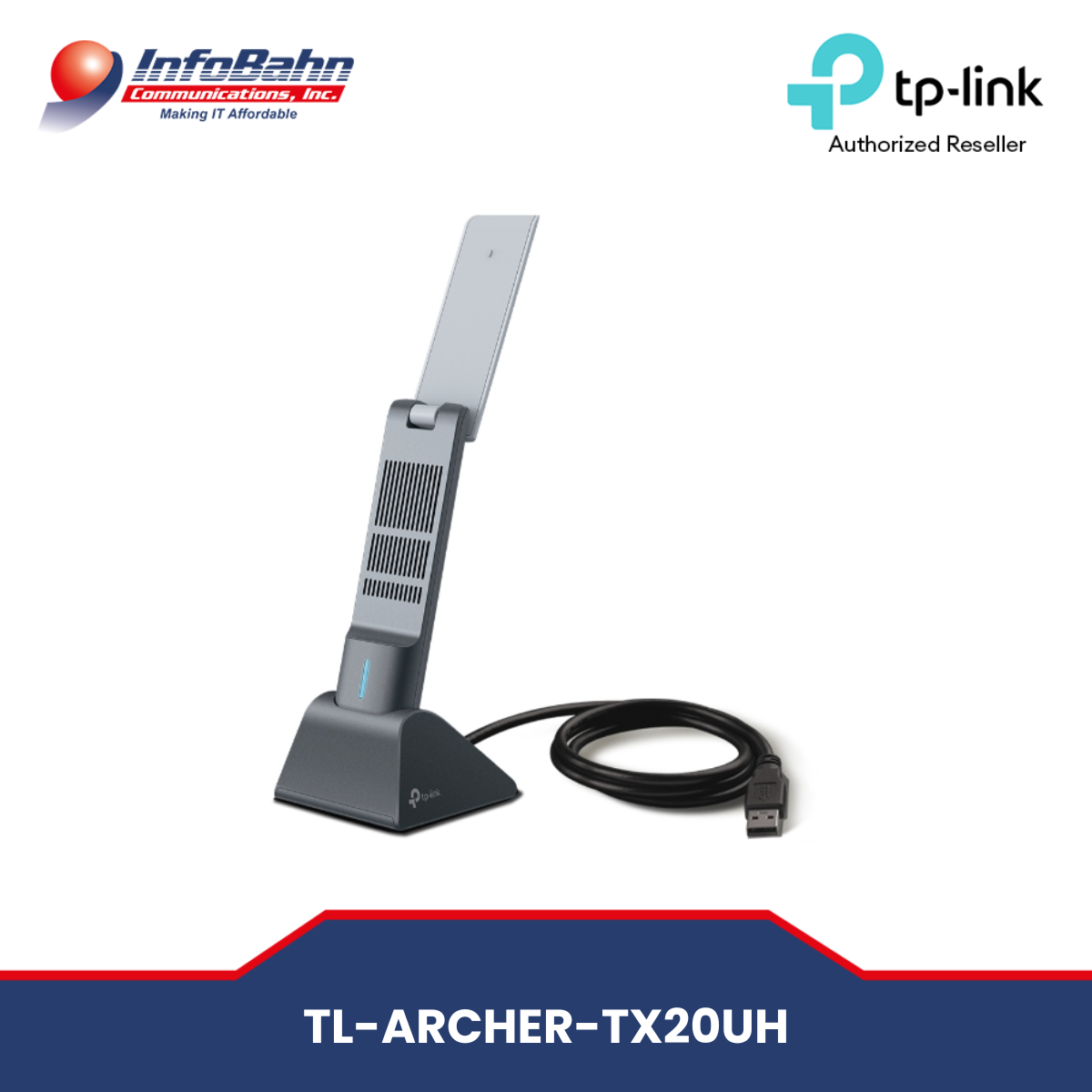

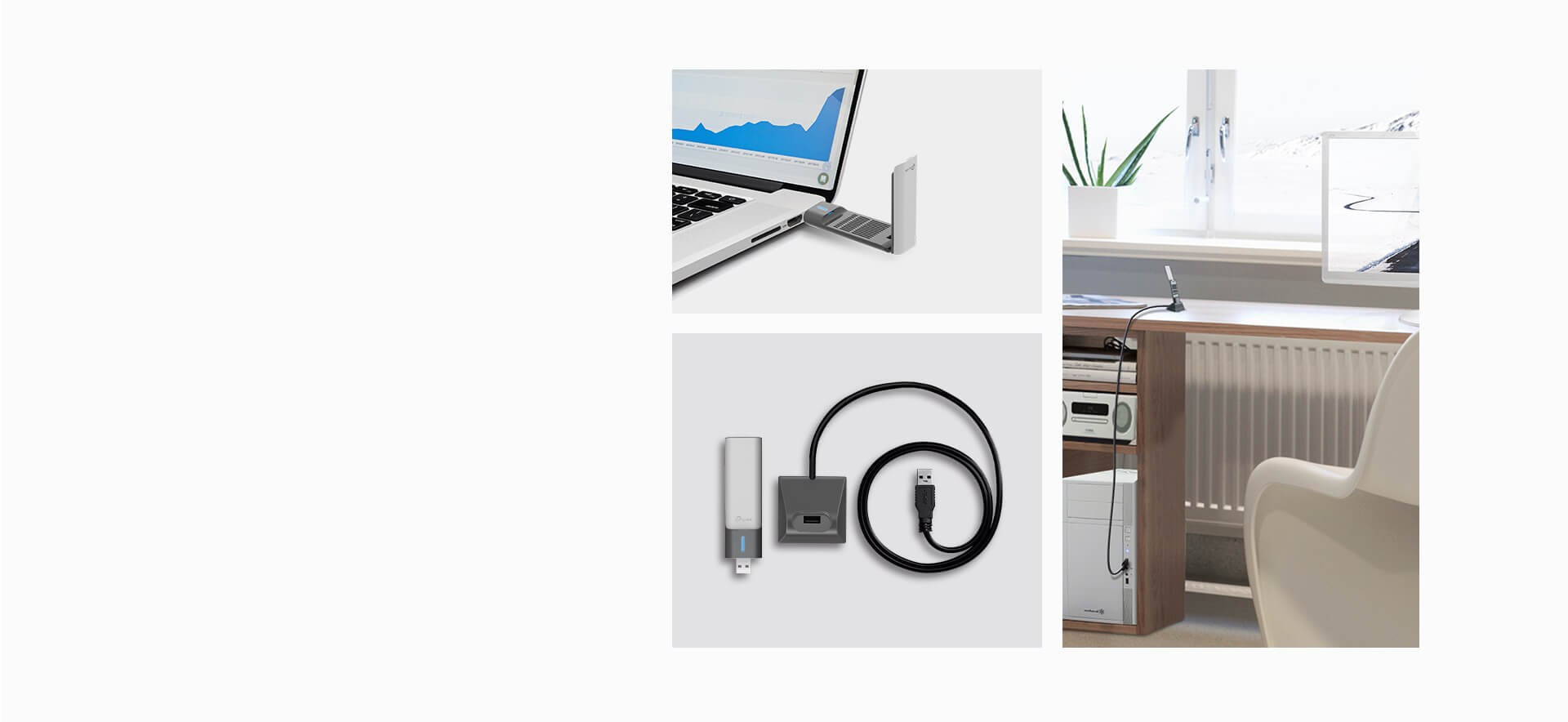

USB 3.0 CradleSystem Requirements Supported operating systems include Windows 10, 11 Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
