Plug and Play, Enjoy 5G Network Everywhere
Simple, just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Deco X50-5G ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!
WiFi 6 Upgrades Everything
Armed with WiFi 6 technology, Deco whole home mesh WiFi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.

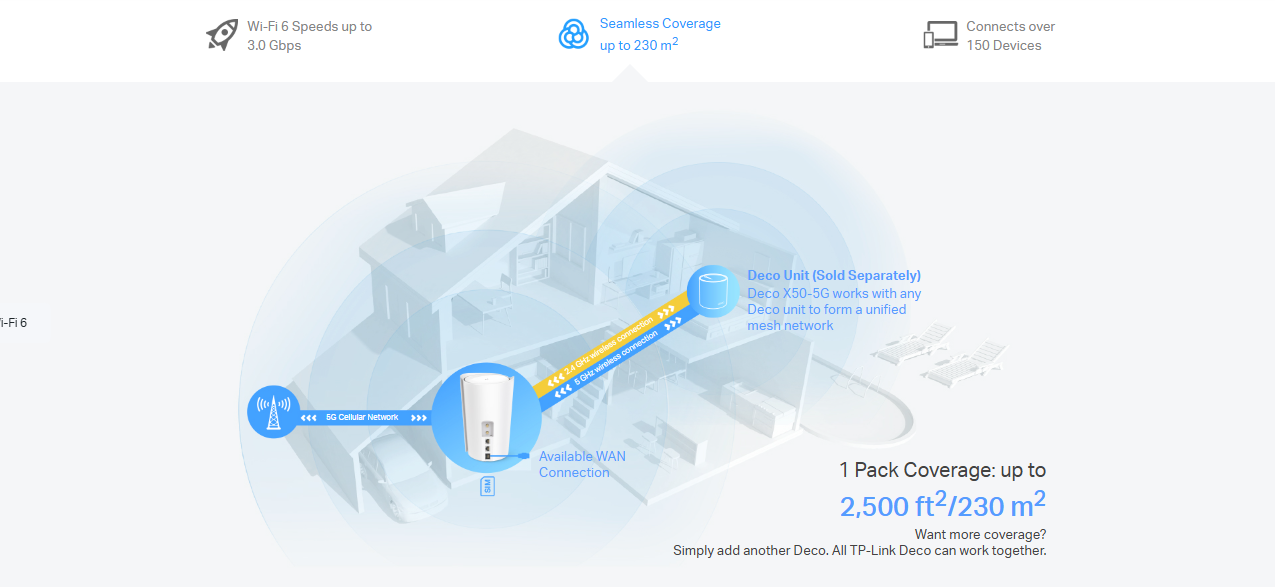

Seamless Roaming with One WiFi Name
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless WiFi experience
Easy Management
Manage your WiFi at home or away on the Deco app. See every connected device, prioritize your own, and set up a guest network.
TECHNICAL SPECIFICATIONS
WIRELESS
Standards and Protocols
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
AX3000
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range
1-3 Bedroom Houses (1-pack)TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

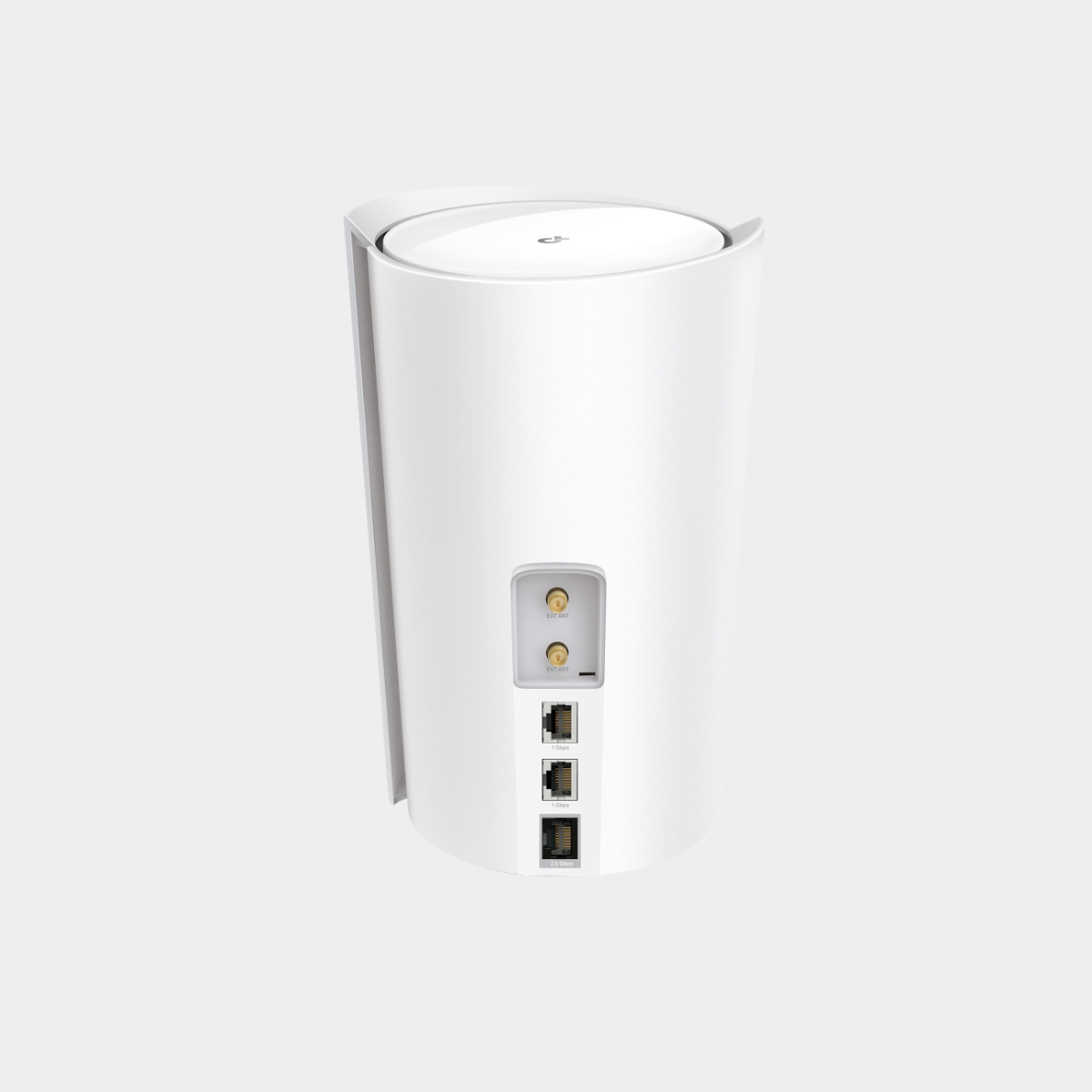

4× LTE/5G internal antennas + 2× Wi-Fi internal antennas
+ 2× external RP-SMA-F antenna interface
Multiple antennas form a signal-boosting array to cover more directions and large areas
SIM Card Format: Nano-SIM
WiFi Capacity
HighDual-Band
Distribute devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple WiFi 6 clients
4 Streams
More than enough bandwidth for connected devices
Working Modes
5G/4G Router, Router, Access Point
SECURITY
Network Security
SPI Firewall
Access Control
HomeShield SecurityReal-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
WiFi Encryption
WPA-Personal
WPA2-Personal
WPA3-Personal
HARDWARE

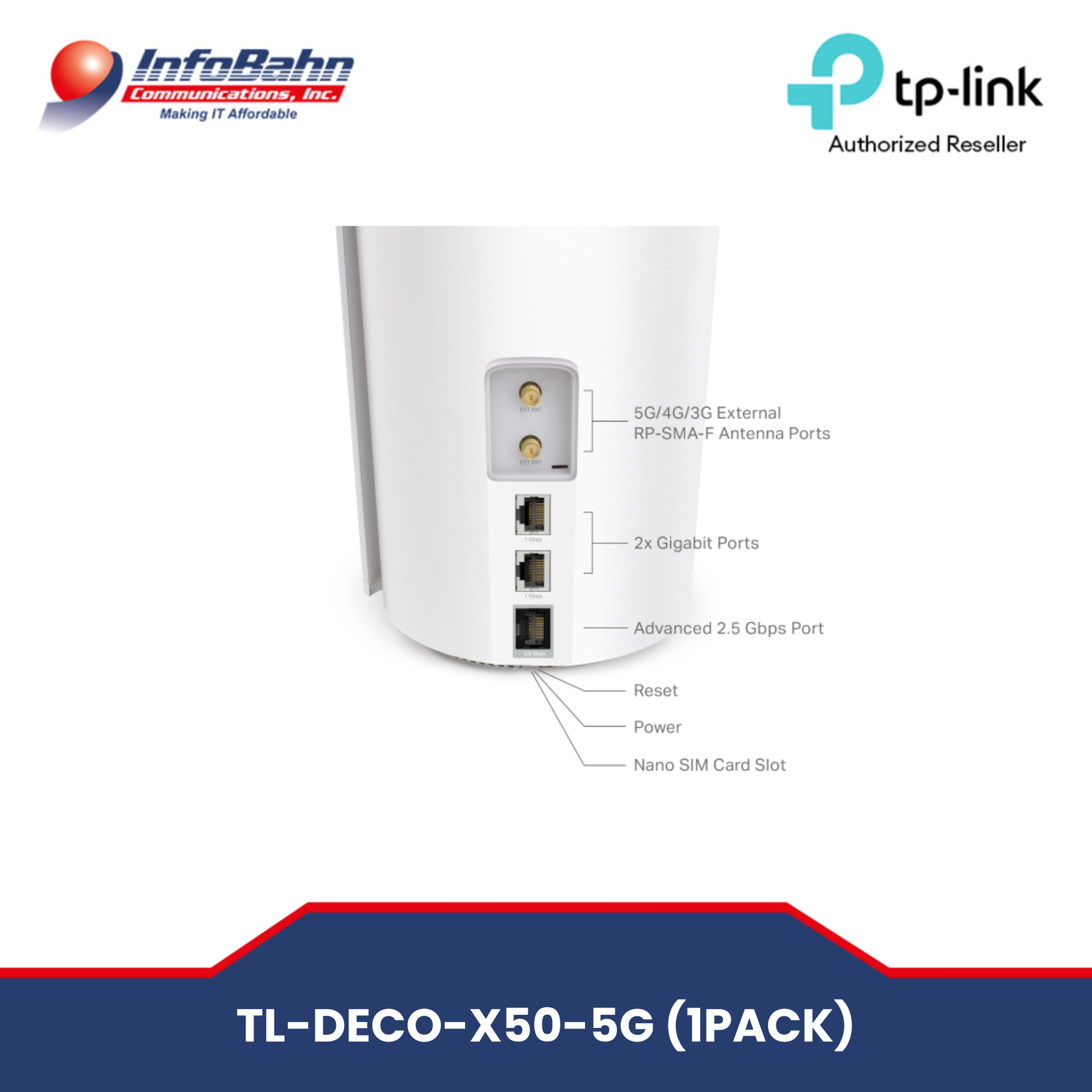

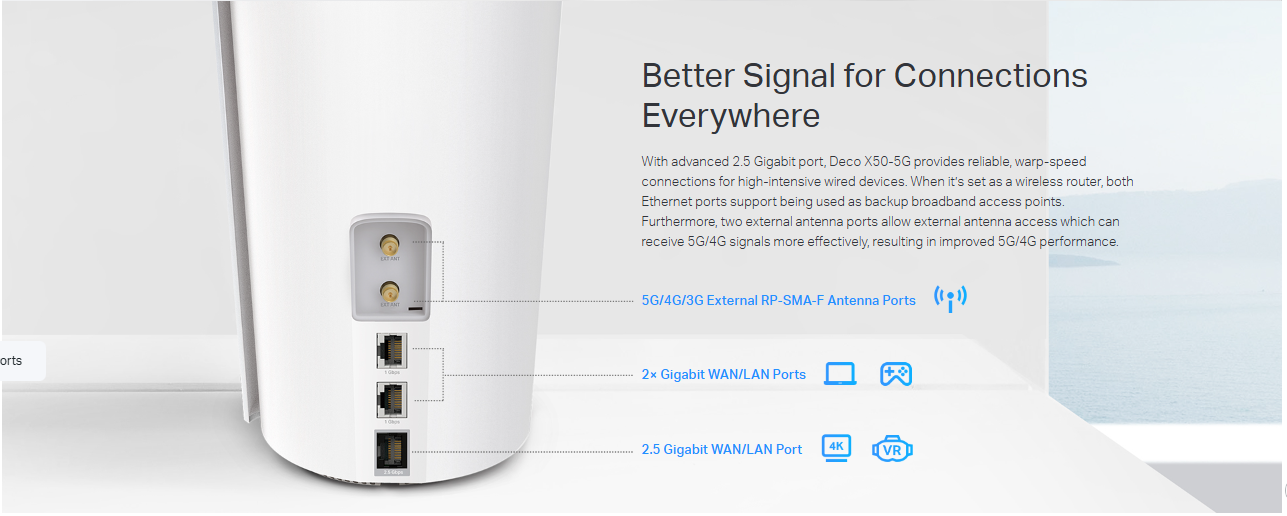

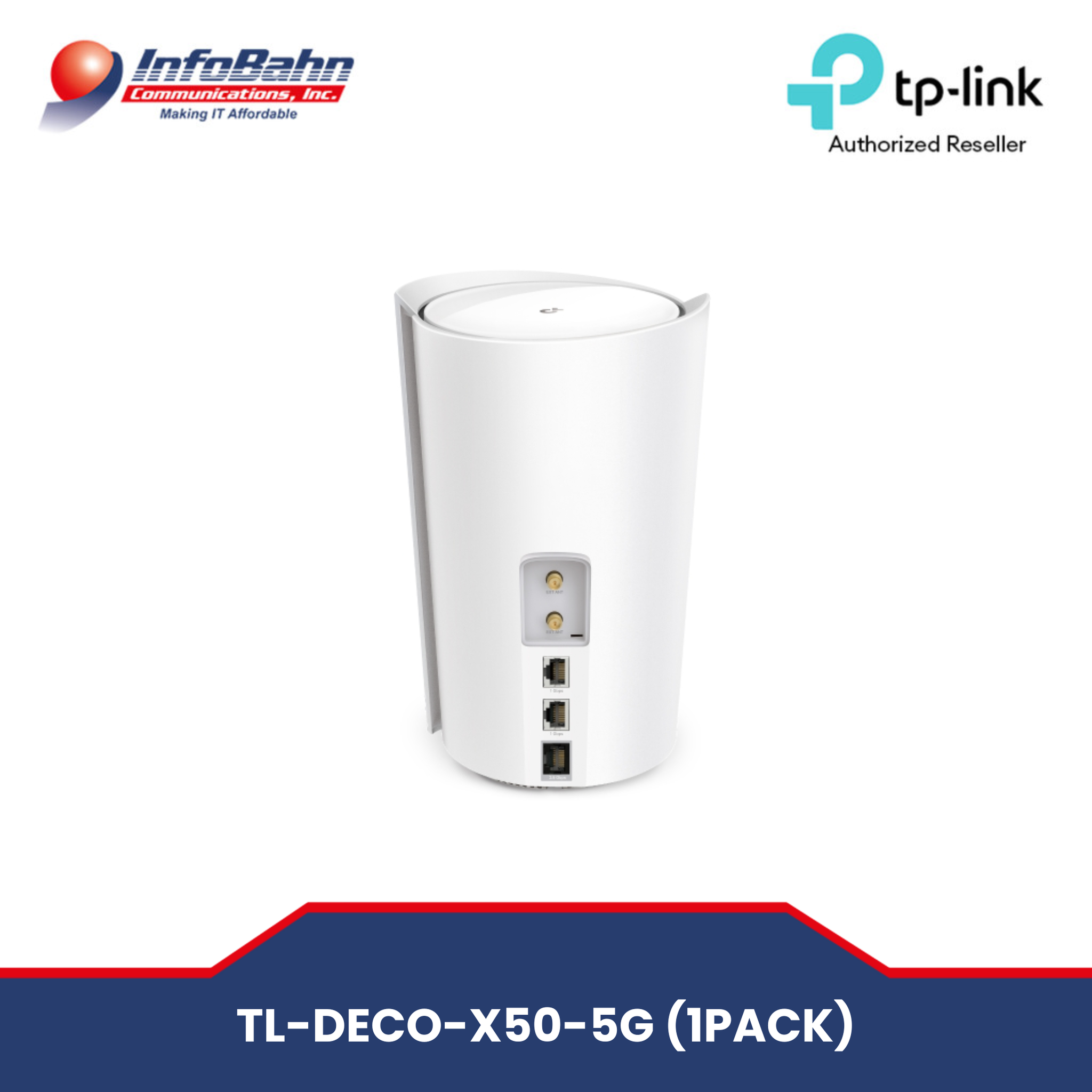

Ports and Connections
1× 2.5 Gigabit port + 2× 1 Gigabit ports
(WAN/LAN auto-sensing)
Compatibility
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28
4G TDD-LTE: B38/B40/B41/B42/B43
3G: B1/B5/B8
SOFTWARE
Protocols
IPv4
IPv6
Service Kit
HomeShield
Learn More>
WAN Types
Dynamic IP
Static IP
PPPoE
L2TP
PPTP
Quality of Service
HomeShield QoSQoS by Device
Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding
Port Forwarding
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Address Reservation
DHCP Client List
Server
DDNS
TP-Link
Management Features
Deco App
OTHER
Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DNS
DNS
• Port: 53 Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 22 Protocol: TCP
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP
TEST DATA
WiFi Transmission Power
CE:
≤20 dBm (2.4 GHz),
≤23 dBm (5 GHz)
PHYSICAL
Dimensions (W×D×H)
8.3 × 5.1 × 4.8 in
(210.5 × 130 × 123mm)
OTHERS
Certification
RoHS, CE, RCM
Package Content
1-pack
1 Deco X50-5G unit
1 RJ45 Ethernet Cable
1 Power Adapter
Quick Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90%RH
Storage Humidity: 5%~90%RH
