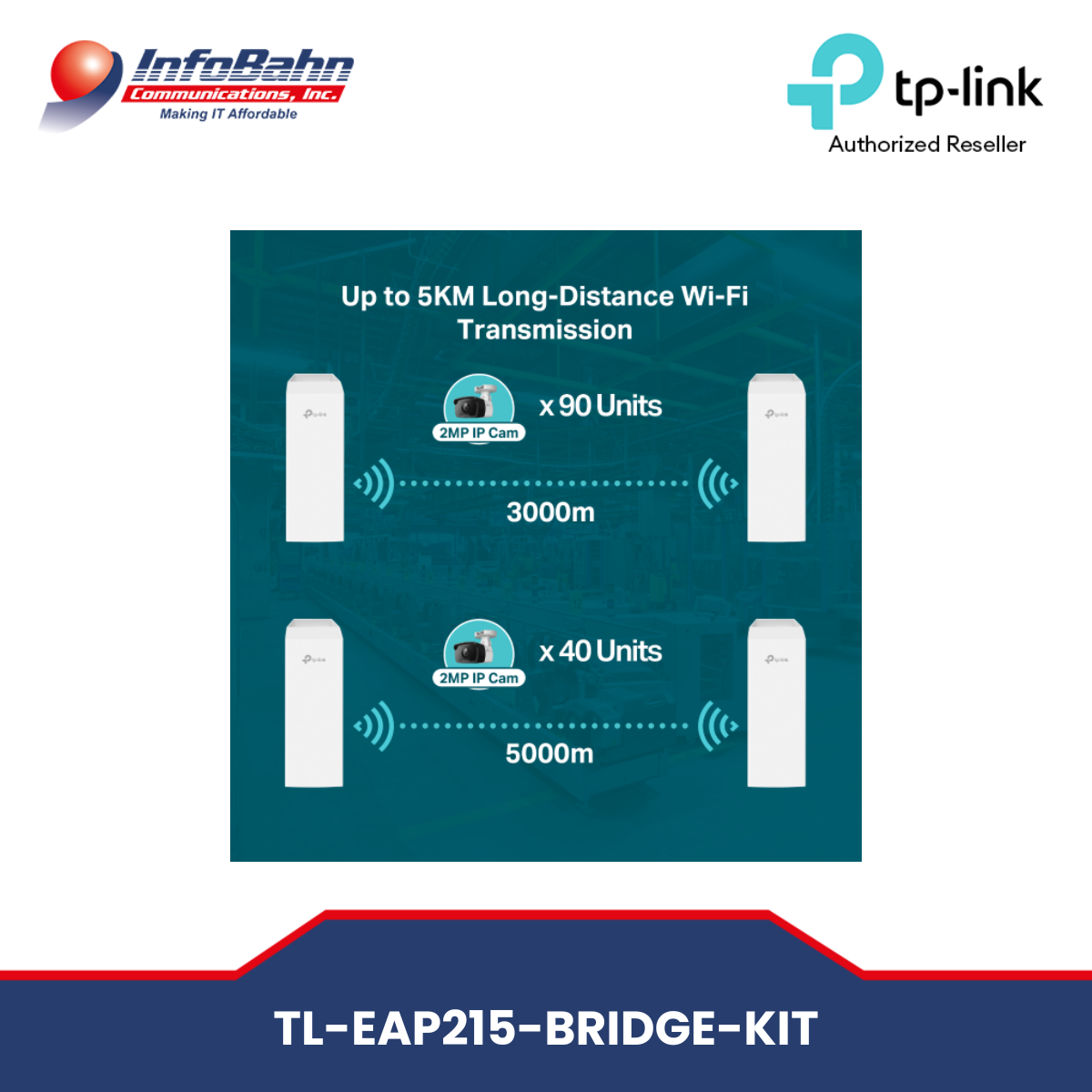

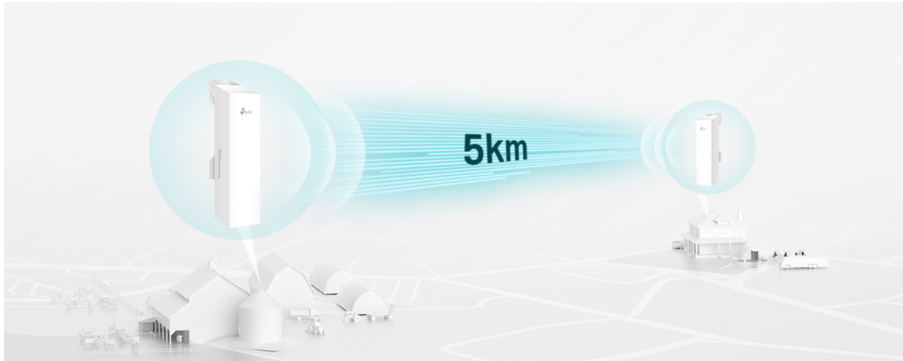

5-km Long-Distance Wi-Fi Transmission

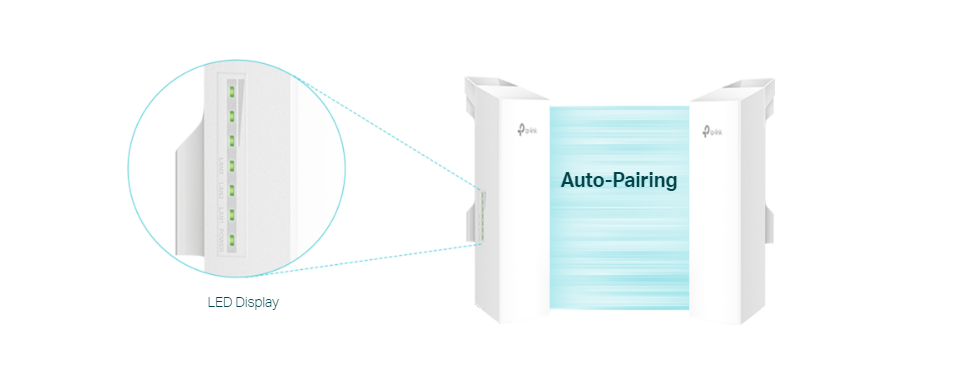

Easy and Simple Deployment

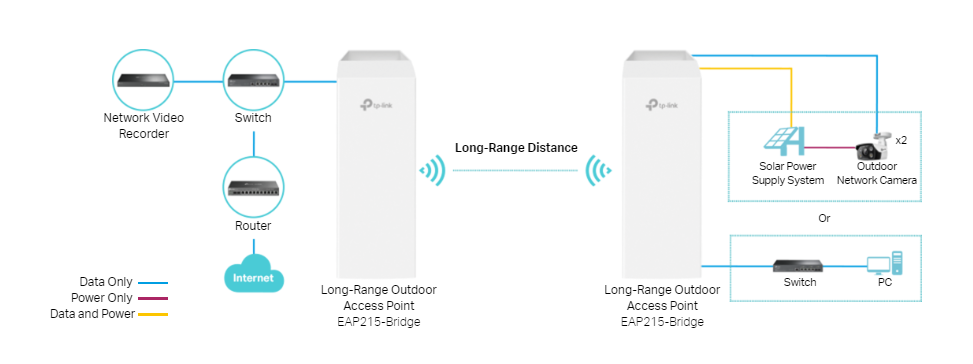

Point-to-Point Connection, Perfect for Surveillance

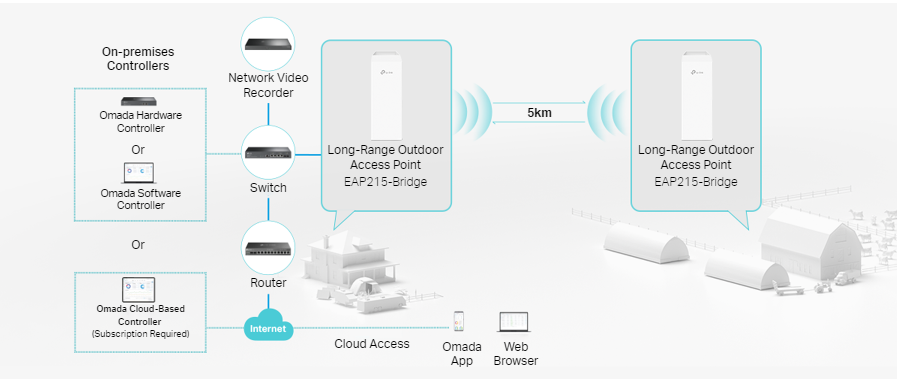

Seamless Integration into Omada SDN
TECHNICAL SPECIFICATIONS:
HARDWARE FEATURES
Interface

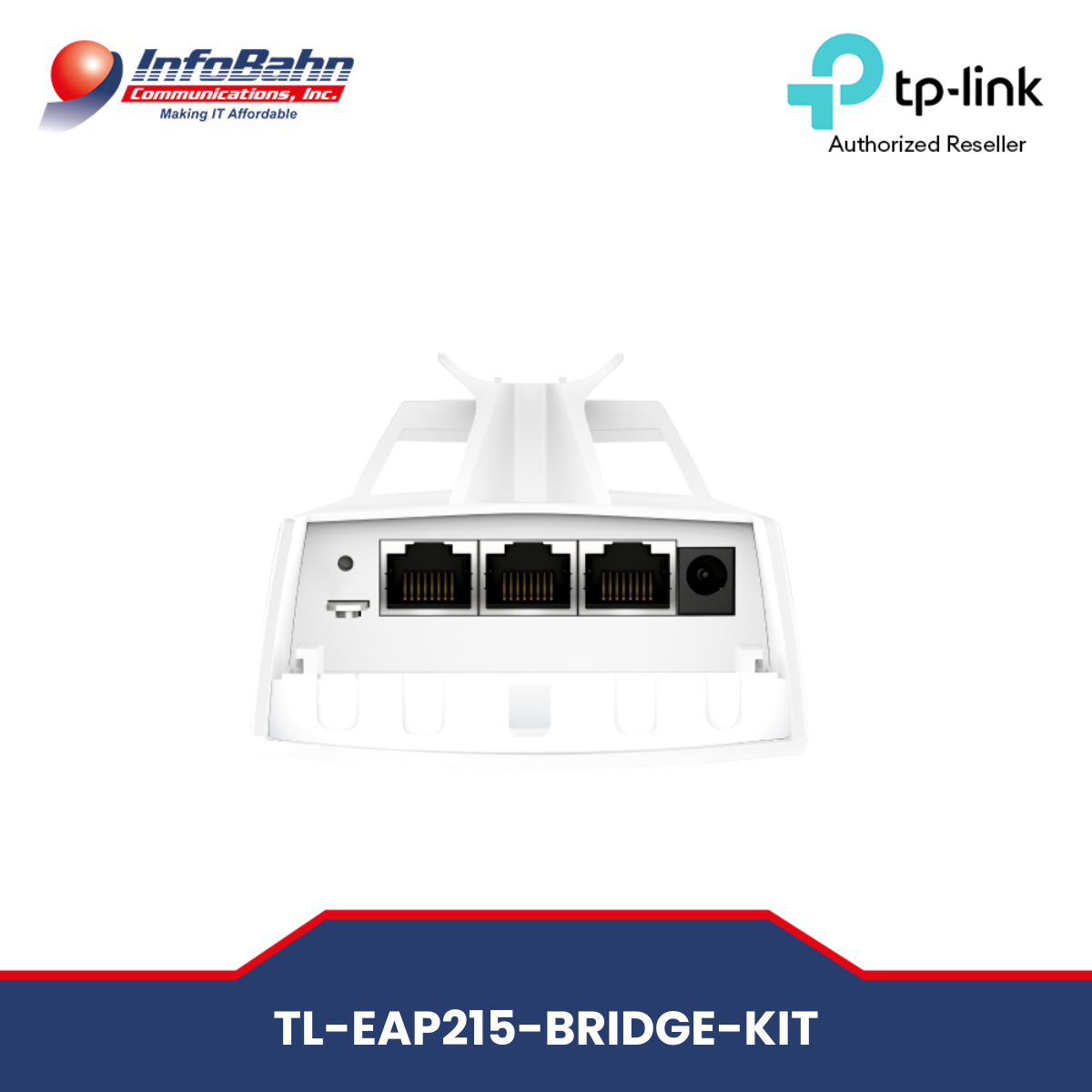

3x Gigabit Ethernet Ports
Button
Reset
Power Supply
12V DC / 24V Passive PoE (Passive PoE adapter included.)
Power Consumption
11.5W

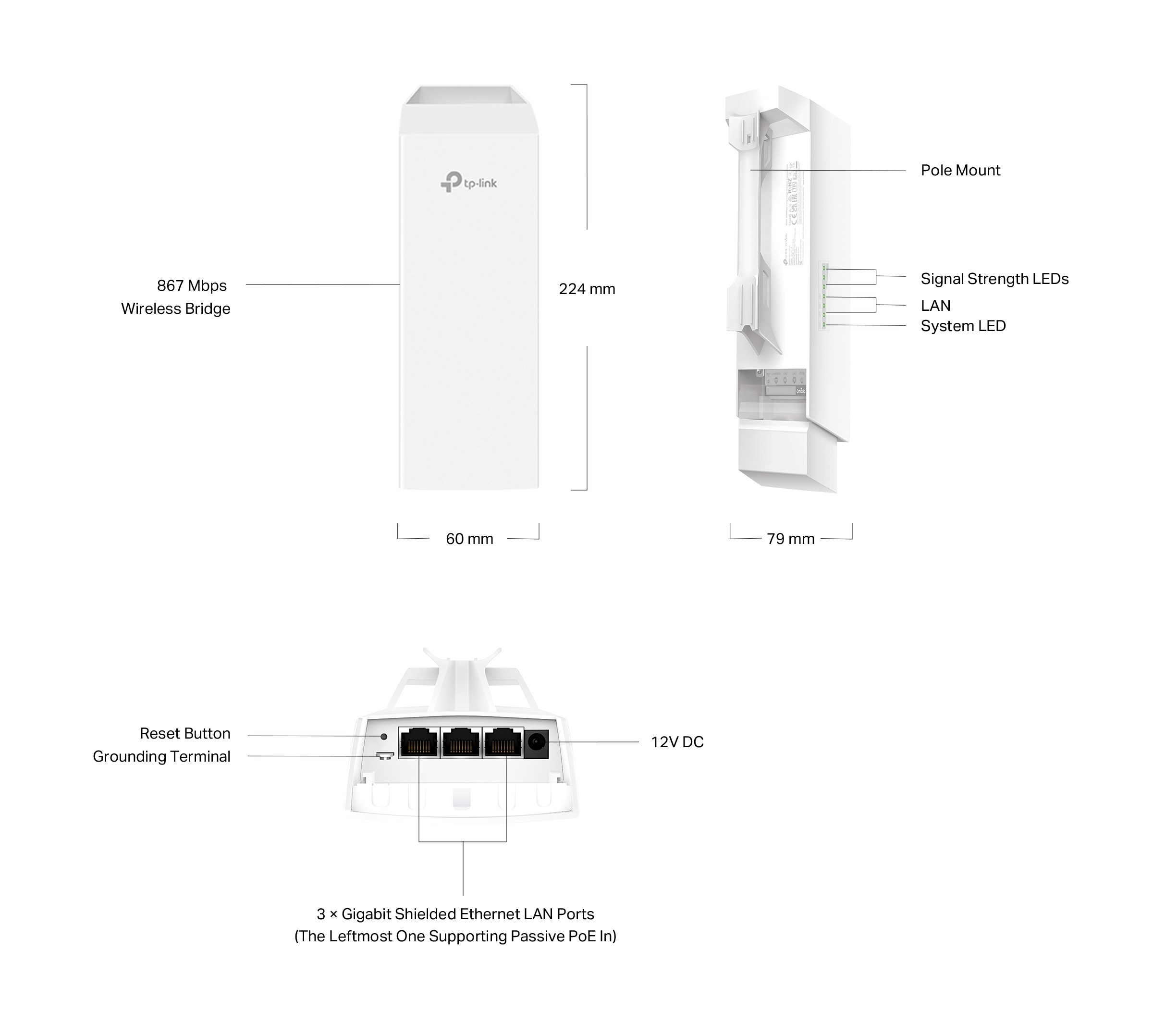

Dimensions ( W x D x H )
8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm)
Antenna Type
Internal 2×2 Dual-polarized directional MIMO antennas
5 GHz: 11.0 dBi
Weatherproof Enclosure
IP65
Mounting
Pole mounting (Accessories included)
WIRELESS FEATURES
Coverage
5000m(16400ft)5
Wireless Standards
IEEE 802.11 a/b/g/n/ac
Frequency
5 GHz
Signal Rate
5 GHz: Up to 867 Mbps
Wireless Functions
• Mesh*4
• MU-MIMO: 5G 2x2 MU-MIMO DL
• Load Balance
• Beamforming
• Airtime Fairness
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP
Wireless Security
• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication*4
• Maximum number of MAC Filter: 4,000
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power
• CE:
<23dBm (5 GHz, band 1/2, EIRP);
<30dBm (5 GHz band3, EIRP);
• FCC:
<22dBm (5 GHz band1/4)
MANAGEMENT
Omada App
Yes
Restore & Backup
Yes
Firmware update via Web
Yes
NTP
Yes
Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access
Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
SSH
Yes
Web-based Management
Yes
OTHERS
Certification
CE, FCC, RoHS
Package Contents
• EAP215-Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit
Environment
• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
