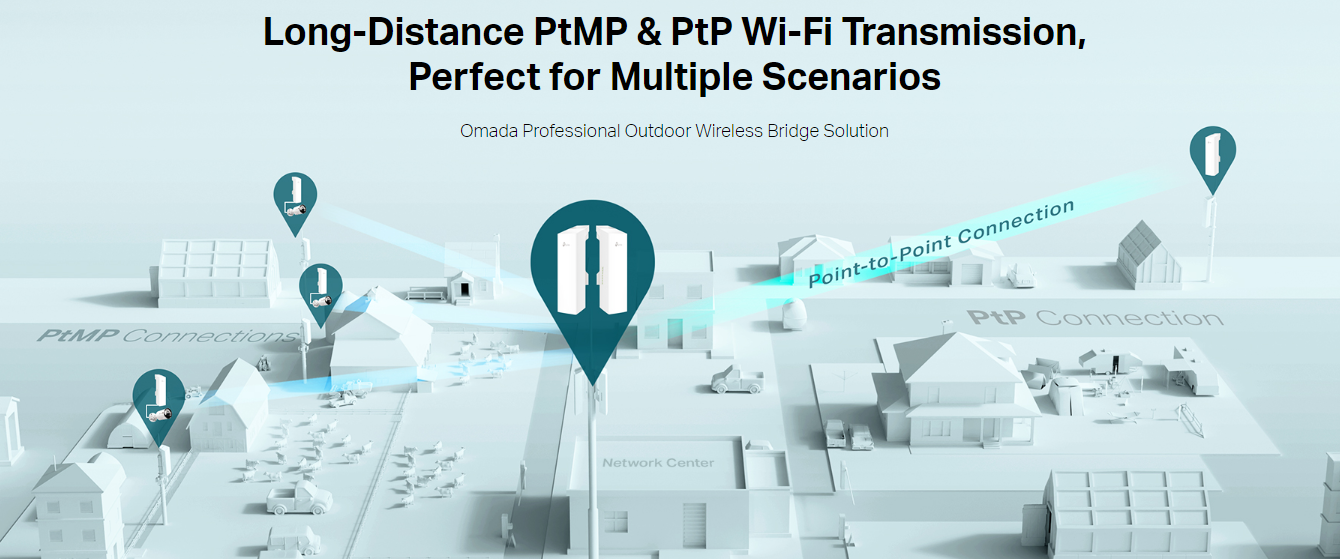

Point-to-Point (PtP) Network Expansion or Remote Camera Monitoring

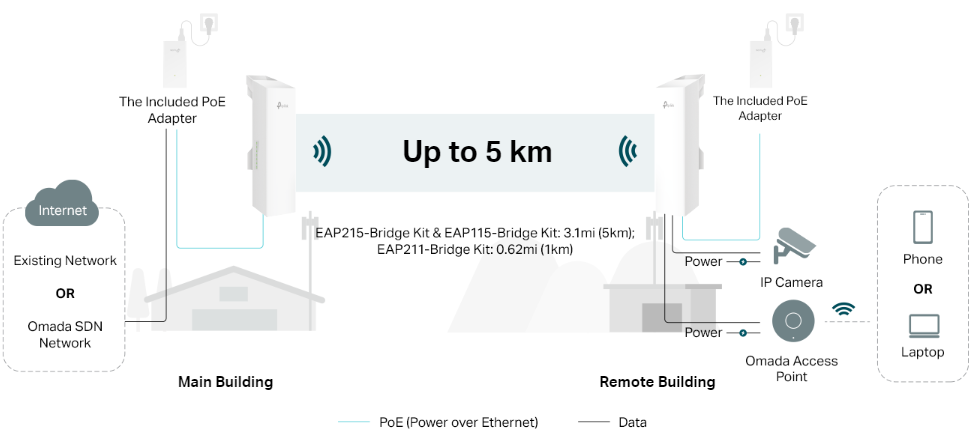

Outdoor PtP (Point-to-Point) Wi-Fi Connection

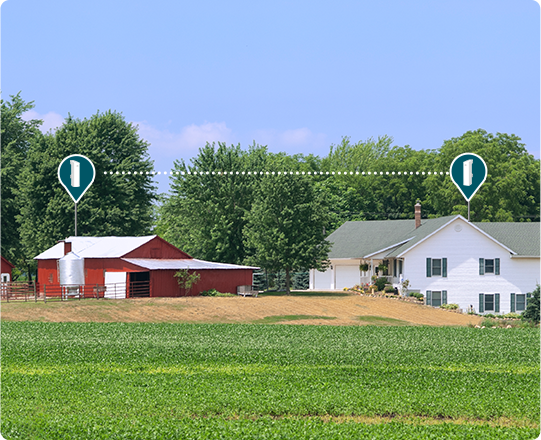

Extend Wi-Fi to Additional Buildings
Extend your home network or Wi-Fi to your shop, barn, garage, farm, storehouse, guesthouse, or RV.

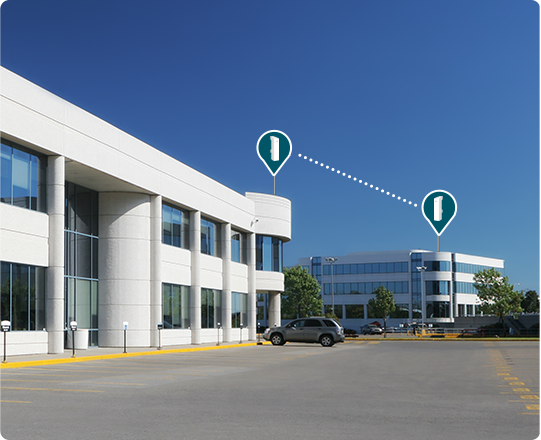

Extend Wi-Fi to Additional Offices
Provide 550Mbps bandwidth within a 328ft (100m) range using the EAP215-Bridge KIT or EAP211-Bridge KIT.*

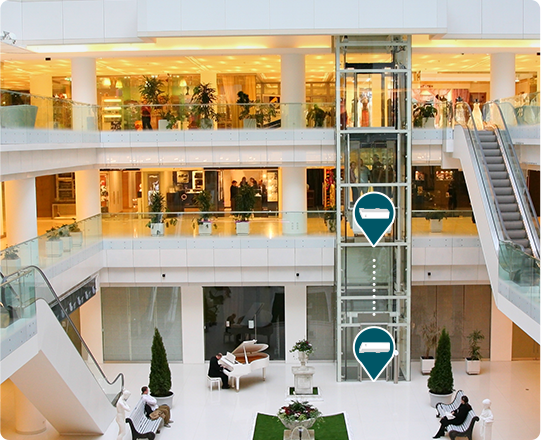

Elevator PtP Wi-Fi for Surveillance
Record real-time video to an NVR with virtually no hardwiring required

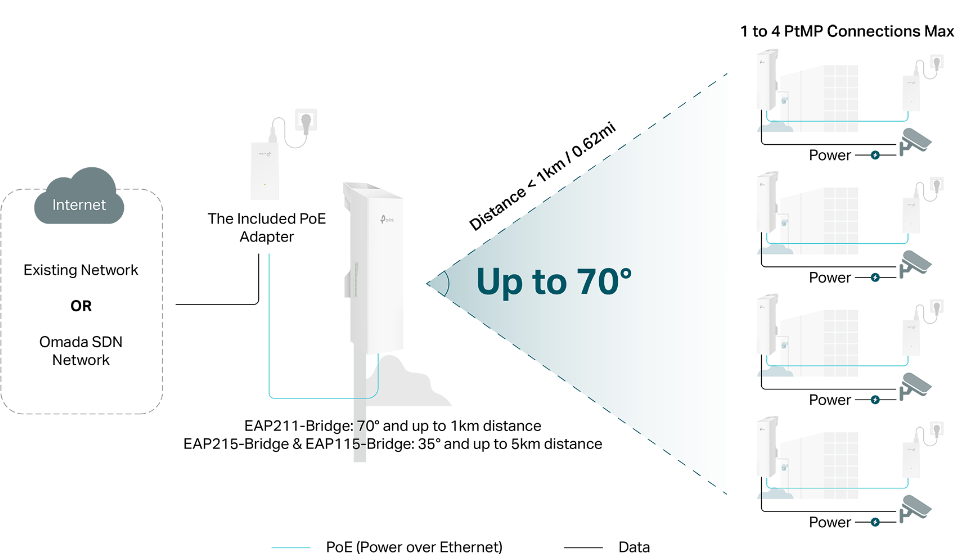

Point-to-Multipoint (PtMP) Connections with Higher Beamwidth for Distributed Cameras
Outdoor PtMP (Point-to-Multipoint) Wi-Fi for Surveillance

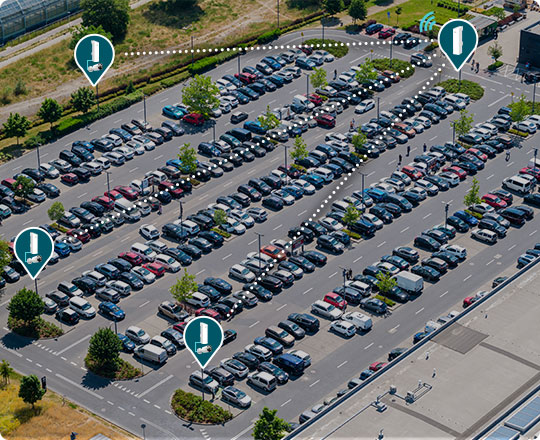

Parking Lots
Remotely connect cameras to reduce crime and accidents

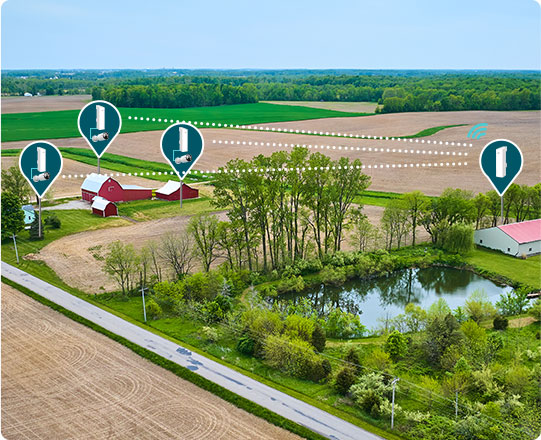

Farms / Orchards
Remotely connect cameras to protect your property

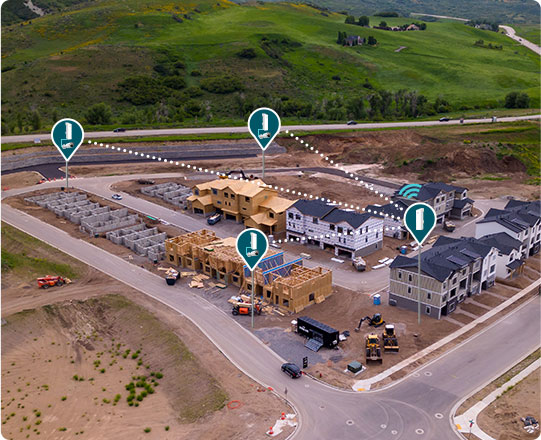

Construction Sites
Rapidly deploy wireless networks to remotely monitor construction progress in real time or manage logistics.

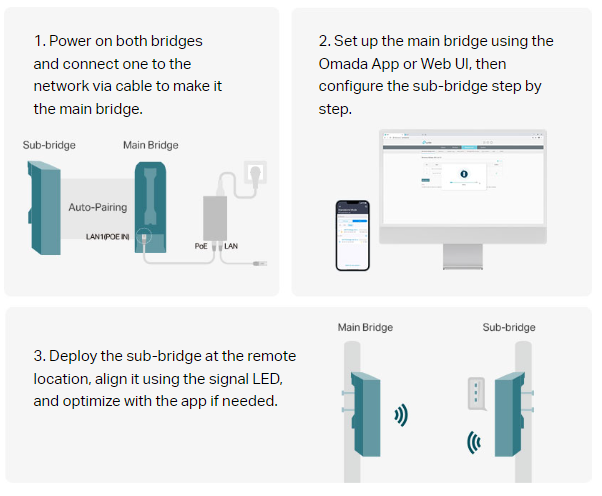

Easy Setup and Installation
Auto-Pairing to Reduce Setup Time
*Auto pairing works for the original kit. Three or more bridges require manual setup.

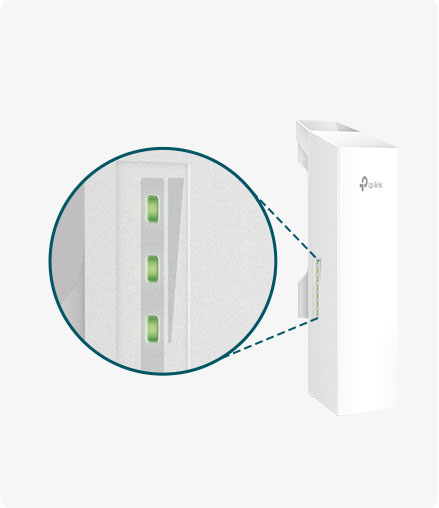

LED Signal Indicator for Easy Alignment

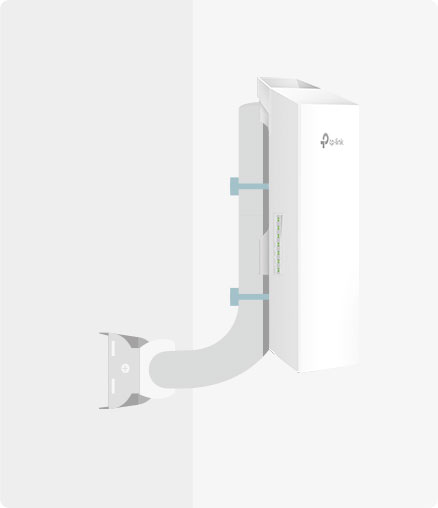

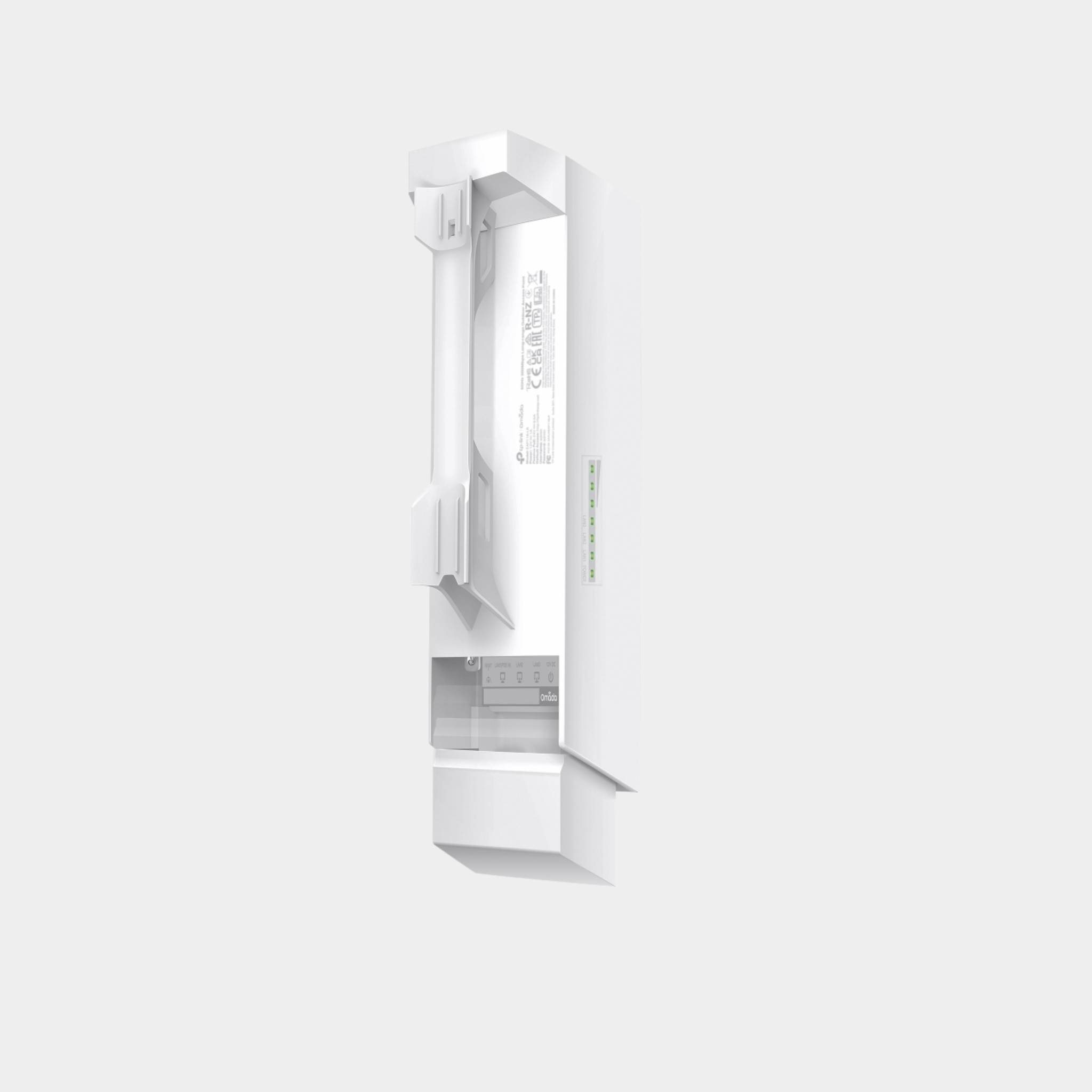

Pole/Wall Mount for Easy Installation
*Pole mounting accessories are included, while the bracket for wall mounting and pole mounting requires purchase separately.
Standalone Mode
Simple Setup for Individual Scenarios

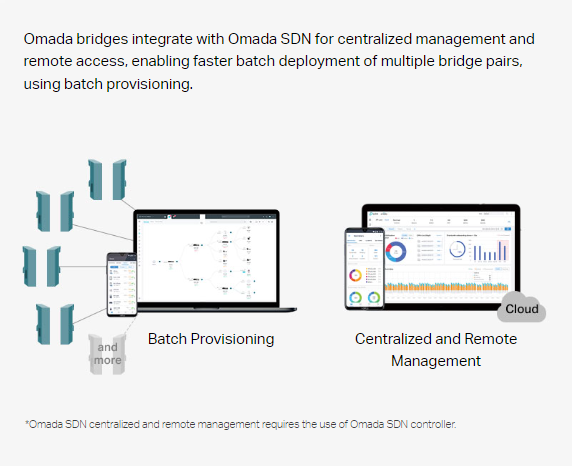

Works with Omada SDN
Faster Batch Deployment and Remote Management

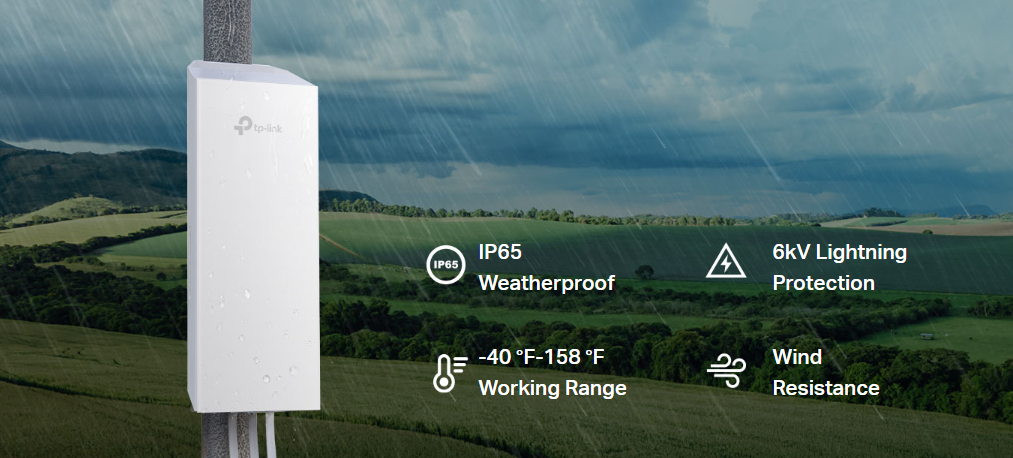

Designed for Outdoors
Dedicated Hardware Design
TECHNICAL SPECIFICATIONSEATURES

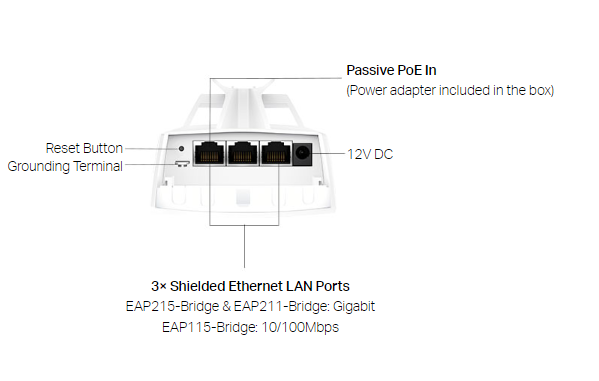

Interface

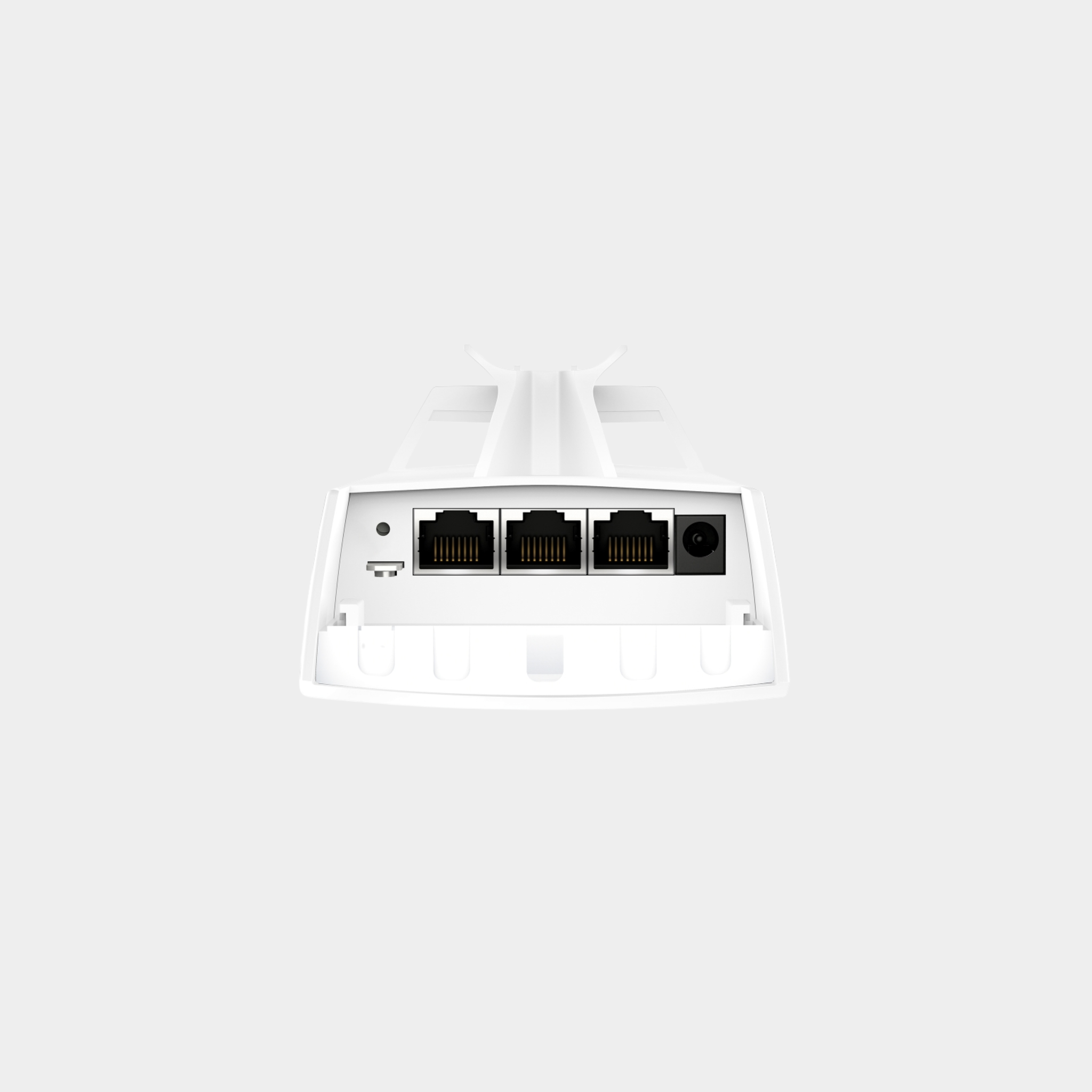

3x 10/100 Mbps Ethernet Ports*6
Button
Reset
Power Supply
12V DC / 24V Passive PoE (Passive PoE adapter included.)
Power Consumption
6.5W

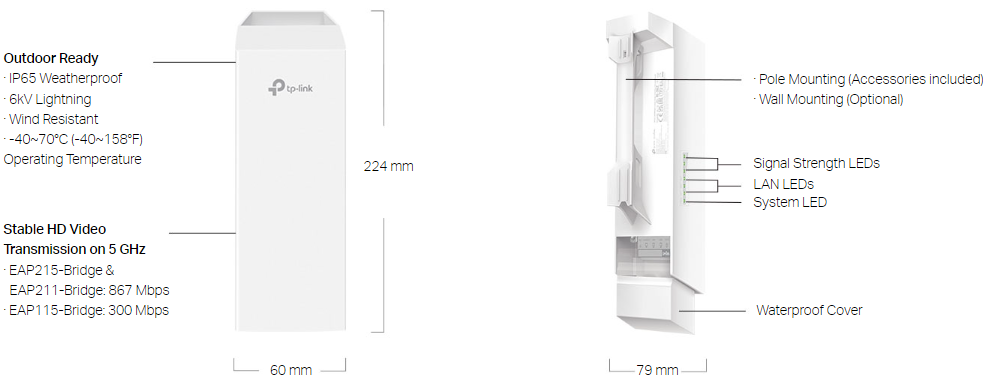

Dimensions ( W x D x H )
3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
Antenna Type
Internal 2×2 Dual-polarized directional MIMO antennas
5 GHz: 11.0 dBi
Horizontal:35°, Vertical: 35°
Weatherproof Enclosure
IP65
Mounting
Pole mounting (Accessories included)
WIRELESS FEATURES
Coverage
5000m(16400ft)5
Wireless Standards
IEEE 802.11 a/b/g/n
Frequency
5 GHz
Signal Rate
5 GHz: Up to 300 Mbps
Wireless Functions
• Mesh*4
• Load Balance
• Beamforming
• Airtime Fairness
• Seamless Roaming(802.11r)
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP
Wireless Security
• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication*4
• Maximum number of MAC Filter: 4,000
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power
• CE:
<23dBm (5 GHz, band 1/2, EIRP);
<30dBm (5 GHz band3, EIRP);
• FCC:
<22dBm (5 GHz band1/4)
MANAGEMENT
Omada App
Yes
Restore & Backup
Yes
Firmware update via Web
Yes
NTP
Yes
Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access
Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
SSH
Yes
Web-based Management
Yes
OTHERS
Certification
CE, FCC, RoHS
Package Contents

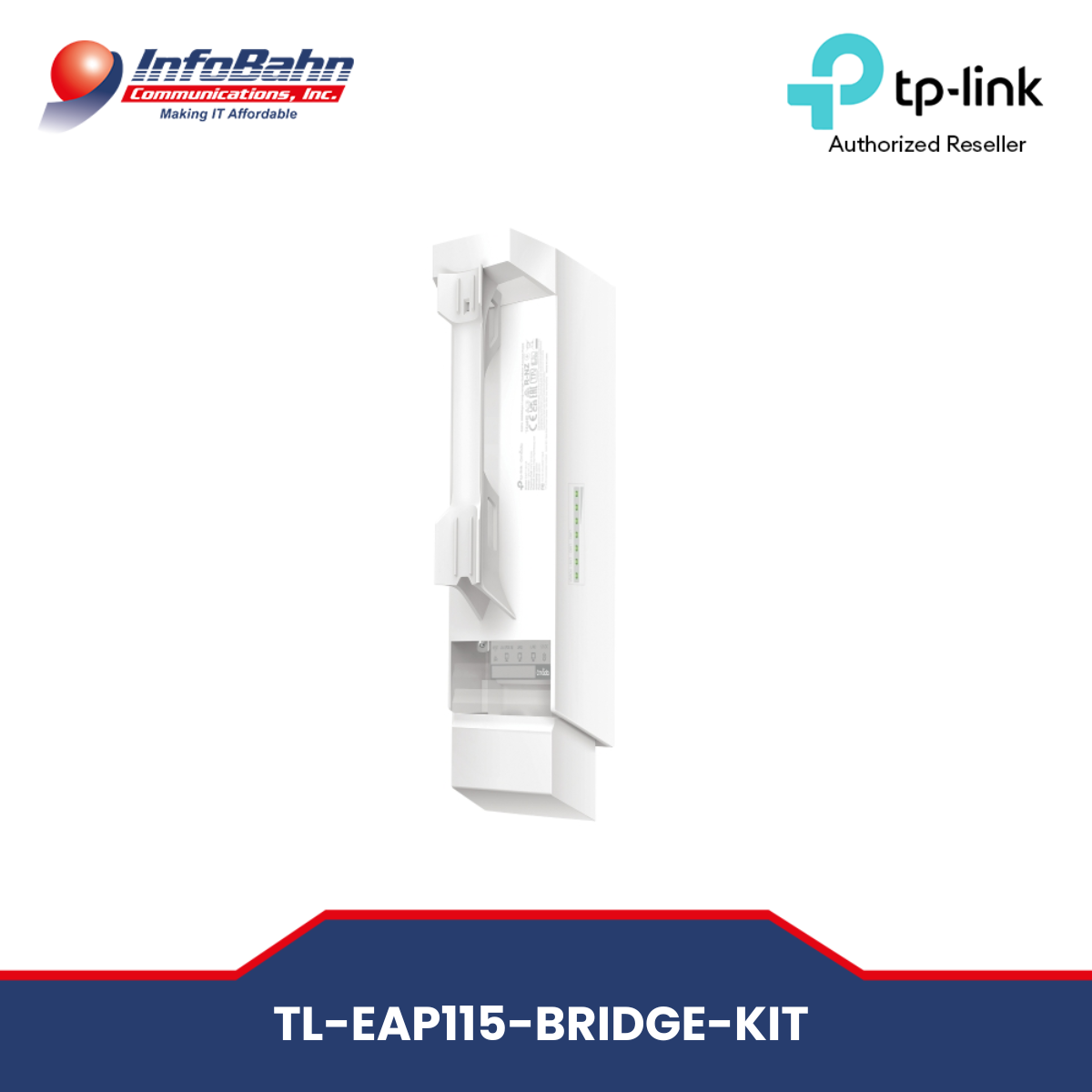

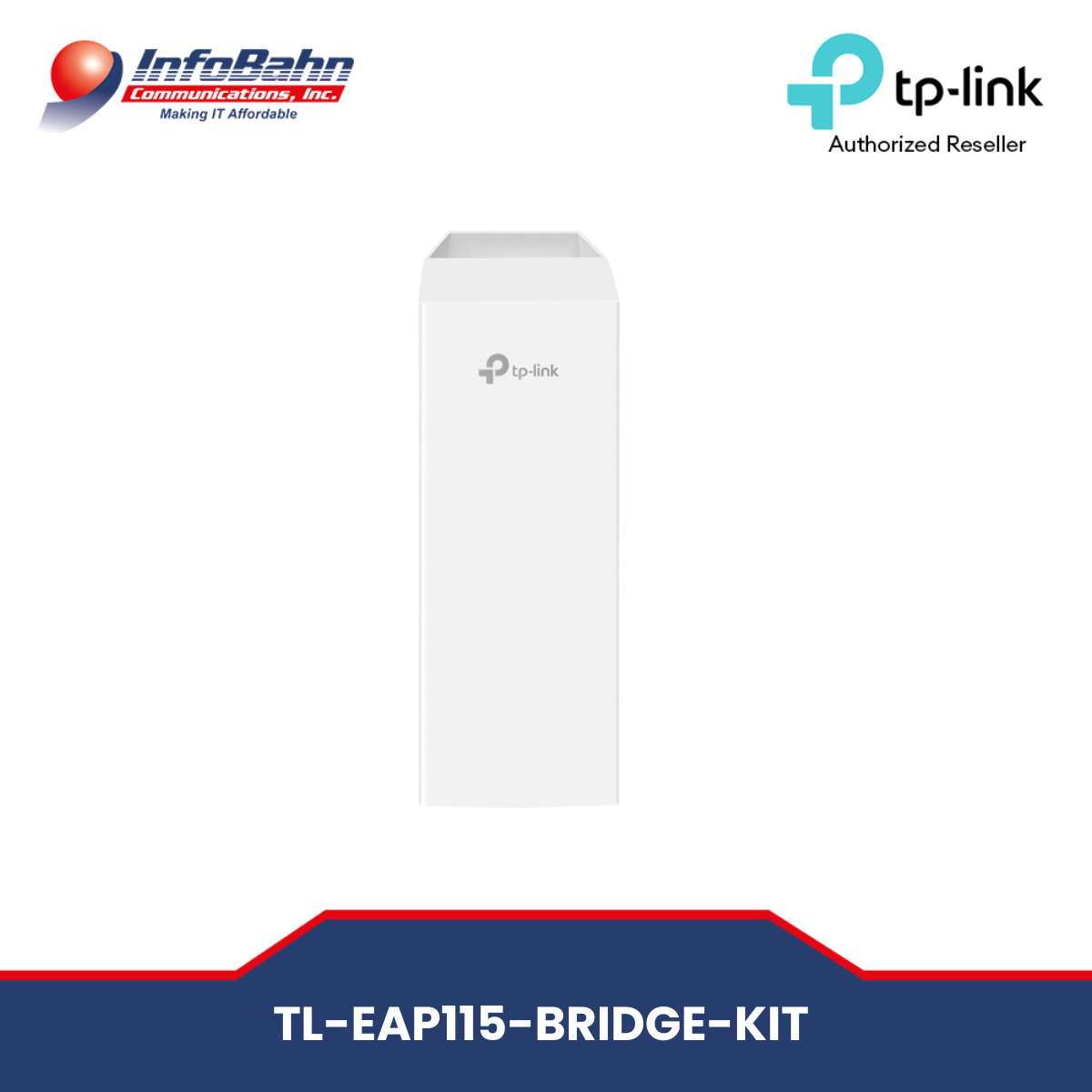

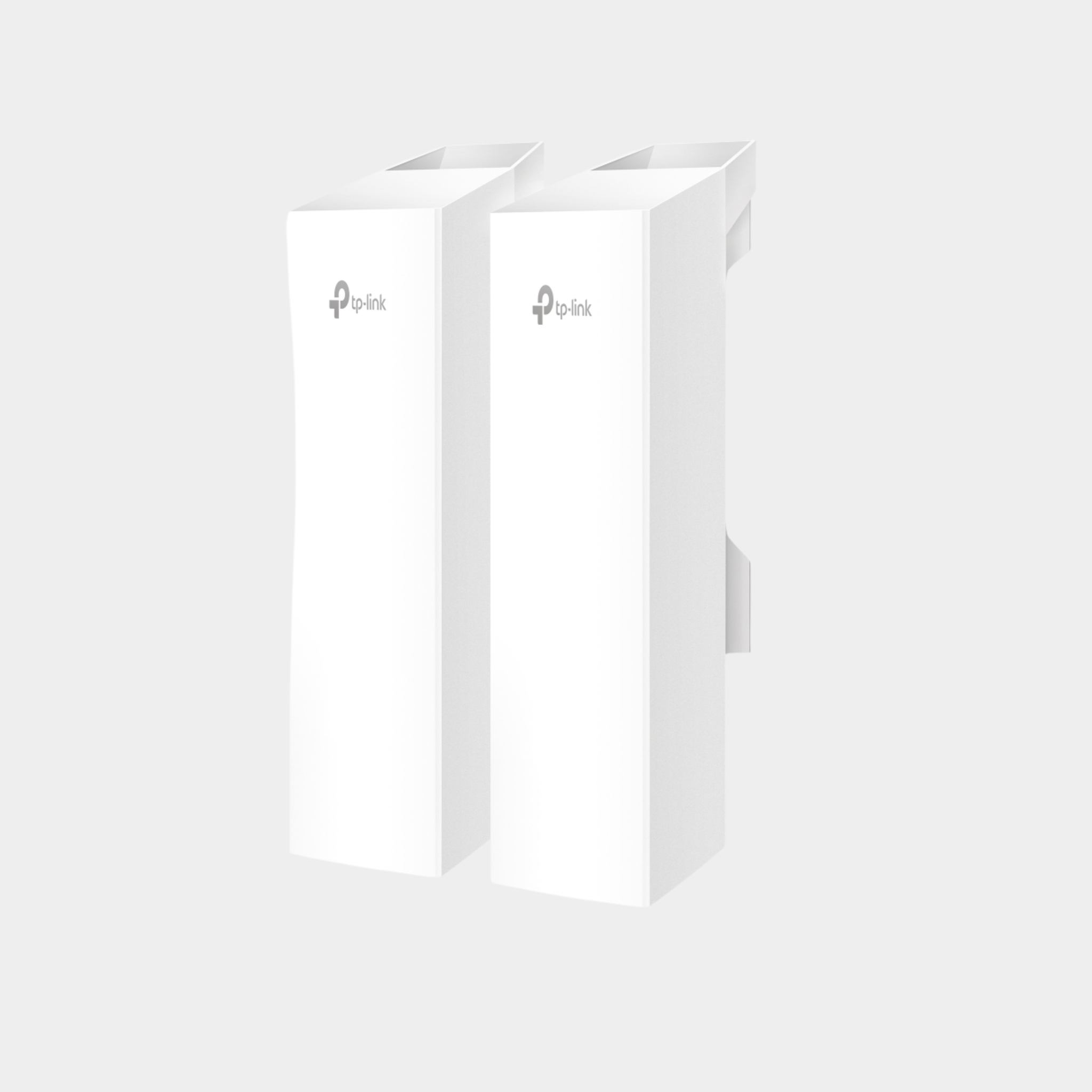

• EAP115-Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit
Environment
• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
