* High-Speed Connectivity: Supports up to [insert speed, e.g., 1 Gbps / 10 Gbps] for seamless data transfer.
* Wi-Fi Standard: Compatible with Wi-Fi 6 (802.11ax) for faster, more efficient wireless performance.
* Centralized Management: Full UniFi OS support for easy network monitoring and control.
* Advanced Security: Built-in firewall and threat management to protect your network.
* Compact & Lightweight: Box dimensions 25×20×7 cm, device weight ~1.2 kg, perfect for desktop or rack placement.
* Scalable Network: Easily expands with additional UniFi devices for growing networks.
Technical Specifcation:
Dimensions
141.8 x 127.6 x 30 mm
(5.6 x 5 x 1.2")
UniFi Application Suite
Network
✓
Protect
✓
Access
✓
Talk
✓
Connect
✓
Managed UniFi Devices
30+
Managed Cameras
(15) HD
(8) 2K
(5) 4K
Managed Access Hubs
50
Simultaneous Users Connected
300+
Max. WAN Port Count
4
Default WAN Ports
(1) 2.5 GbE RJ45

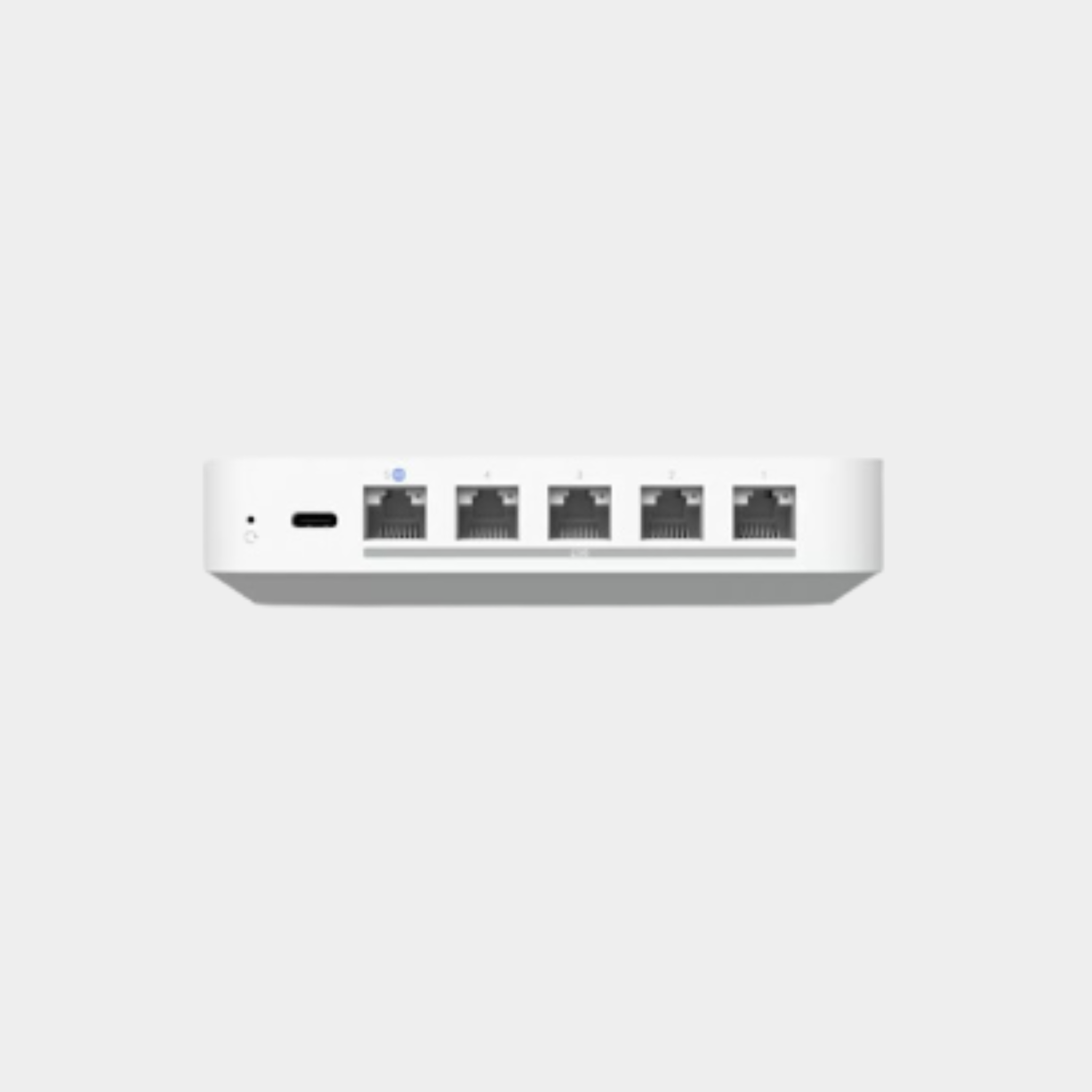

Port Layout
2.5 GbE RJ45
5
(2.5G/1G/100M/10M)
IDS/IPS Throughput
2.3 Gbps
Form Factor
Compact desktop
Security
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
55,000+
with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓
VPN & SD-WAN
License-Free SD-WAN
✓
Site-to-Site VPN
Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server
Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client
OpenVPN
✓
WireGuard
✓
Networking
Multi-WAN Load Balancing
✓
Dynamic Routing
OSPF
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
2,000
Policy-based WAN and VPN Routing
✓
Customizable DHCP Server
✓
IPv6 ISP Support
✓
IGMP Proxy
✓
Virtual Network Override
✓
All Traffic Flows
✓
Hardware
NVR Storage
Selectable NVMe SSD up to 2 TB
Max. Power Consumption
16.1W
Power Method
USB type C (5V DC/5A)
Power Supply
USB type C (5V DC/5A) (Adapter included)
Supported Voltage Range
100–240V AC
Heat Dissipation
55 BTU/hr
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory
3 GB
Weight
Without SSD: 460 g (1 lb)
With SSD: 519 g (1.1 lb)
Enclosure Material
Polycarbonate

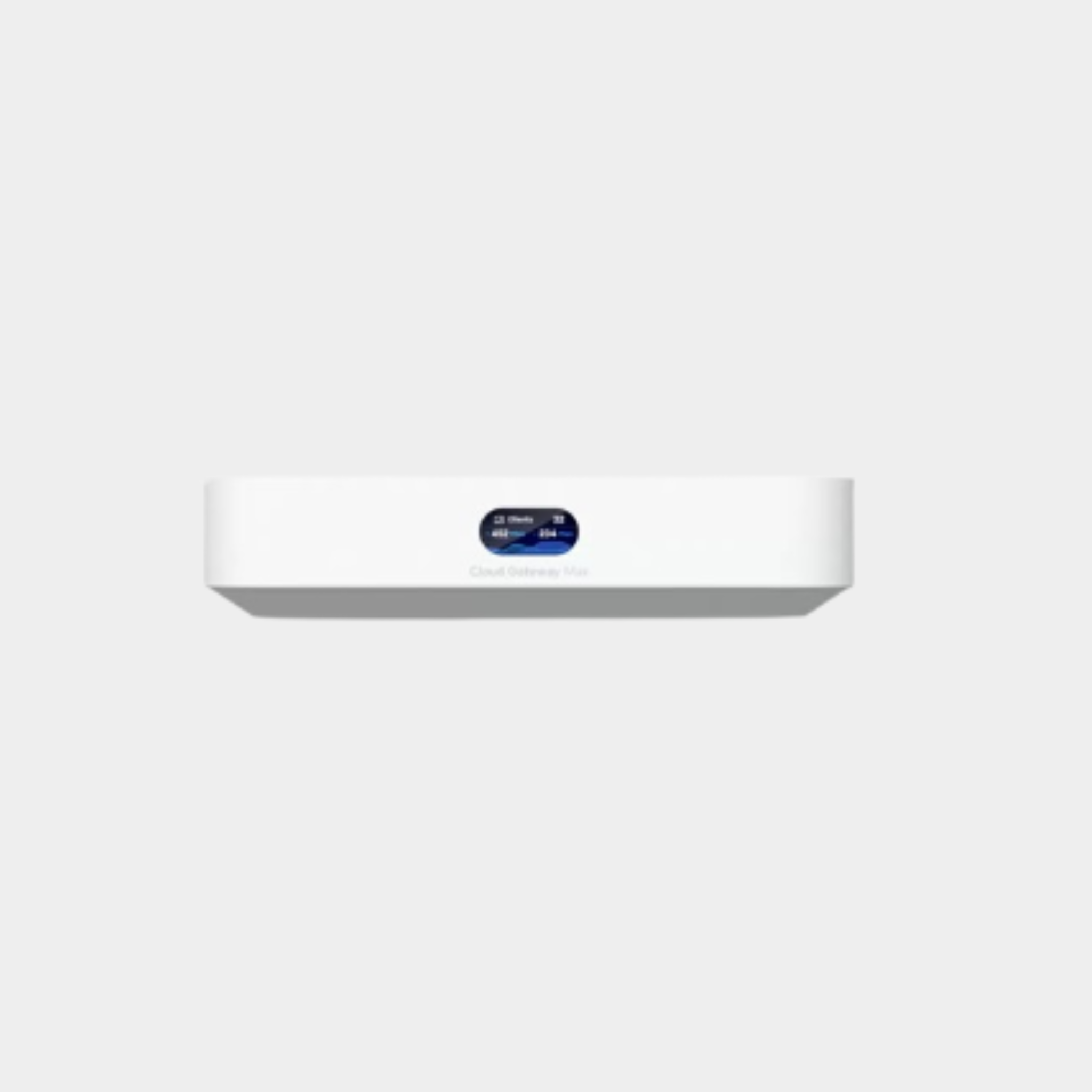

LCM Display
0.96" status display
Management
Ethernet
Bluetooth
LEDs
Ethernet
✓
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 09004-24-08356, SRRC
Software
Application Requirements
Mobile App
UniFi iOS™ and Android™: Version 10.17.2 and later
Warranty
7-Day Replacement Warranty
The unit is eligible for a one-time, same-item replacement within seven (7) days from the date of receipt or delivery, subject to the following conditions:
✓ The item must be in its original, unused condition.
✓ All original packaging and accessories must be included.
✓ A valid proof of purchase (receipt) is required.
Note: Physical damage or customer-induced damage is not covered.
