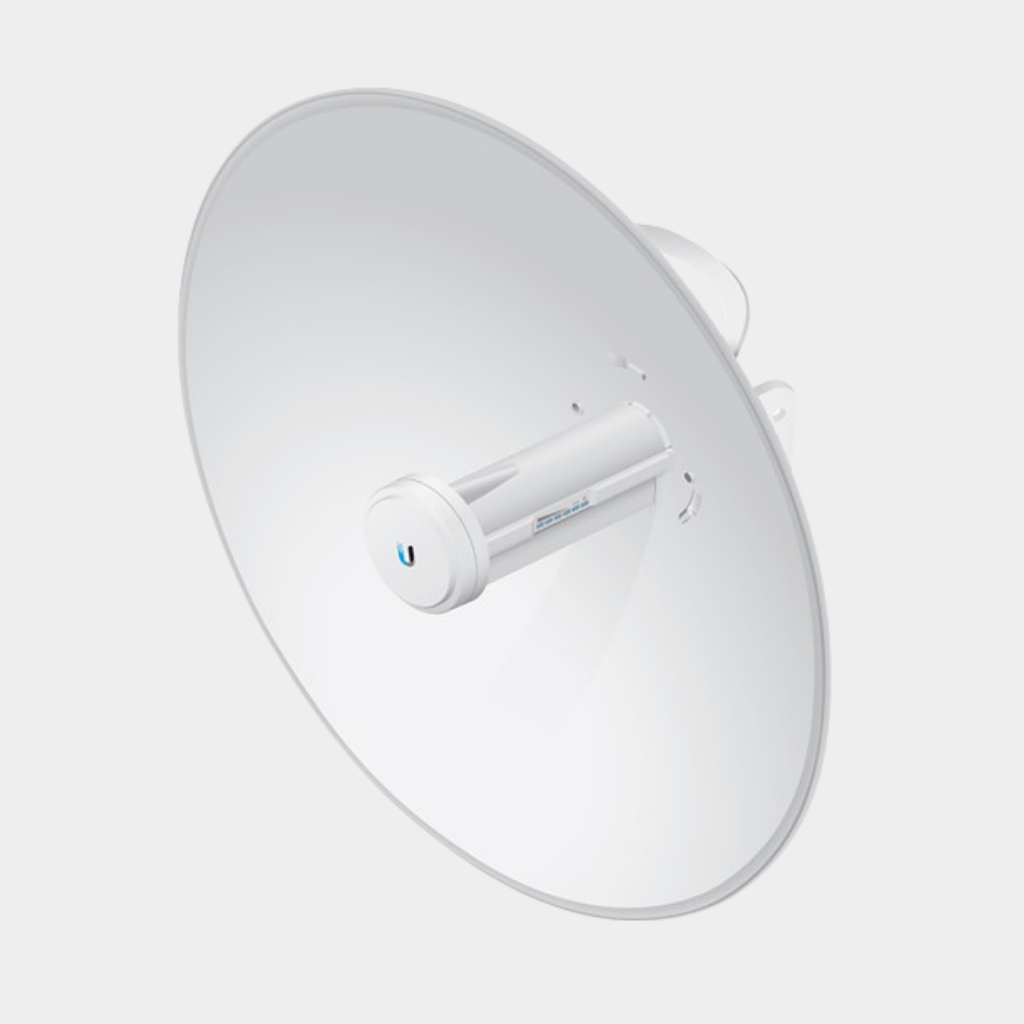

With tighter beamwidth and a dedicated Wi-Fi radio for management, the airMAX PowerBeam AC 5 GHz Gen2 High Performance Bridge from Ubiquiti Networks offers a more reliable long-distance point-to-point connection. This radio is designed to filter out noise to reduce interference in areas congested with multiple RF signals at a maximum data transfer rate of over 450 Mb/s. Setup is simple thanks to fully adjustable hardware designed to make it easy to adjust the mounting bracket ±20° along with the ability to detach the antenna feed with the push of a button.
Features
- Dedicated Wi-Fi Radio for Management
- 5 GHz Frequency
- 25 dBi Gain
- 1 x Gigabit Ethernet Network Interface
- MIPS 74Kc Processor
- Power, Ethernet, Signal Strength LEDs
- Outdoor UV Stabilized Plastic Antenna
- 125 mph Wind Loading / Survivability
- ±24kV ESD/EMP Protection
- Includes Pole-Mounting Kit
Technical Specifications
Wireless
Wireless Frequency Bands 5 GHz MU-MIMO Support Yes WLAN Mode Wi-Fi 5 (802.11ac) Antenna Gain 25 dBi Bluetooth None Throughput 450 Mb/s Total
Interface
Ports 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE
Hardware
RAM 64 MB CPU MIPS 74Kc
Electrical
DC Input Power 22 to 26 VDC at 0.5 A Power Consumption 8.5 W
Environmental
Operating Temperature -40 to 158°F / -40 to 70°C Operating Humidity 5 to 95%
General
Certifications CE, FCC, IC, RoHS, as per Manufacturer Mount Options Pole Dimensions 16.54 x 16.54 x 9.06" / 420 x 420 x 230 mm Weight 4.89 lb / 2.22 kg
MechanicalDimensions
420 x 420 x 230mm (16.54 x 16.54 x 9.06")
Weight
2.22 kg (4.89 lb)
Enclosure Materials
Antenna Feed: Outdoor UV-Stabilized Plastic
Dish Reflector: Powder-Coated SPCC
Wind Loading
380 N at 200 km/h (85.4 lbf at 125 mph)
Wind Survivability
200 km/h (125 mph)
Mounting
Pole-Mount (Kit Included)
HardwareNetworking Interface
(1) 10/100/1000 Ethernet Port
Gain25 dBiProcessorMIPS 74KcMax. Power Consumption8.5WPower Supply
24V, 0.5A Gigabit PoE Adapter (Included)
Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range20 to 26VDCOperating Temperature
-40 to 70 C (-40 to 158 F)
Operating Humidity
5 to 95% Noncondensing
CertificationsCE, FCC, IC
Operating Frequency (MHz)
Worldwide5150-5875USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-35150-5250
5250-5350
5240-5725
5725-5850
Management Radio (MHz)
Worldwide2412 - 2472US/CA2412 - 2462
