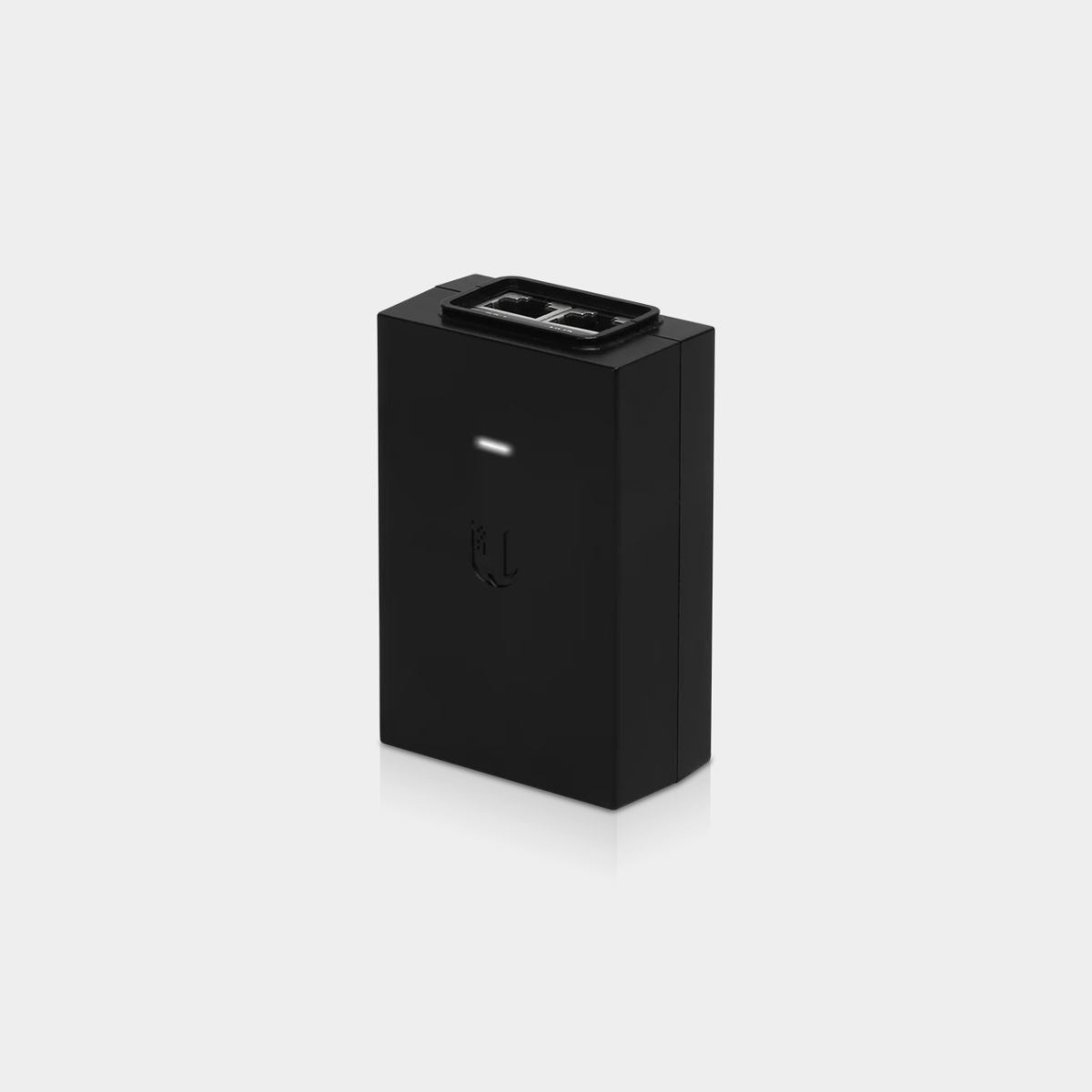

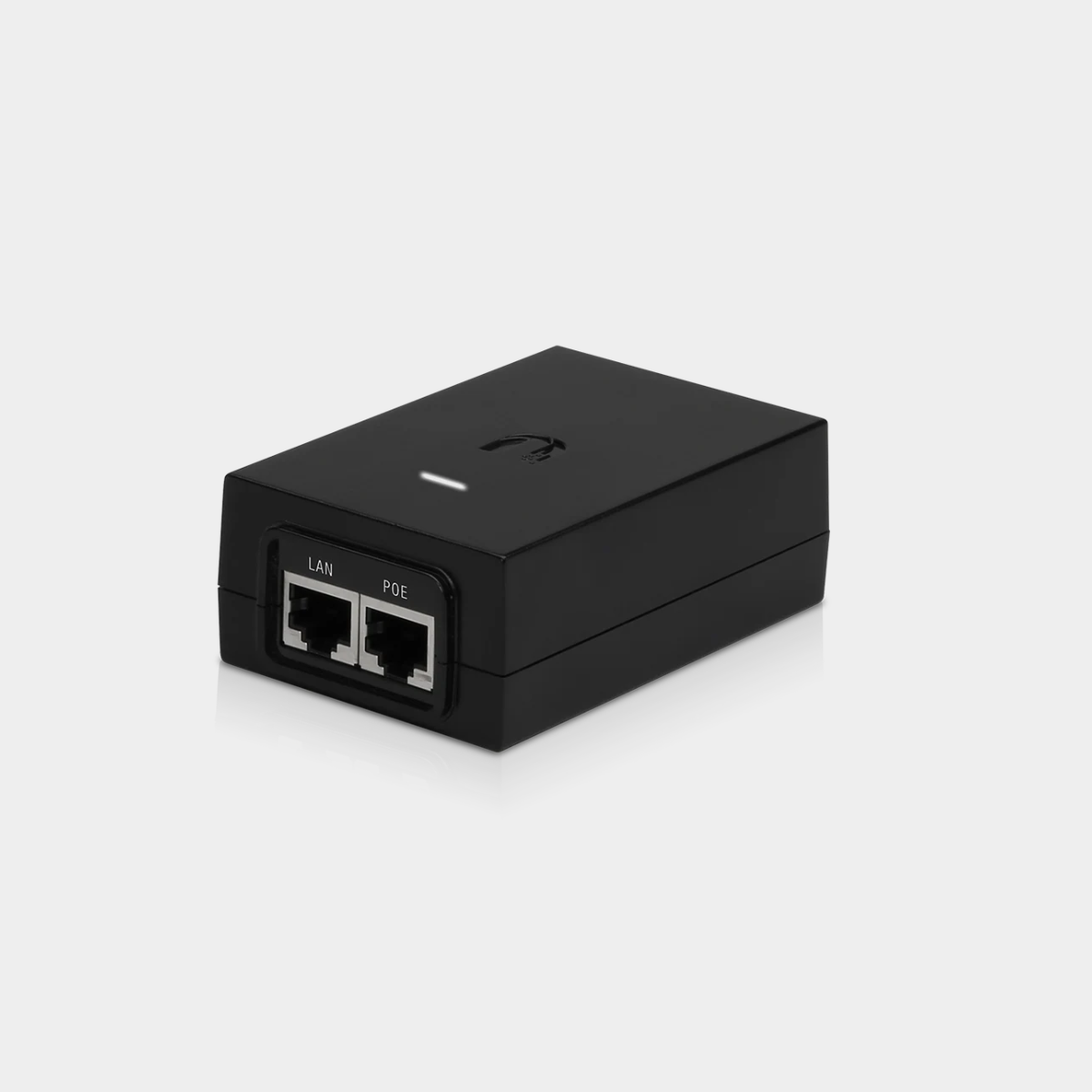

PoE Injector, 48VDC, 24W
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
Surge protection
Clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.
Technical Specifications
| Dimensions | 92 x 60 x 33 mm (3.62 x 2.36 x 1.30") |
| Weight | 158.5 g (5.59 oz) |
| Output Voltage | 48VDC @ 0.5A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <65A Peak @ 120VAC, <130A Peak @ 230VAC |
| Efficiency | 0.8 |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | – |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |

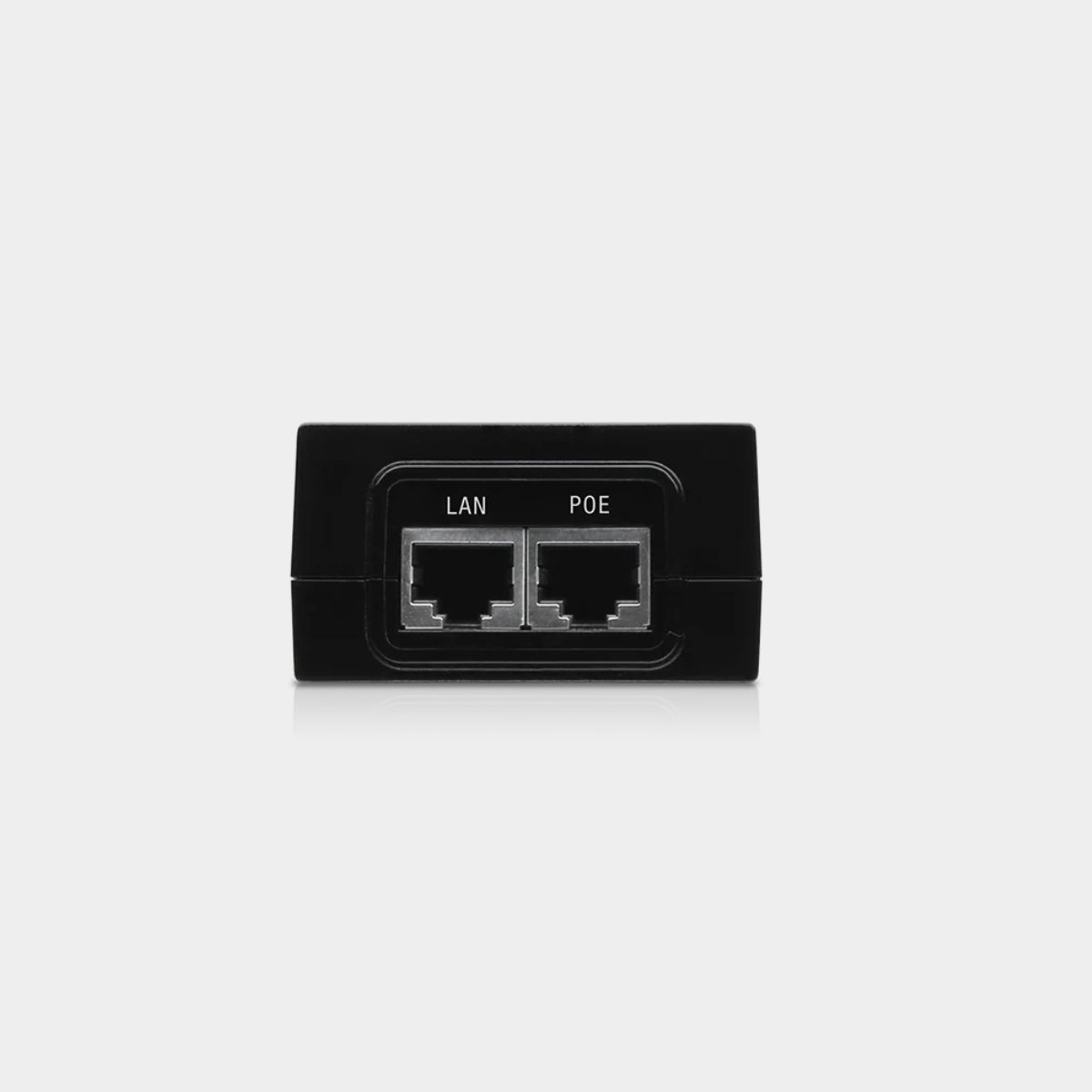

| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
