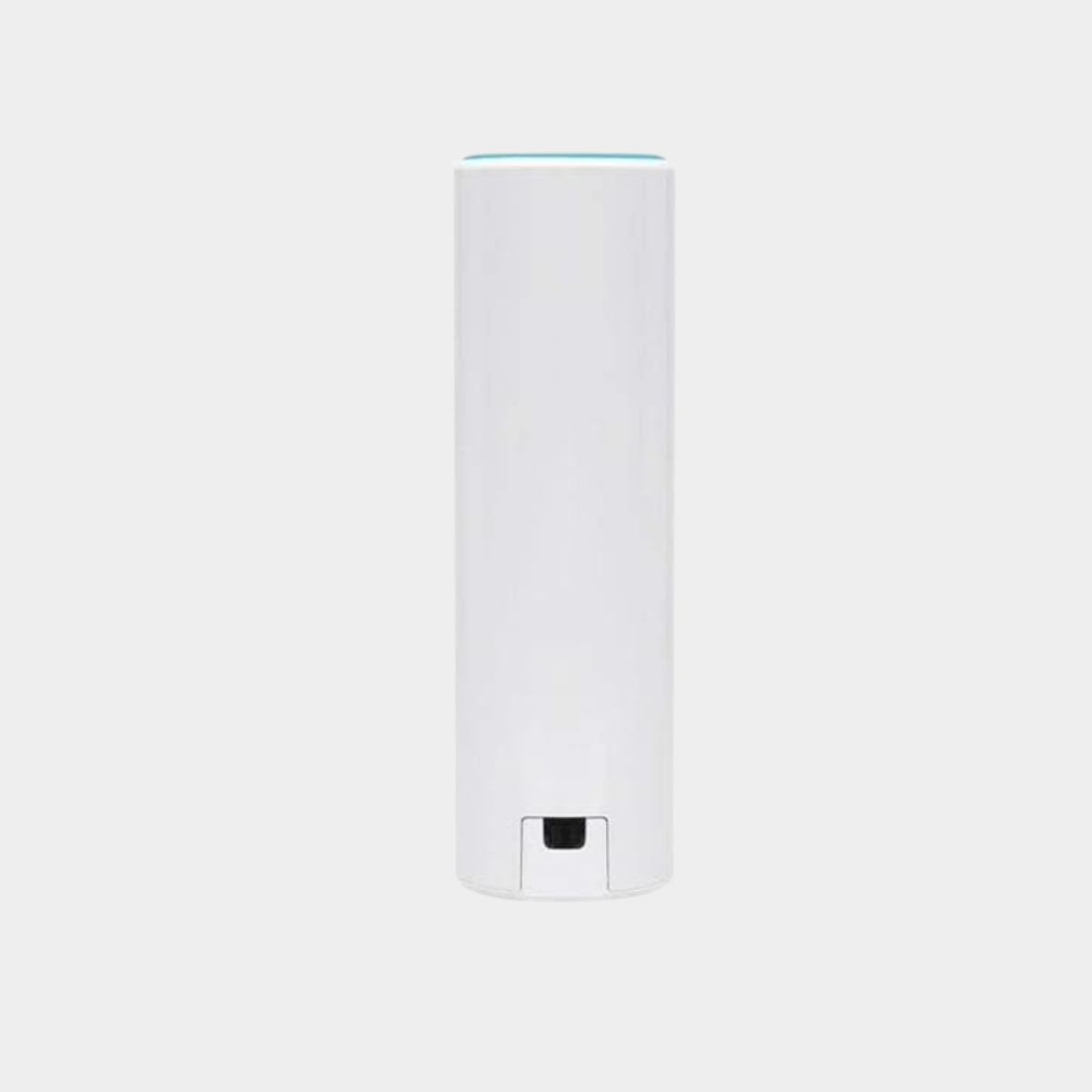

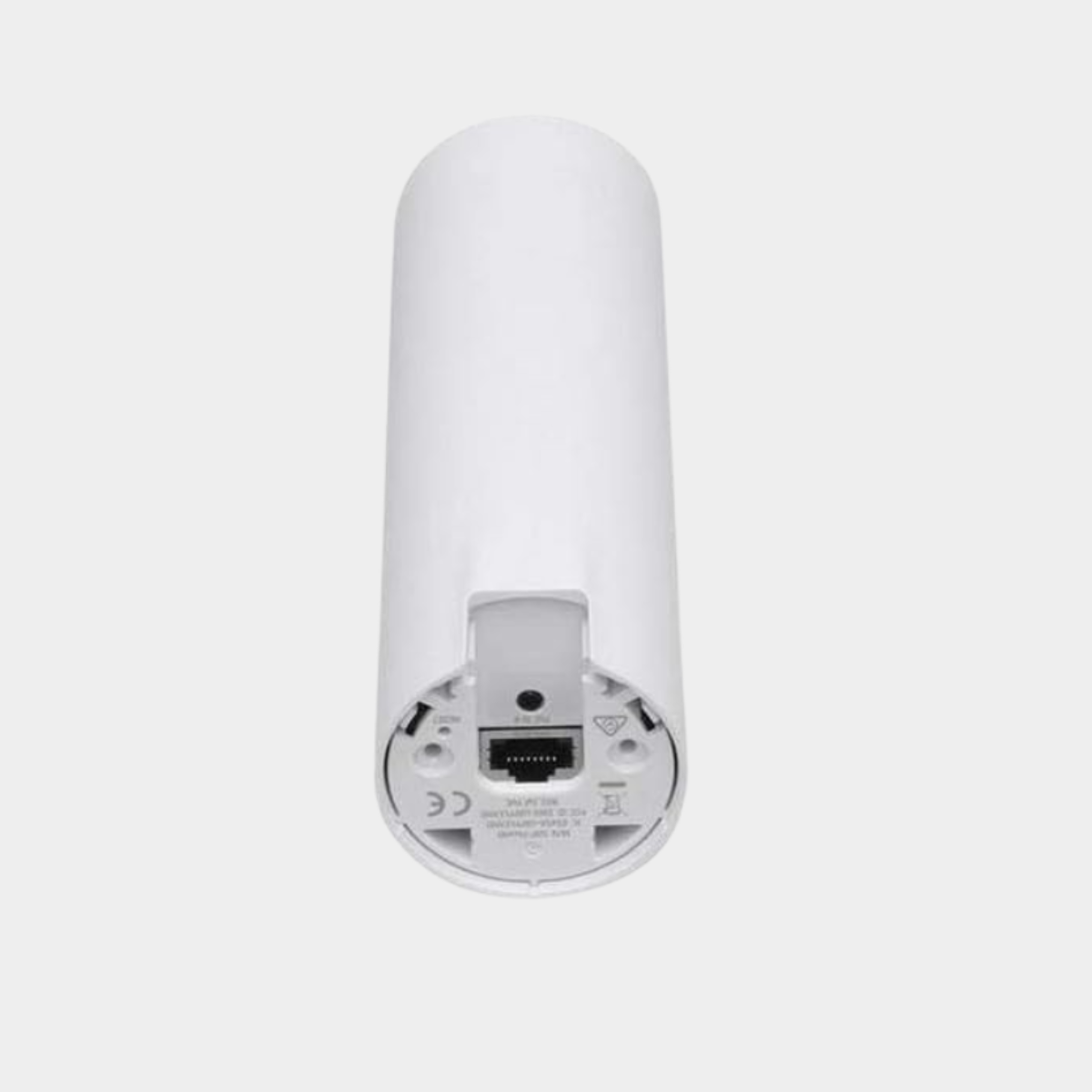

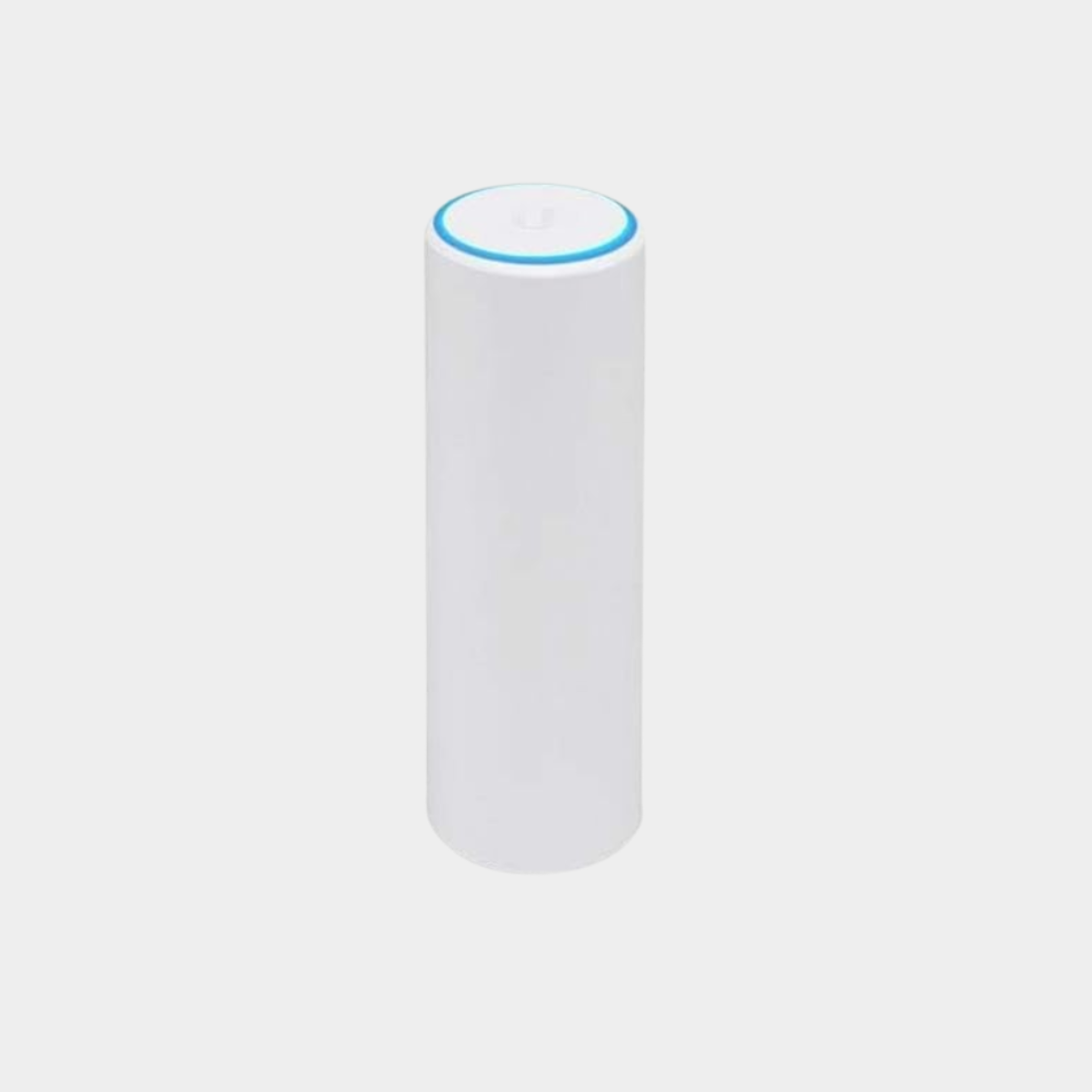

The UAP-FlexHD, manufactured by Ubiquiti Networks, is a high-performance access point renowned for its reliability and scalability within the UniFi product line. With its sleek design and adaptable mounting options, it suits diverse deployment needs. Delivering swift and dependable wireless connectivity, it incorporates advanced features such as beamforming technology to enhance signal strength. Seamlessly integrating with the UniFi controller software facilitates effortless management and monitoring. Consequently, it's a favored option for those seeking to enhance their wireless networks with a robust and adaptable access point.
Technical Specifications
Dimensions
⌀48.5 x 159.5 mm
(⌀1.9 x 6.3")
WiFi Standard
WiFi 5
Spatial Streams
6
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
200+
Uplink
GbE
Mounting
Wall, Pole, Table
(Mounts Included)
Power Method
PoE
Performance
MIMO
5 GHz
4 x 4 (DL MU-MIMO)
2.4 GHz
2 x 2 (DL MU-MIMO)
Max. Data Rate
5 GHz
1.7 Gbps (BW80)
2.4 GHz
300 Mbps (BW40)
Antenna Gain
5 GHz
4 dBi
2.4 GHz
1.6 dBi
Max. TX Power
5 GHz
26 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11n
6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40)
Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Hardware
Max. Power Consumption
10.5W
Includes PoE Adapter
✓
Supported Voltage Range
44–57V DC
Networking Interface
(1) GbE RJ45 port
Weight
315 g (11.1 oz)
Management
Ethernet
LEDs
System
Status
Channel Bandwidth
HT 20/40, VHT 20/40/80/160 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 05383-20-08356
Operating Frequency
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
Worldwide:
2400 - 2483.5 MHz
5150 - 5850 MHz
Ambient Operating Temperature
-30 to 70° C (-22 to 158° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 6.0.45 and later
Warranty
7-Day Replacement Warranty
The unit is eligible for a one-time, same-item replacement within seven (7) days from the date of receipt or delivery, subject to the following conditions:
✓ The item must be in its original, unused condition.
✓ All original packaging and accessories must be included.
✓ A valid proof of purchase (receipt) is required.
Note: Physical damage or customer-induced damage is not covered.
