Ubiquiti Networks Ubiquiti U7-Outdoor-US UniFi AP 7 Outdoor US (U7-OUTDOOR)

All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.

Features

• WiFi 7
• 4 spatial streams
• 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
• Software-adjustable antenna beamwidth for balanced coverage with the included omni antennas
• 200+ connected devices
• Powered using PoE+
• 2.5 GbE uplink

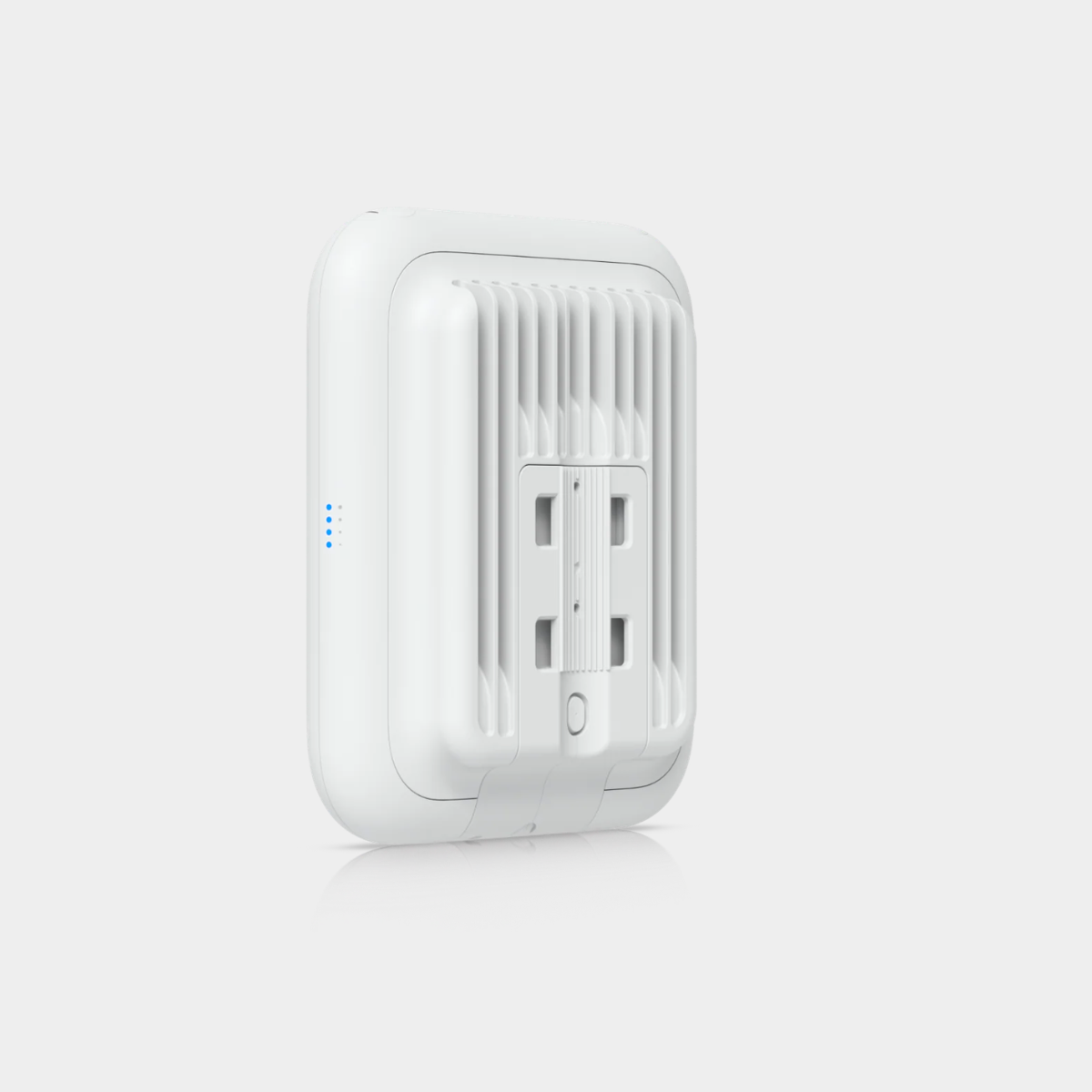

• Versatile wall and pole mounting
• Weatherproof (outdoor exposed)





  Technical Specifications




  Dimensions	170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
  Weight	1.2 kg (2.6 lb)
  Enclosure material	UV-stabilized polycarbonate, aluminum alloy
  Mount material	Polycarbonate, SGCC steel
  Pole mount diameter	25–60 mm (1–2.36") on pipe outer diameter
  Wind survivability	74.6 N at 200 km/h (16.8 lbf at 125 mph)
  Weatherproofing	IPX6
  Hardware
  Networking interface	(1) 1/2.5 GbE RJ45 port
  Management interface	Ethernet
  Power method	PoE+
  Power supply	UniFi PoE Switch
  Supported voltage range	42.5—57V DC
  Max. power consumption	19W
  Max. TX power 2.4 GHz 5 GHz 6 GHz	23 dBm 26 dBm –
  MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) –
  Max. data rate 2.4 GHz 5 GHz 6 GHz	688 Mbps (BW40) 4.3 Gbps (BW240) –
  Antenna gain 2.4 GHz 5 GHz 6 GHz	Directional internal: 8 dBi/External omni: 3 dBi Directional internal: 12.5 dBi/External omni: 4 dBi –
  Antenna beamwidth 2.4 GHz 5 GHz 6 GHz	90° 45° –

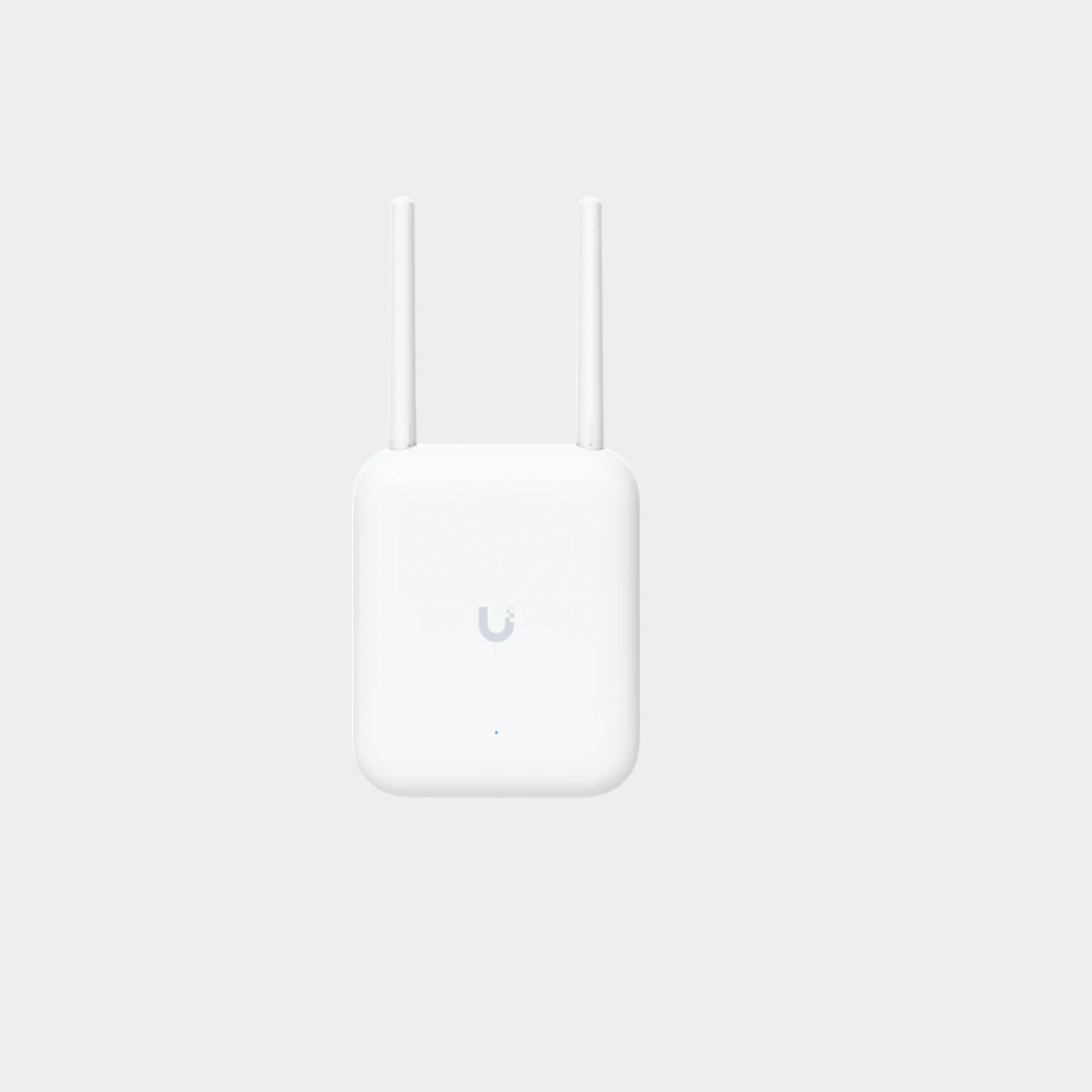

  Antennas	(1) Directional internal antenna (2) External omni antennas (2) RP-SMA connectors for external antenna
  LEDs	(1) Power: white/blue (4) Mesh signal: blue
  Button	Factory reset
  Mounting	Wall, ceiling, pole (Included)
  Ambient operating temperature	-30 to 60° C (-22 to 140° F)
  Ambient operating humidity	5 to 95% noncondensing
  Certifications	CE, FCC, IC
  Software
  WiFi standards	802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
  Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
  BSSID	8 per radio
  VLAN	802.1Q
  Advanced QoS	Per-user rate limiting
  Guest traffic isolation	Supported
  Concurrent clients	200+
  Supported Data Rates
  802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
  802.11b	1, 2, 5.5, 11 Mbps
  802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
  802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
  802.11ac	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
  802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
  802.11be (WiFi 7)	7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
