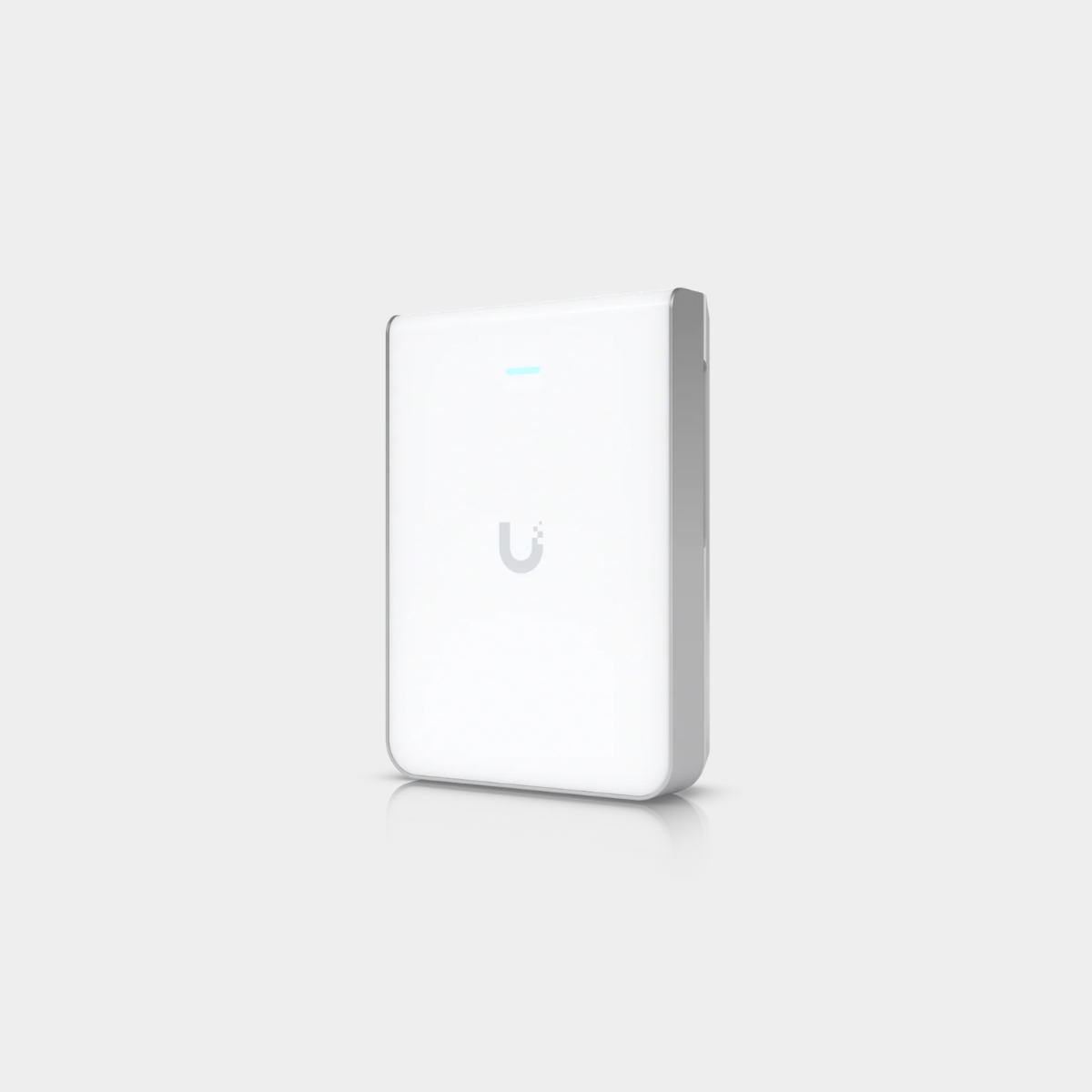

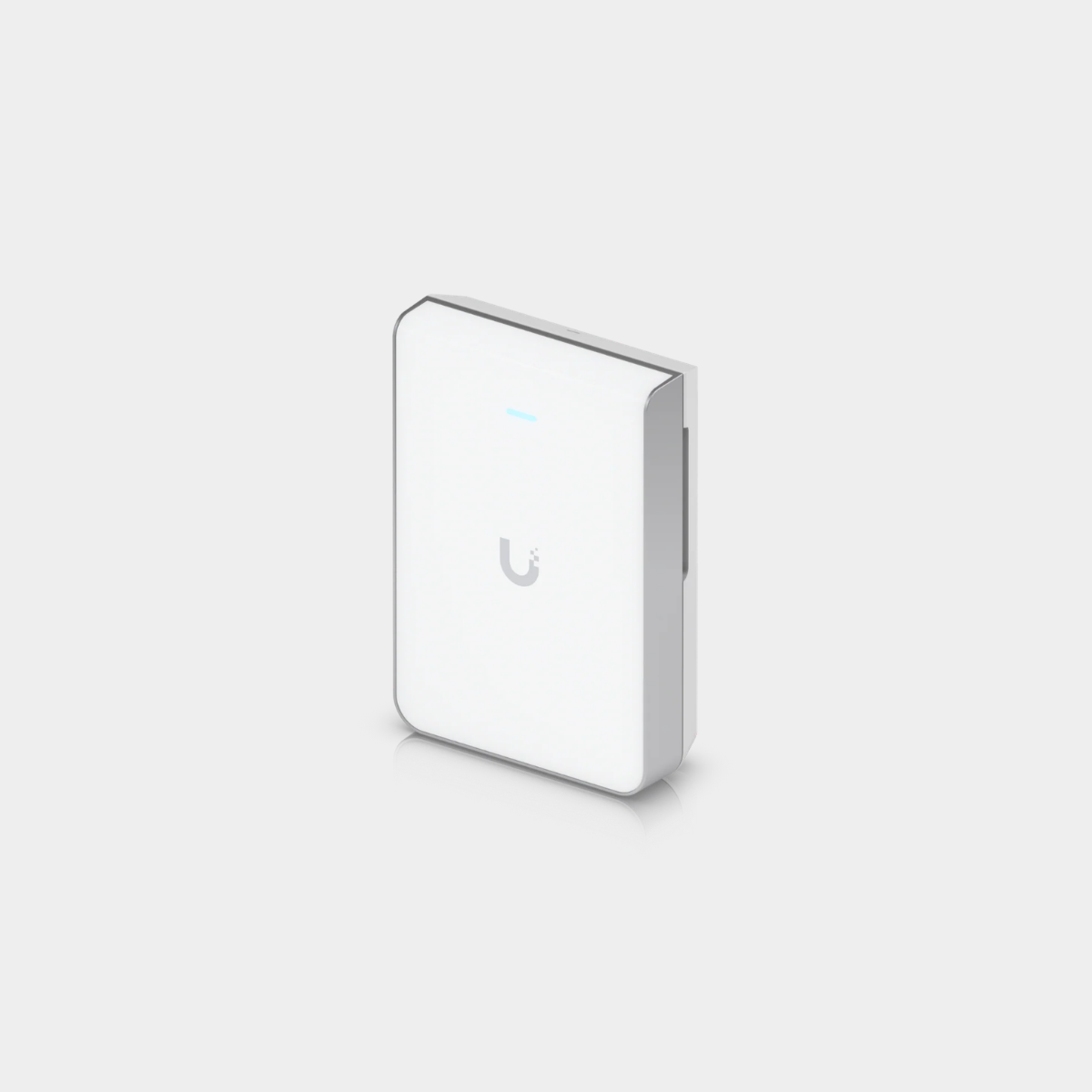

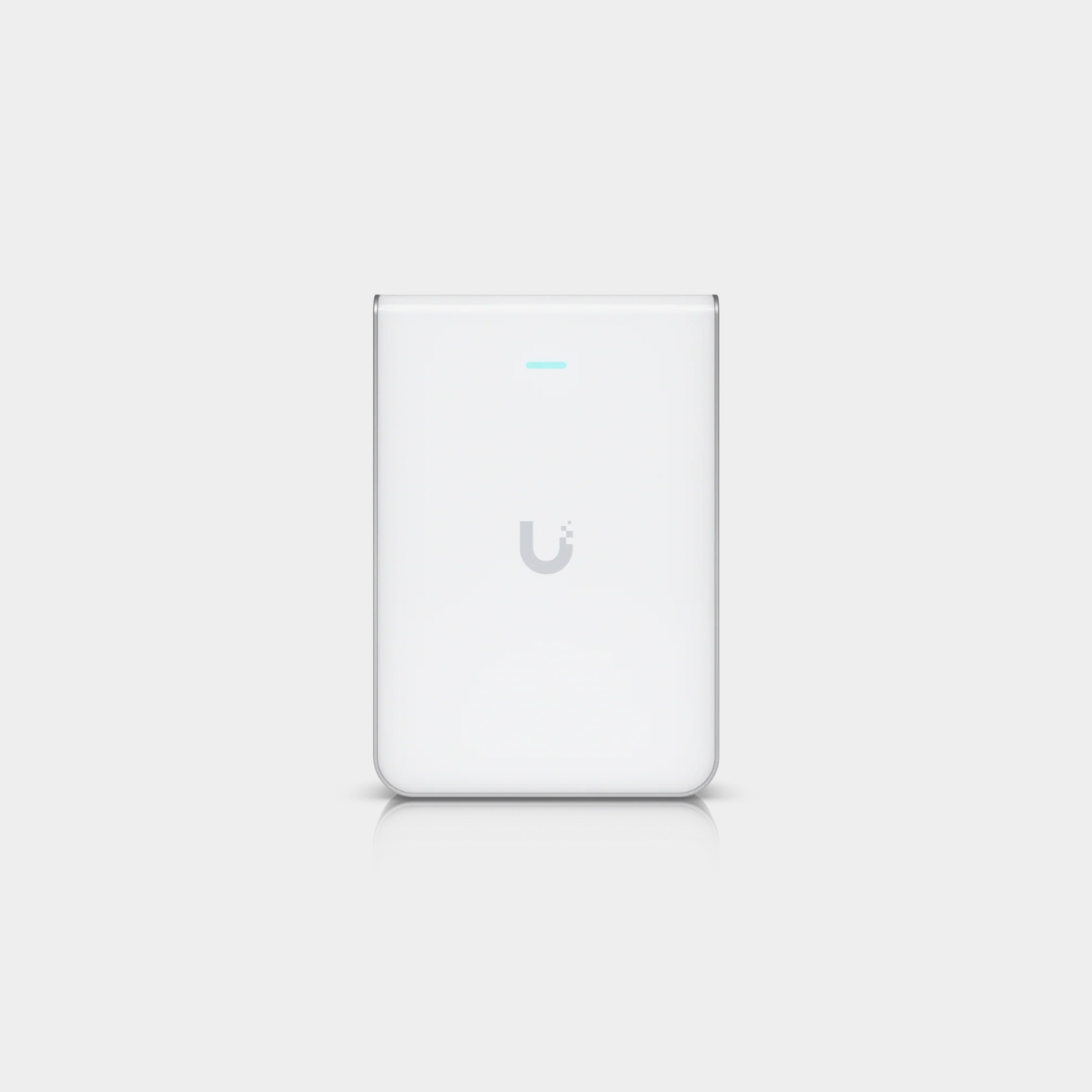

Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.
Features
- WiFi 7 with 6 GHz support
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- Powered using PoE+
Technical Specifications
| Dimensions | 150 x 103 x 36 mm (5.9 x 4.1 x 1.4") |
| Weight | 580 g (1.3 lb) |
| Enclosure material | Polycarbonate, aluminum |
| Mount material | Aluminum |
| Hardware | |

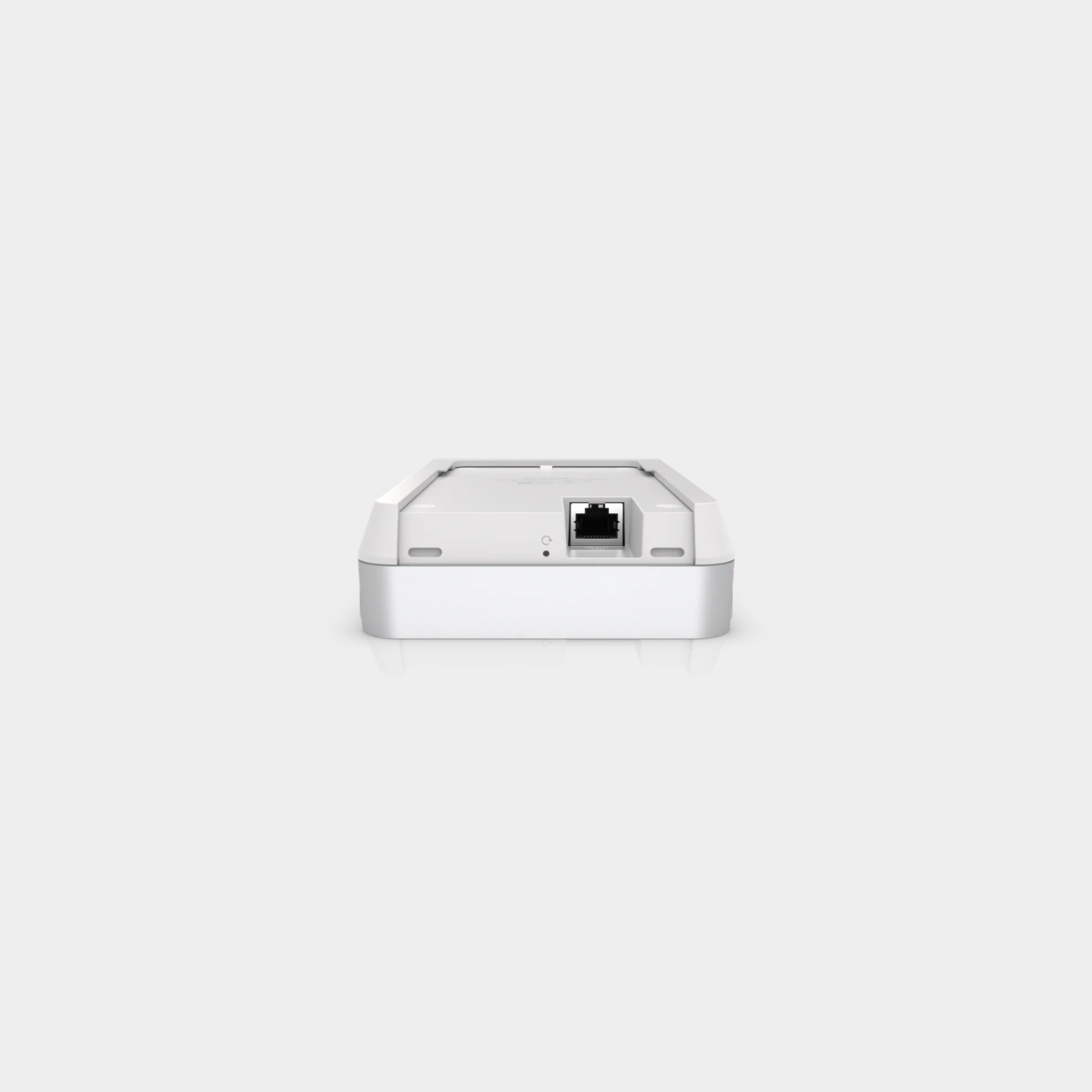

| Networking interface | (1) 1/2.5 GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE+ |
| Power supply | UniFi PoE switch |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 22W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz |
22 dBm 26 dBm 23 dBm |
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 2 x 2 2 x 2 |
| Throughput rate 2.4 GHz 5 GHz 6 GHz |
688 Mbps 4324 Mbps 5764 Mbps |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
4 dBi 5 dBi 6 dBi |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall (Included) Table stand, flush mount (Optional) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax/be |
| Wireless security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
|
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
|
Supported Data Rates
|
|
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
|
| 802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
|
| 802.11ax (WiFi 6/6E) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
|
| 802.11be (WiFi 7) |
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
|
|
Application Requirements
|
|
| UniFi Network | Version 8.1 and later |
| UniFi OS | Version 3.2 and later |
