Technical Specifications
Mechanical

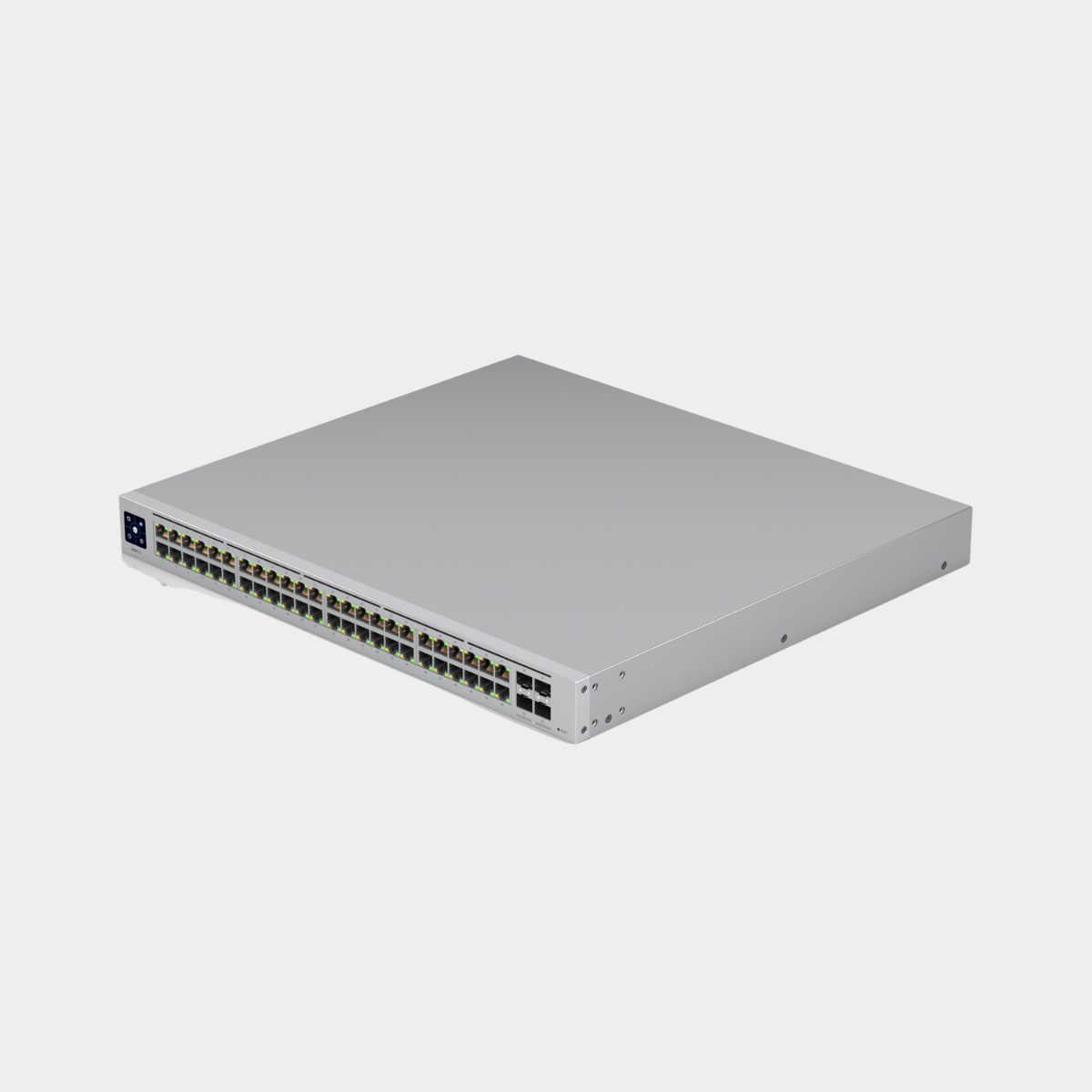

Dimensions 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 4 kg (8.8 lb)
With mounting brackets: 4.1 kg (9 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band

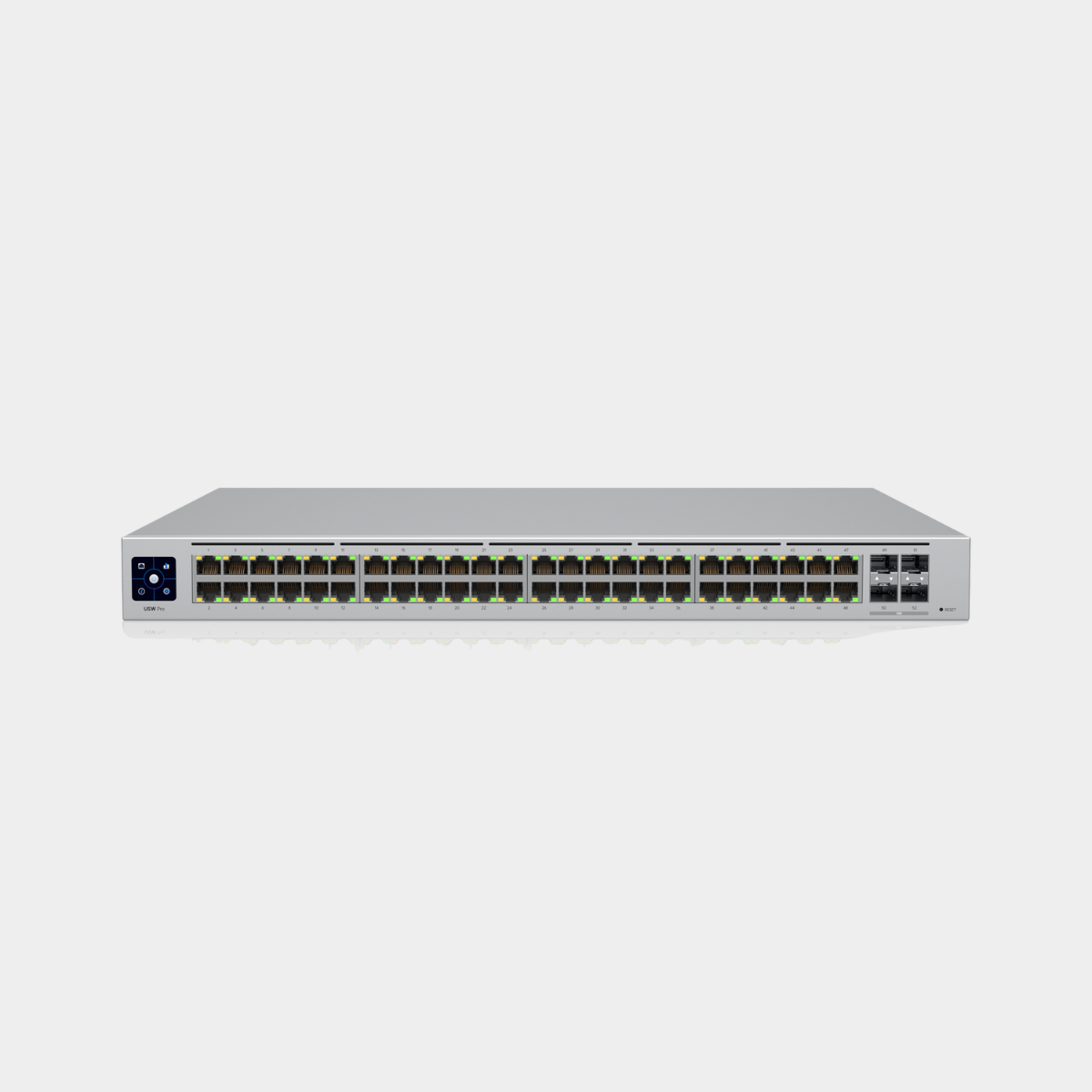

Networking interface (48) GbE RJ45 ports
(4) 1/10G SFP+ ports
Total non-blocking throughput 88 Gbps
Switching capacity 176 Gbps
Forwarding rate 130.944 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz

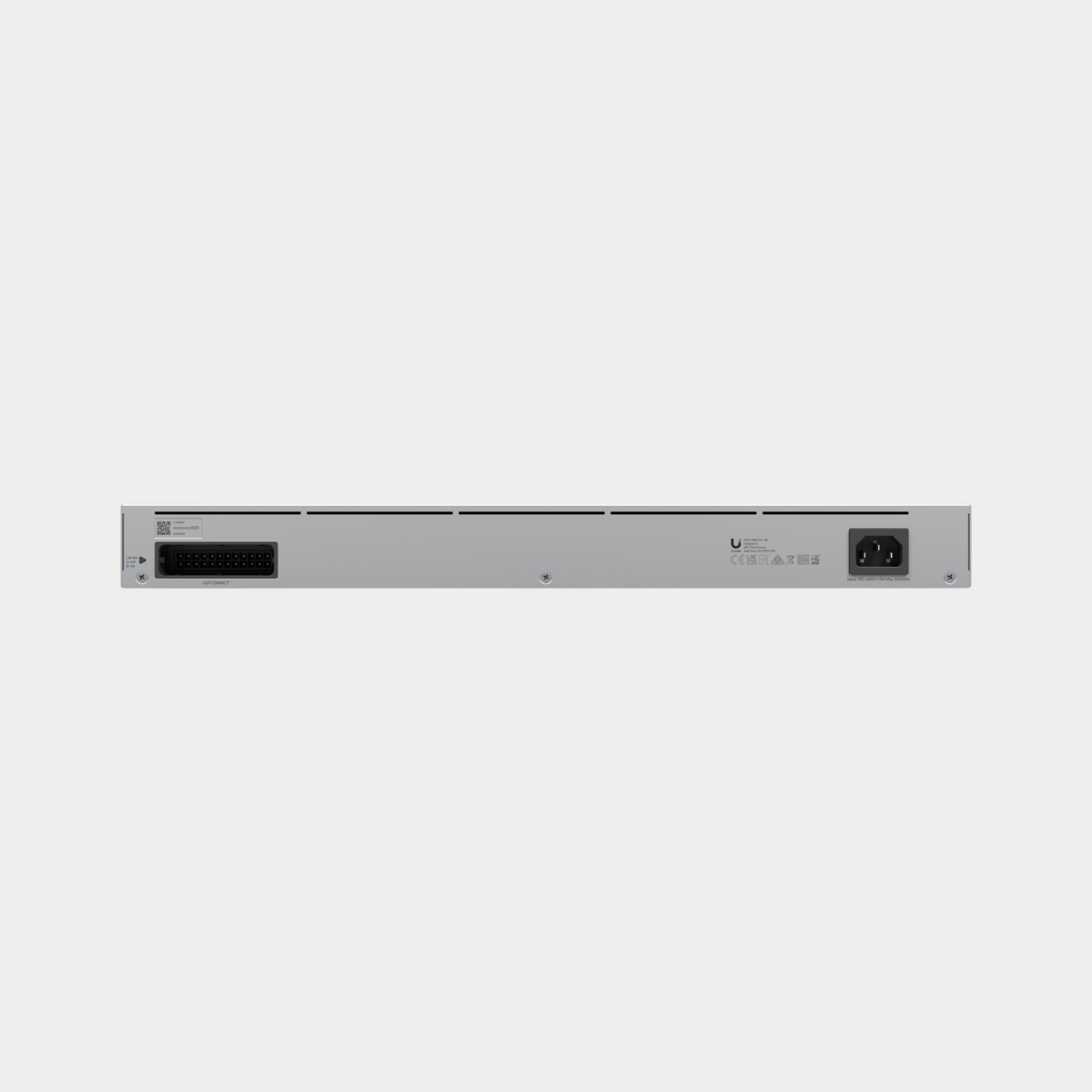

USP RPS DC input, 11.5V DC, 5.22A
Power supply AC/DC, internal, 60W
Supported voltage range 100—240V AC
Max. power consumption 60W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Speed/link/activity
SFP+ Link/activity
RPS Status
Application Requirements
UniFi Network Version 5.12.11 and later
Warranty
7-Day Replacement Warranty
The unit is eligible for a one-time, same-item replacement within seven (7) days from the date of receipt or delivery, subject to the following conditions:
✓ The item must be in its original, unused condition.
✓ All original packaging and accessories must be included.
✓ A valid proof of purchase (receipt) is required.
Note: Physical damage or customer-induced damage is not covered.
