Technical Specifications
✦ Mechanical
Dimensions: 343.2 × 181.2 × 60.2 mm (13.5 × 7.1 × 2.4 in)
Weight: 819 g (1.8 lb)
Enclosure: UV-stabilized polycarbonate

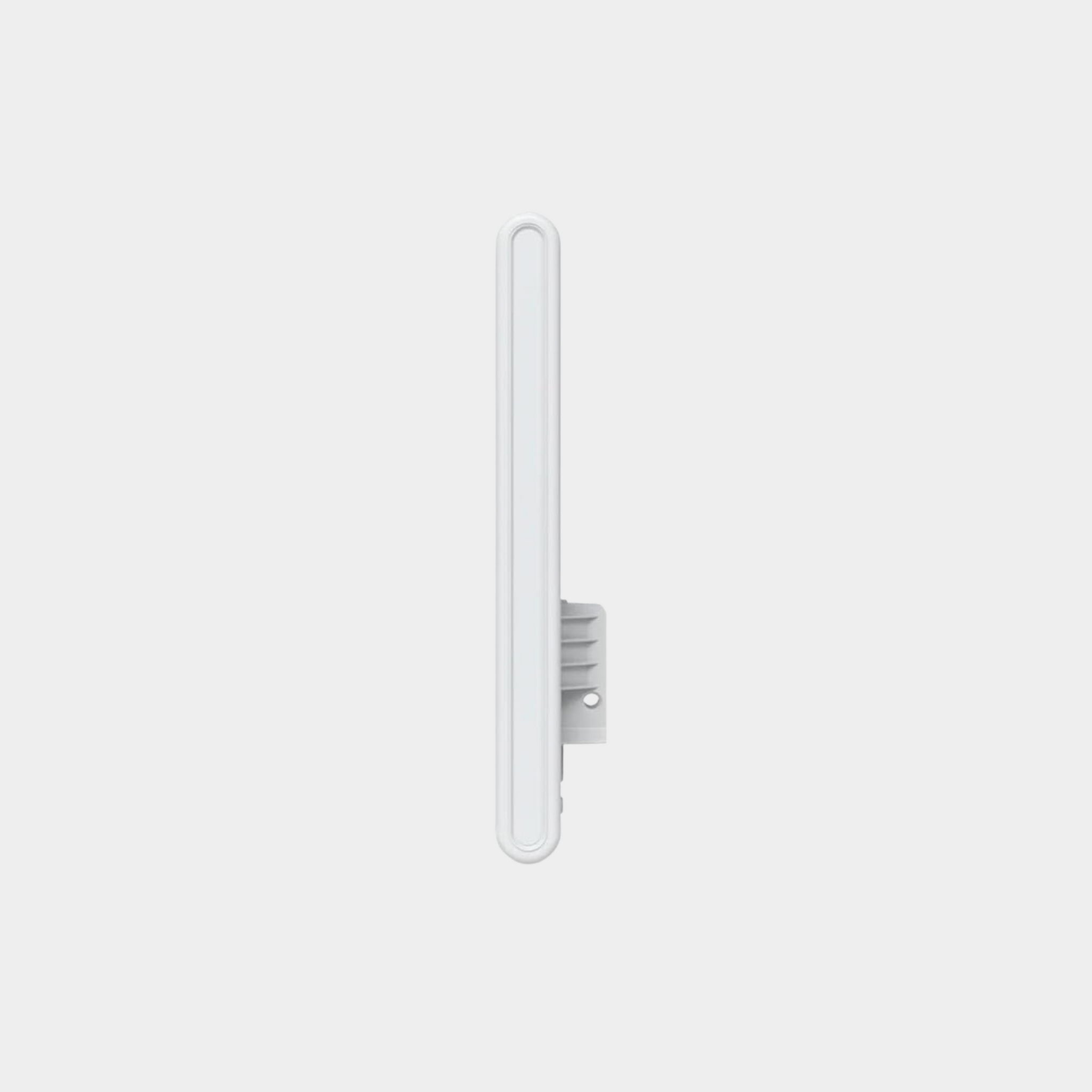

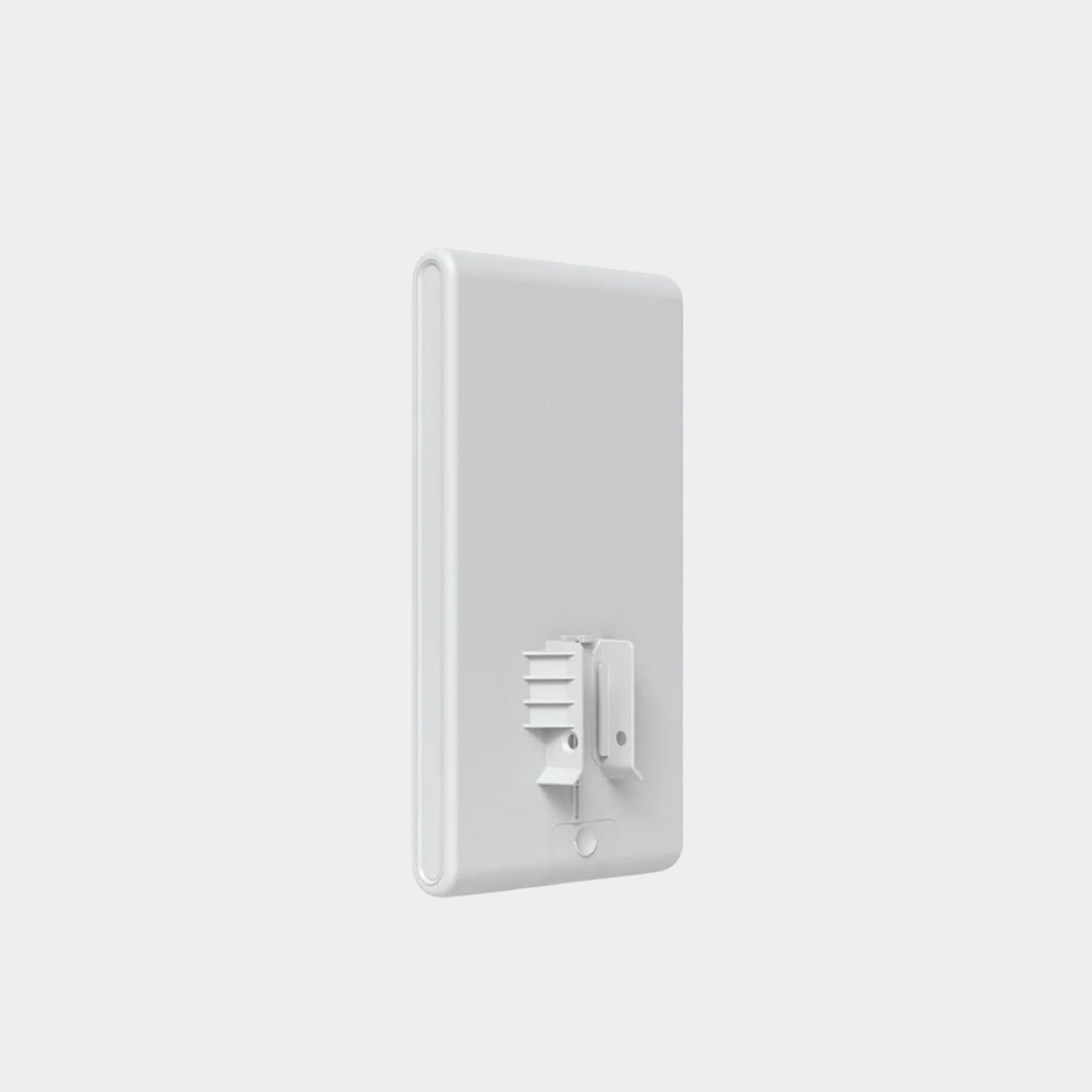

Mounting: Wall or pole mount (hardware included)
✦ Environmental
Weatherproofing: IPX6-rated (outdoor safe)
Operating Temp: –30 °C to 60 °C (–22 °F to 140 °F)
Humidity: 5%–95% non-condensing
✦ Power & Networking
Power Input: PoE (48V, 0.5A)
Max Power Consumption: 9W
Ports:
1× GbE (uplink)
1× GbE passthrough
✦ Wireless
Wi-Fi Standard: 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Bands:
2.4 GHz: up to 573.5 Mbps
5 GHz: up to 2.4 Gbps
Spatial Streams: 4 total (2×2 per band)
MIMO:
2.4 GHz: 2×2 MU-MIMO
5 GHz: 2×2 MU-MIMO
Antenna Gain: 8 dBi (2.4 & 5 GHz)
Max TX Power:
2.4 GHz: 22 dBm
5 GHz: 27 dBm
Coverage Area: ~185 m² (~2,000 ft²)
Max Clients: 250–350+ devices
✦ Security & Management
Encryption: WPA-PSK, WPA2/3-Enterprise
VLAN Support: 802.1Q
Guest Isolation: Supported
Advanced Features:
Wireless meshing
Captive portal / Hotspot 2.0
Band steering
Per-user rate limiting
Client isolation
Wi-Fi scheduling
Radius / Dynamic VLAN
✦ Certifications
Certifications: CE, FCC, IC
Warranty
7-Day Replacement Warranty
The unit is eligible for a one-time, same-item replacement within seven (7) days from the date of receipt or delivery, subject to the following conditions:
✓ The item must be in its original, unused condition.
✓ All original packaging and accessories must be included.
✓ A valid proof of purchase (receipt) is required.
Note: Physical damage or customer-induced damage is not covered.
