Establishes links up to 20 km
Supported speeds: 2.4 Gbps (uplink) / 1.2 Gbps (downlink)

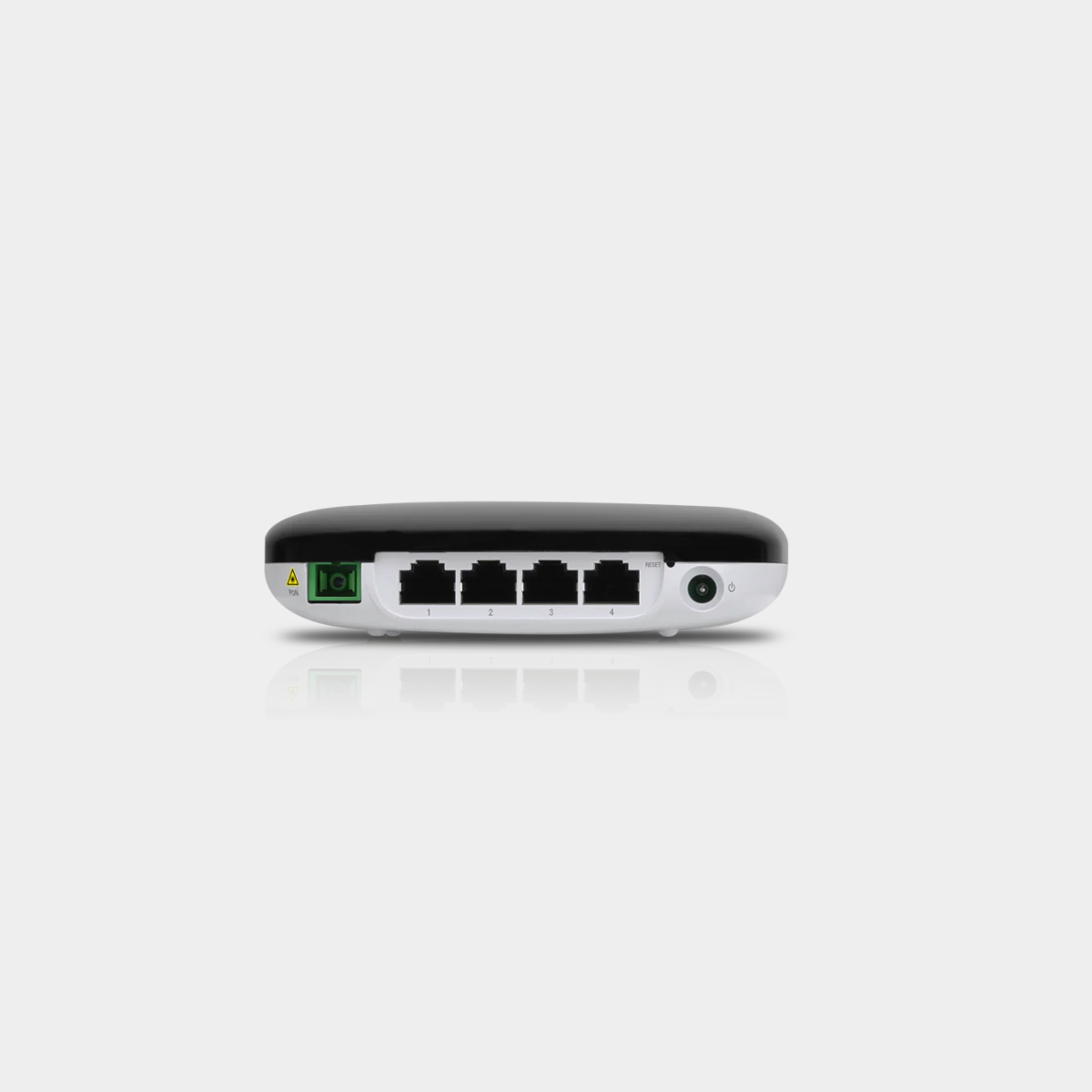

(1) GPON WAN port with an SC/APC optical connector
(4) GbE RJ45 LAN ports
Powered via 5V USB or 24V passive PoE
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25") |
| Weight | 190 g (6.70 oz) |
| Hardware | |
| Networking Interfaces | (1) SC/APC, GPON WAN (4) Gigabit RJ45, Ethernet LAN (1) WiFi, 802.11n |
| Networking Interface Speeds GPON WAN, ITU G.984 LAN WiFi |
2.4 Gbps Down, 1.2 Gbps Up 10/100/1000 Mbps 300 Mbps |
| Management Interface | In-Band Ethernet PON |
| Normal Optical Power Range | TX (Class B+): 1.5 to 5 dBm RX: -28 to -8 dBm |
| Power Method | DC Jack, 24VDC 24V Passive PoE (Pins 4, 5+; 7, 8-) |
| Power Supply | 100-240VAC / 50-60 Hz Universal AC/DC 24V / 0.5A |
| Max. Power Consumption | 7W |
| Supported Voltage Range | 20 to 28V |
| Processor Specs | MIPS, 900 MHz |
| Memory Information | 256 MB DDR |
| Button | (1) Reset |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
