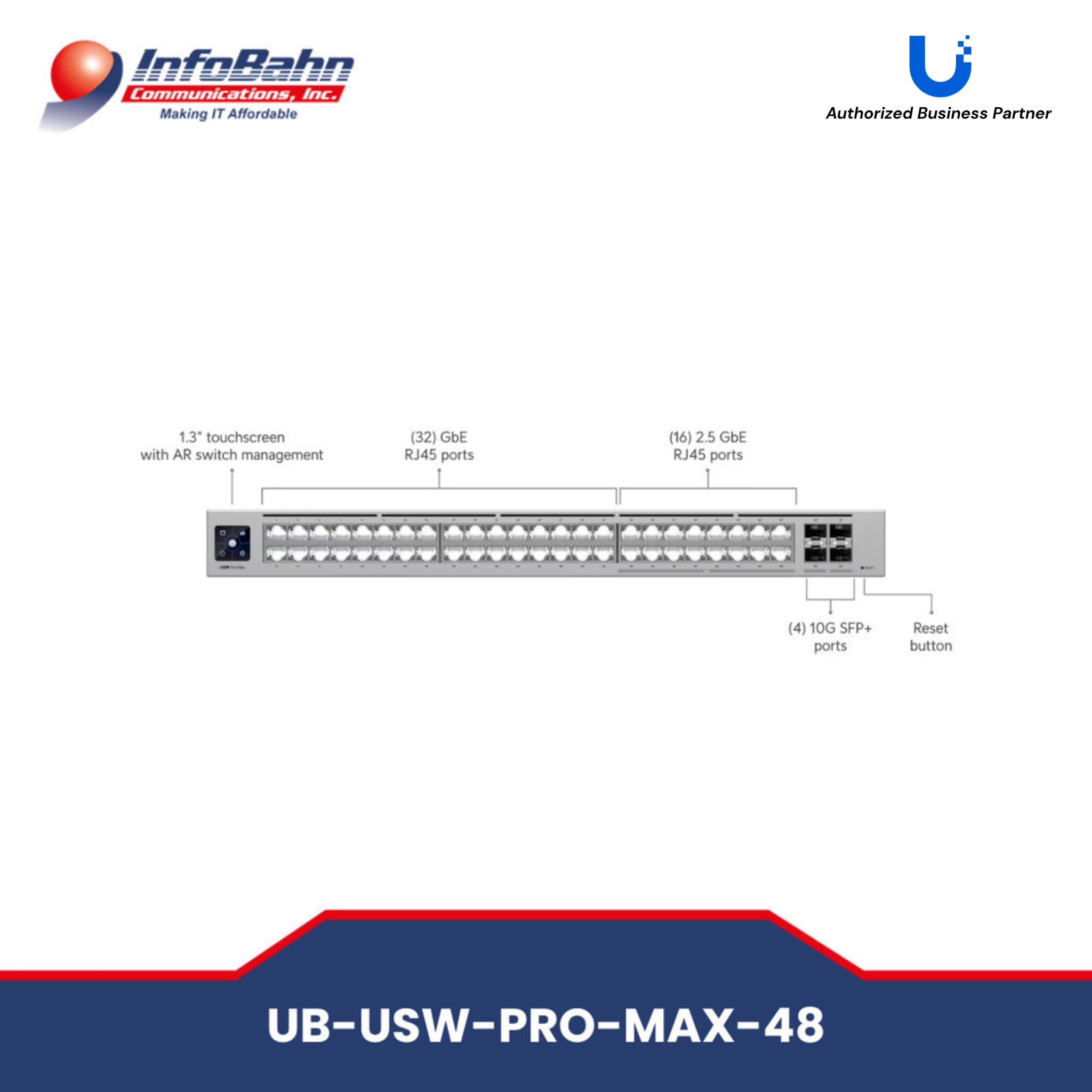

Features
* (16) 2.5 GbE RJ45 ports
* (32) GbE RJ45 ports
* (4) 10G SFP+ ports
* DC power backup ready
* Managed with UniFi Network 8.0.24 and later
Technical Specifications
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight Without mounting brackets: 4.8 kg (10.6 lb)
With mounting brackets: 4.9 kg (10.8 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (32) GbE RJ45 ports
(16) 1/2.5 GbE RJ45 ports
(4) 10G SFP+ ports
Total non-blocking throughput 112 Gbps
Switching capacity 224 Gbps
Forwarding rate 166.656 Mpps

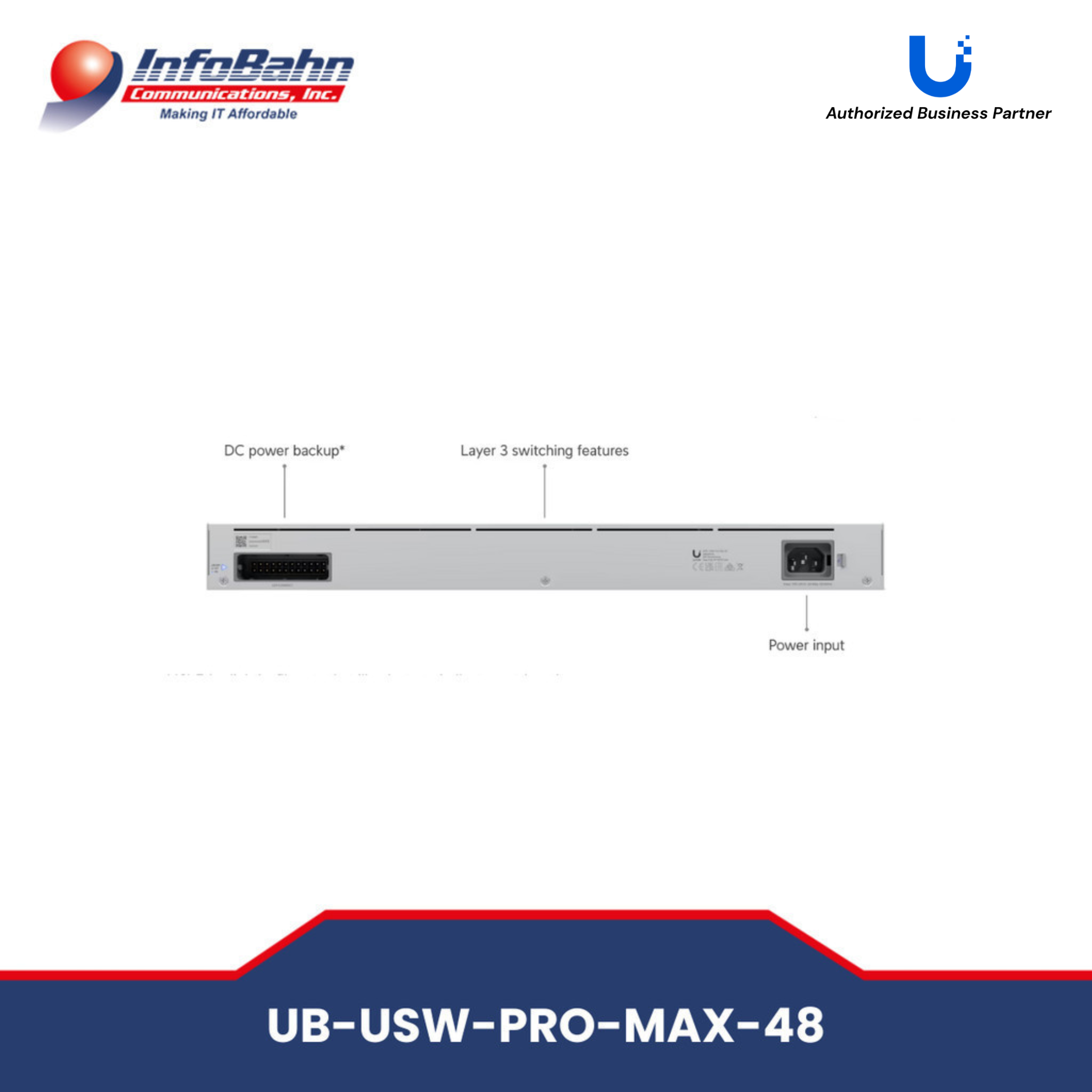

Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply AC/DC, internal, 100W
Supported voltage range 100—240V AC
Max. power consumption 100W
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs

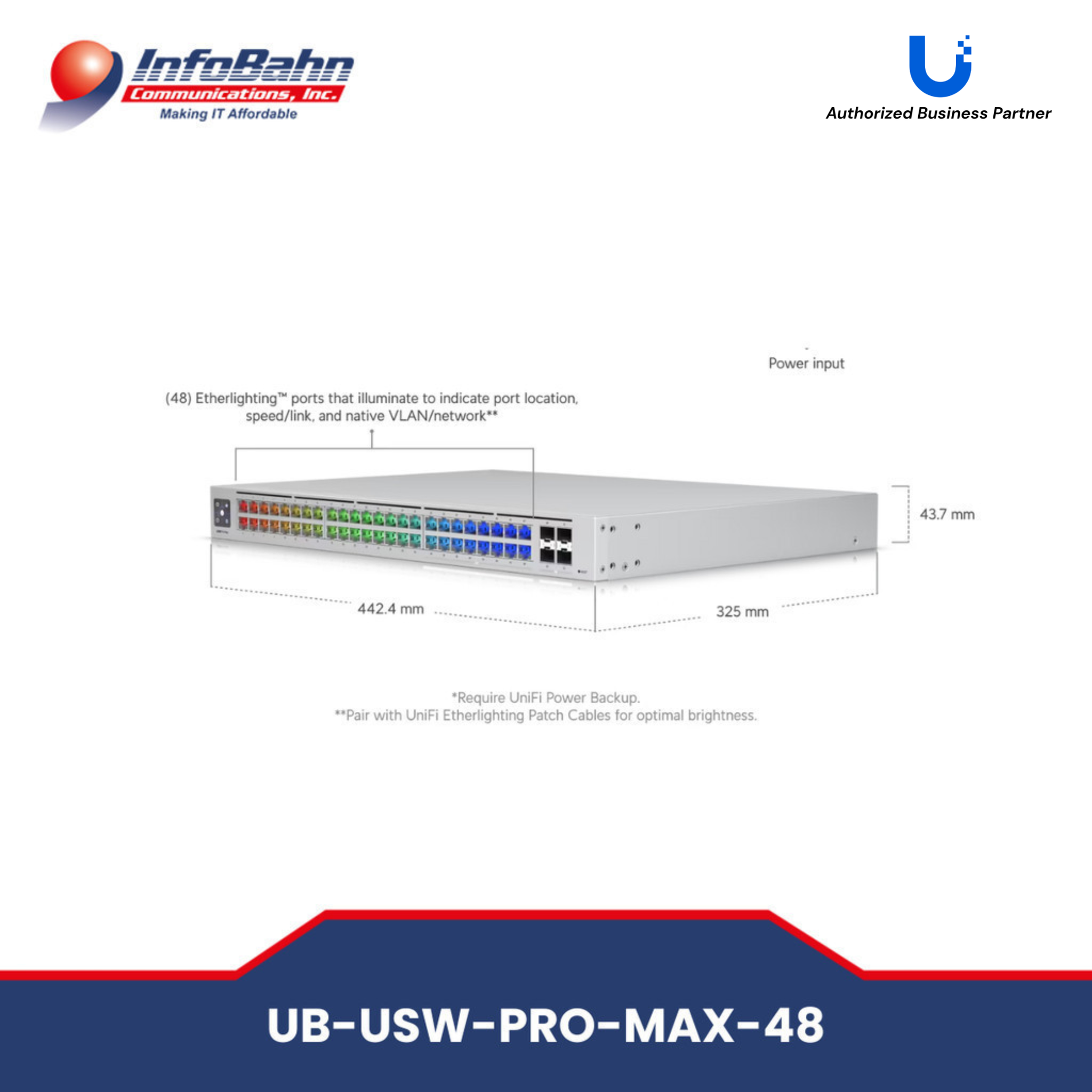

Etherlighting™
Ethernet Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network
LEDs
System Status
RPS Status
Application Requirements
UniFi Network Version 8.0.24 and later
